3500KG Frame Straightening Machine for Professional Collision Repair
As vehicle structures become more complex, modern collision repair workshops require more accurate and efficient body repair equipment. A professional frame straightening machine plays a critical role in restoring damaged vehicle chassis and body structures after accidents. Whether repairing full-frame trucks or uni-body passenger vehicles, reliable pulling force and stable platform support are essential for high-quality repair results.
This heavy-duty four-tower frame straightening machine is engineered for professional automotive body shops, collision centers, and vehicle repair workshops. With a 3500KG working capacity, powerful hydraulic pulling system, and true 360-degree pulling capability, it provides a complete solution for structural repair operations.
Designed for long-term workshop use, this machine combines durability, operational flexibility, and strong pulling performance to meet demanding repair requirements.
Powerful Structural Repair Capability for Modern Vehicles
Vehicle frame damage requires precise correction to restore original body dimensions and driving safety.
Main Technical Specifications
| Item | Specification |
|---|---|
| Tower Configuration | Four Towers |
| Workbench Size (L×W×H) | 5600 × 2200 × 520MM |
| Working Capacity | 3500KG |
| Hydraulic System Pressure | 70Mpa |
| Required Air Pressure | 0.8Mpa |
| Tower Pulling Force | 100KN |
| Pulling Range | 360° |
This frame straightening machine is suitable for:
- Full-frame vehicles
- Uni-body passenger vehicles
- SUVs and pickup trucks
- Light commercial vehicles
- Collision-damaged vehicles
- Chassis structure repair
Its heavy-duty platform design ensures stable operation during high-tension pulling procedures.

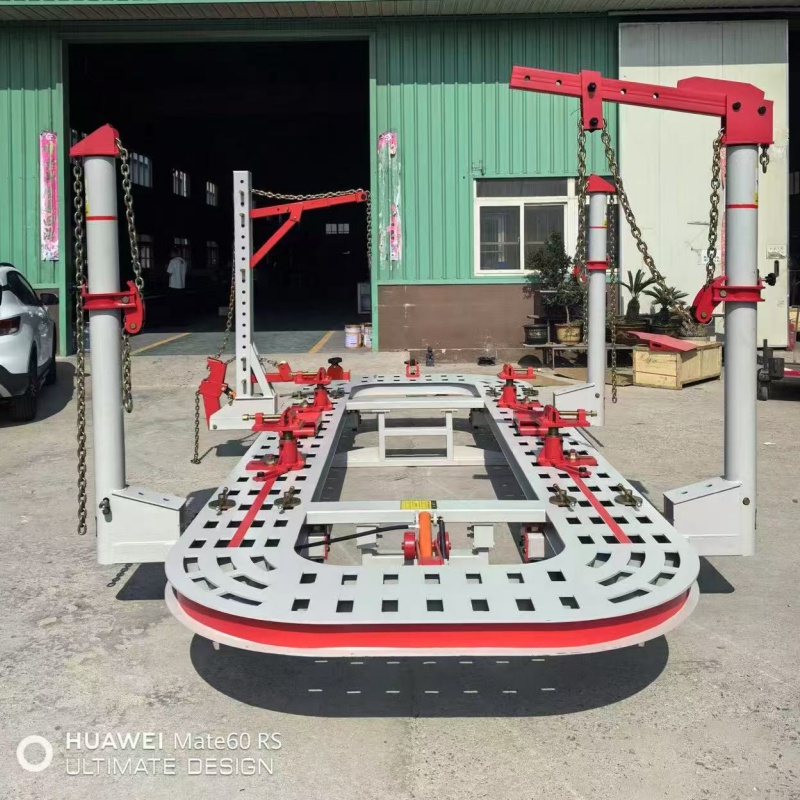

Four-Tower Design Improves Pulling Flexibility
Modern collision repair often requires pulling from multiple directions to restore original body alignment.
The four-tower structure allows technicians to perform repairs more efficiently and accurately.
Advantages of Four-Tower Structure
- Flexible pulling positions
- Better force distribution
- Simultaneous multi-angle repair capability
- Faster body alignment correction
- Higher repair precision
The full 360-degree pulling range allows technicians to adjust pulling direction freely without repositioning the vehicle repeatedly.
This significantly improves repair efficiency in busy collision centers.
100KN Pulling Force Handles Heavy Structural Damage
Severe collision repair requires strong and stable pulling power.
This machine delivers a tower pulling force of 100KN, providing sufficient strength for demanding repair operations.
Suitable Repair Applications
- Bent chassis correction
- Side impact structural repair
- Rear-end collision repair
- Roof deformation correction
- Suspension mounting restoration
- Door frame alignment
High pulling force ensures damaged vehicle structures can be restored more accurately to factory specifications.
3500KG Capacity Supports Multiple Vehicle Types
The tilting workbench platform supports vehicles up to 3500KG, making it suitable for a wide range of automotive repair applications.
Common Vehicle Types Supported
- Sedans
- SUVs
- Pickup trucks
- Vans
- Light-duty commercial vehicles
The heavy-duty deck structure maintains excellent stability during pulling operations, even under high stress conditions.
Universal Anchoring Clamp System Improves Repair Stability
Vehicle fixation is one of the most important aspects of collision repair.
This machine uses a universal anchoring clamp system with adjustable heights to securely hold different vehicle chassis structures.
Clamping System Benefits
- Strong vehicle fixation
- Adjustable height positioning
- Improved pulling accuracy
- Better compatibility with different models
- Reduced vehicle movement during repairs
Stable anchoring allows technicians to apply pulling force more precisely and safely.
Hydraulic System Provides Smooth and Controlled Operation
The machine is equipped with a 70Mpa hydraulic system, ensuring stable and reliable pulling performance.
Hydraulic System Advantages
- Smooth pulling operation
- Stable pressure output
- Reduced vibration during repairs
- Better repair precision
- Long-term durability
The dual 10-ton hydraulic towers provide sufficient power for complex collision repair jobs.
Air Hydraulic Foot Pumps Improve Workshop Efficiency
This frame straightening machine includes two air hydraulic foot-operated pumps, allowing technicians to control operations more conveniently.
Operational Benefits
- Hands-free hydraulic control
- Easier pulling adjustment
- Improved repair efficiency
- Reduced operator fatigue
- Faster workflow during multi-step repairs
This setup helps technicians focus more directly on vehicle alignment and measurement accuracy.
Clear Floor Design Enhances Technician Movement
A clean and open workspace improves both safety and productivity.
Clear Floor Advantages
- Easier technician movement
- Better access around vehicle
- Simplified tool positioning
- Safer workshop environment
- Improved operational flexibility
The open floor layout is especially useful during complex multi-direction pulling operations.
Durable Powder-Coated Surface for Long-Term Use
Collision repair equipment operates under demanding workshop conditions every day.
This frame machine features a durable powder-coated surface finish designed for long-term industrial use.
Durability Features
- Corrosion resistance
- Wear resistance
- Easier cleaning
- Better workshop appearance
- Long equipment lifespan
For professional repair shops, durable equipment helps reduce maintenance costs and downtime.
Unique Drive-On Ramp Design Simplifies Vehicle Loading
Vehicle positioning efficiency directly affects workshop productivity.
This machine includes unique drive-on ramps that simplify vehicle loading and unloading procedures.
Ramp Design Benefits
- Faster vehicle positioning
- Reduced technician effort
- Improved workshop workflow
- Easier damaged vehicle loading
- Better daily operating efficiency
This becomes especially valuable in high-volume collision repair centers.
Complete Tool Board Supports Daily Repair Operations
Efficient repair work requires organized tools and accessories.
The included complete tool board helps technicians manage repair tools more efficiently.
Workshop Benefits
- Improved organization
- Faster tool access
- Cleaner work environment
- Better repair workflow
- Increased technician productivity
Small operational details like tool organization can significantly improve daily repair efficiency.
Widely Used in Automotive Collision Repair Industry
This heavy-duty frame straightening machine is widely used in:
Collision Repair Centers
Structural accident repair and chassis restoration.
Automotive Body Shops
Vehicle frame alignment and body correction.
Insurance Repair Facilities
Accident-damaged vehicle restoration.
Fleet Maintenance Workshops
Commercial vehicle body repair and maintenance.
Professional Vehicle Restoration Shops
Classic car frame restoration and structural rebuilding.
Its versatility makes it suitable for both independent repair shops and large automotive service centers.
Why Professional Body Shops Need Advanced Frame Repair Equipment
As vehicle safety standards continue to improve, body repair accuracy becomes more important than ever.
Professional frame straightening equipment helps workshops:
- Improve repair precision
- Reduce repair time
- Increase technician efficiency
- Handle more complex collision damage
- Improve customer satisfaction
- Meet insurance repair standards
Investing in reliable structural repair equipment helps workshops remain competitive in the modern automotive repair market.
A professional 3500KG frame straightening machine is essential equipment for modern collision repair workshops.
With:
- Four-tower pulling system
- 100KN pulling force
- 360-degree repair capability
- Heavy-duty hydraulic structure
- Universal anchoring clamps
- Durable industrial construction
this machine provides a complete solution for accurate and efficient vehicle structural repair.
For body shops aiming to improve repair quality, workshop efficiency, and long-term operational reliability, this frame straightening machine delivers strong performance and dependable value.
FAQ
1. What types of vehicles can this frame machine repair?
It is suitable for full-frame vehicles, uni-body cars, SUVs, pickup trucks, vans, and light commercial vehicles.
2. What is the maximum working capacity?
The machine supports vehicles up to 3500KG.
3. How much pulling force does the tower provide?
Each tower delivers up to 100KN pulling force for heavy structural repairs.
4. Can the pulling direction be adjusted freely?
Yes. The machine provides true 360-degree pulling capability for flexible repair operations.
5. Is the machine suitable for high-volume collision repair workshops?
Yes. Its durable structure, hydraulic system, and multi-tower design make it ideal for professional body shops and busy collision centers.
