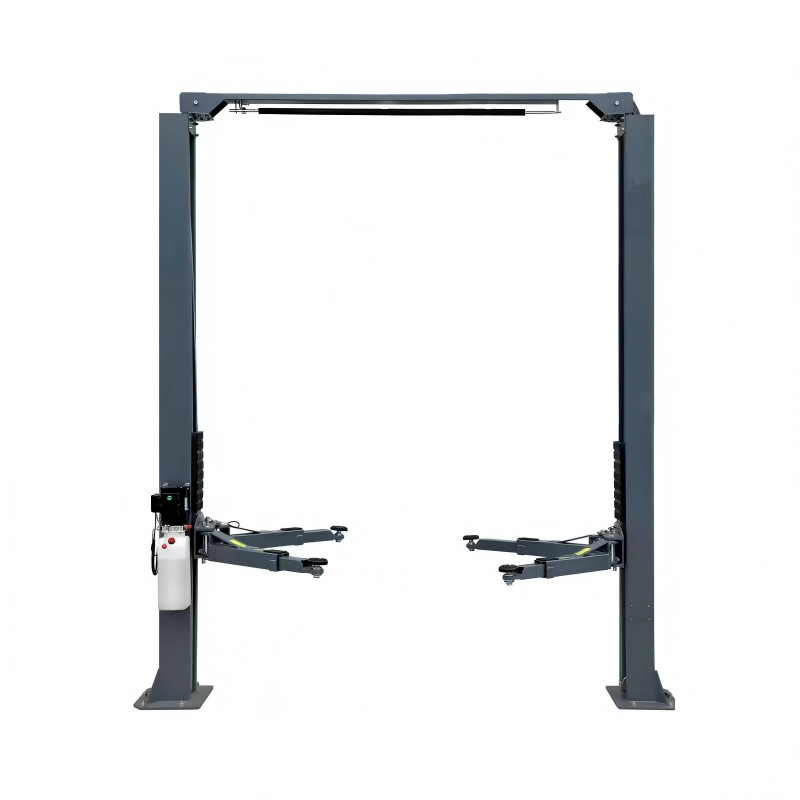

4000KG Gantry Two Post Lift with Top Beam Design for Enhanced Stability

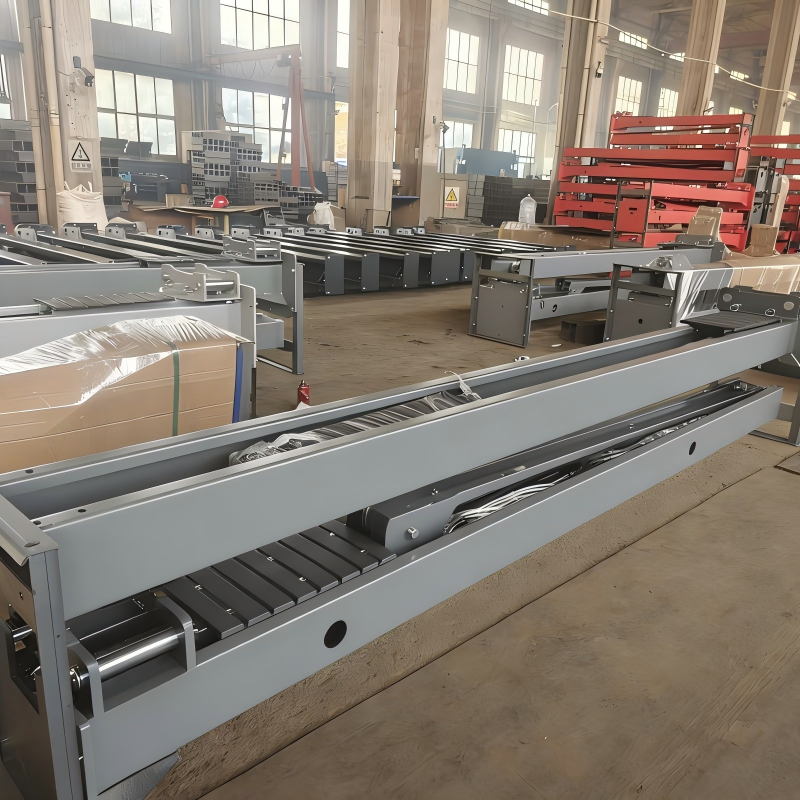

A newly developed double-column gantry lift has been successfully manufactured, offering a stable and efficient lifting solution for modern automotive service workshops. Designed with a reinforced top beam structure and intelligent synchronization system, this lift provides improved safety, adaptability, and performance compared to conventional two-post lifts.

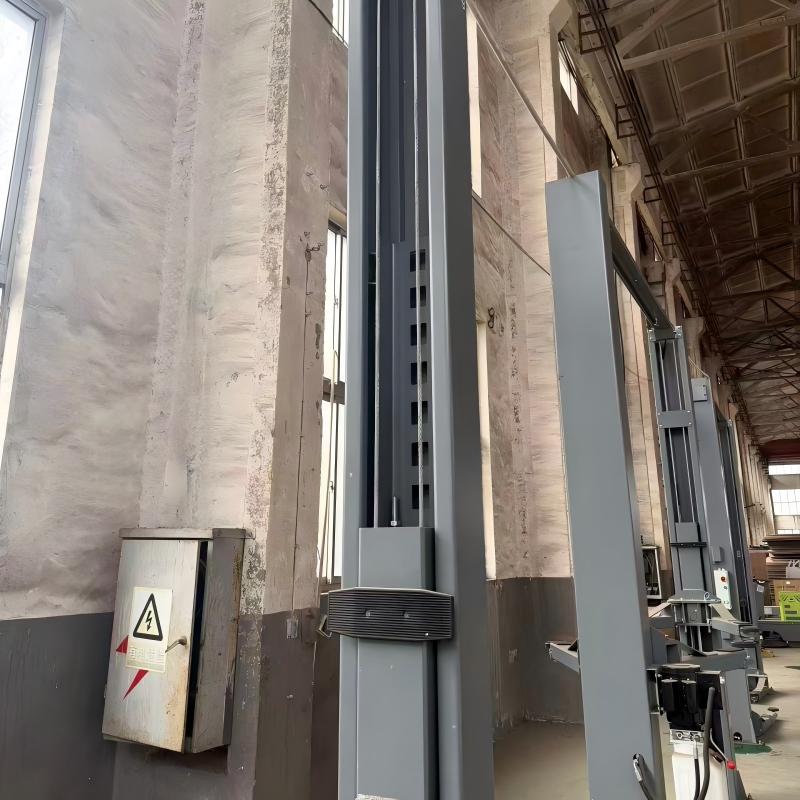

Reinforced Gantry Structure Improves Overall Stability

Unlike standard two-post lifts, this model adopts a gantry (top beam) design, which connects both columns at the top. This structure plays a key role in:

• Reducing column deformation under heavy loads
• Improving synchronization during lifting
• Minimizing dependence on foundation strength

For workshops handling heavier vehicles, this design offers a more reliable lifting experience and better long-term stability.

Strong Lifting Capacity for Diverse Vehicle Types

This gantry lift is engineered to handle a wide range of vehicles with ease.

Main specifications include:

• Lifting Capacity: 4000KG
• Lifting Height: 1850MM
• Minimum Height: 110MM
• Overall Height: 3840MM
• Overall Width: 3380MM
• Width Inside Columns: 2780MM

With this configuration, the lift can accommodate:

• Passenger cars
• SUVs
• Light commercial vehicles

Its strong load-bearing capacity ensures safe and efficient lifting even under demanding workshop conditions.

Adjustable Support Arms for Better Vehicle Compatibility

One of the standout features of this lift is its multi-section adjustable arm system, designed to fit different vehicle sizes and chassis structures.

Key features include:

• Three-section telescopic arms
• Spiral adjustable support pads (110–240mm range)
• Flexible positioning for various wheelbases

This adaptability allows technicians to safely lift vehicles ranging from low-profile cars to larger SUVs without compromising balance.

Intelligent Synchronization System for Smooth Operation

To ensure precise lifting performance, the lift is equipped with an intelligent control system.

Core components include:

• Microcomputer-based control unit
• High-precision displacement sensors
• Independent dual-column control system

These features enable:

• Real-time synchronization between columns
• Smooth lifting and lowering
• Reduced mechanical stress

This results in more stable operation and improved safety during daily use.

Electric Lock Release System Enhances Safety

Safety is further reinforced with an electric point lock release system, which simplifies operation while maintaining secure locking.

Advantages include:

• Automatic locking during lifting
• Controlled release mechanism
• Reduced manual intervention

This system helps prevent accidental lowering and ensures a safer working environment for technicians.

Compact Design with Efficient Space Utilization

Despite its gantry structure, the lift maintains a relatively compact footprint, making it suitable for workshops with limited space.

Benefits include:

• Efficient use of vertical space
• Clear working area beneath the vehicle
• Easy integration into existing workshop layouts

This balance between structure and space efficiency makes it a practical solution for growing service centers.

Single-Phase Power for Easy Installation

The lift operates on:

• 110V / 60Hz / Single-phase power

This makes installation more convenient, especially in facilities where industrial three-phase power is not available.

It reduces setup complexity while still delivering reliable performance.

Built for Long-Term Durability

The entire structure is manufactured using high-strength steel components, ensuring durability under frequent operation.

Combined with its reinforced gantry beam and precision control system, the lift is designed to:

• Withstand continuous use
• Maintain structural integrity over time
• Reduce maintenance frequency

This makes it a cost-effective investment for workshops focused on long-term efficiency.

Suitable for Multiple Workshop Applications

This double-column gantry lift is widely used in:

• Automotive repair shops
• Fleet maintenance centers
• Tire and service workshops
• Vehicle inspection stations

Its flexibility and stability make it ideal for both routine maintenance and more demanding repair tasks.

Improving Workshop Productivity and Safety

By combining structural reinforcement, intelligent control, and flexible adjustment, this lift helps workshops:

• Increase service efficiency
• Improve technician safety
• Handle a wider range of vehicles
• Reduce downtime

These advantages are essential for businesses aiming to scale operations and improve service quality.

The 4000KG gantry two post lift represents a significant upgrade over traditional lifting solutions. With its top beam structure, intelligent synchronization, and adaptable arm system, it delivers both stability and flexibility in daily operations.

For workshops seeking a reliable and space-efficient lifting solution, this model provides a strong balance between performance, safety, and ease of use.

FAQ

1. What is the advantage of a gantry (top beam) design?
It improves structural stability, reduces column stress, and ensures better synchronization during lifting.

2. What types of vehicles can this lift handle?
It supports sedans, SUVs, and light commercial vehicles with a lifting capacity of up to 4000KG.

3. Is the lift suitable for small workshops?
Yes, its compact design allows efficient use of space while maintaining strong lifting performance.

4. How does the synchronization system work?
It uses sensors and a microcomputer controller to keep both columns moving evenly and safely.

5. Does it require special power installation?
No, it operates on standard 110V single-phase power, making installation simple and convenient.
