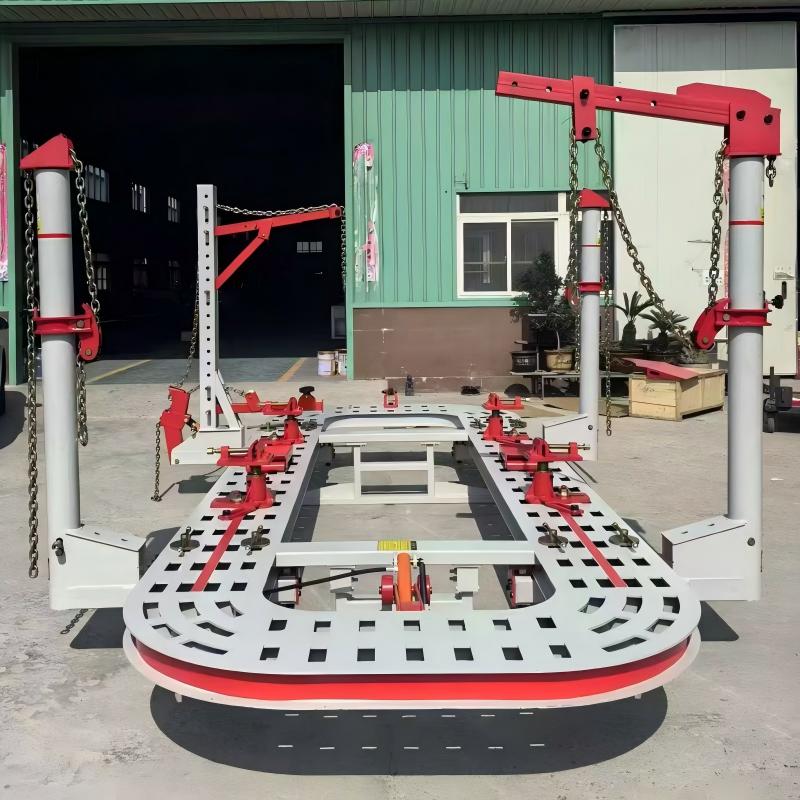

360°Auto Body Frame Machine 3500kg Hydraulic Collision Repair Bench for Full Vehicle Alignment

In modern collision repair, precision is no longer optional because vehicle structures are lighter, stronger, and more complex than ever before. A 360° auto body frame machine allows you to restore damaged frames with controlled hydraulic force, improving alignment accuracy while reducing repair time in professional body shop environments.

Why 360° frame straightening matters in real collision repair work

When you deal with accident-damaged vehicles, structural distortion rarely happens in a single direction. Most real-world cases involve multiple impact points, twisted chassis geometry, and uneven force distribution across the frame. This is where a traditional fixed-direction pulling system becomes limiting.

With a 360° rotating pulling structure, you are not locked into one working angle. Instead, you can reposition the pulling towers around the vehicle and correct deformation from the most effective direction. In daily workshop operations, this flexibility directly affects both repair quality and efficiency.

For example, when working on modern SUVs or unibody sedans, you often need to correct diagonal pulling distortion, side-impact compression, and floor pan misalignment in one continuous workflow. A 360° system allows you to complete these corrections without repeatedly moving the vehicle, which reduces setup interruptions and keeps measurement references stable.

In practical terms, this means fewer alignment errors, faster workflow transitions, and more consistent structural restoration results.

Technical configuration designed for heavy-duty workshop use

This hydraulic auto body frame machine is built for professional collision repair environments where stability, force consistency, and long-term durability are critical.

It is engineered with a 5600 mm long workbench, 2200 mm width, and a low-profile 520 mm height, giving technicians enough working space for large passenger vehicles and light commercial vehicles. The system supports a maximum working load of 3500 kg, which makes it suitable for most mainstream automotive repair applications in the USA market.

The hydraulic system operates at 70 MPa pressure, ensuring strong and stable force output during long-duration pulling operations. Combined with a 100 kN tower pulling force, the machine can handle both moderate and severe frame deformation cases without performance instability.

In addition, the system requires a 0.8 MPa air pressure supply, which is standard in most industrial auto body shops. This ensures smooth integration without requiring major infrastructure upgrades.

Structural design built for accuracy and long-term durability

In collision repair, structural stability directly determines whether the final alignment is accurate or not. This equipment is designed with a reinforced steel frame platform that supports heavy loads while maintaining consistent leveling across the working surface.

The uni-body and full-frame compatibility allows you to handle different vehicle types without changing the base setup. Adjustable anchoring clamps give you flexibility to secure vehicles at different chassis heights, which is especially important when working with mixed vehicle conditions such as SUVs, sedans, and light trucks in the same workshop.

The surface is treated with an industrial powder-coated finish, which helps resist corrosion, oil exposure, and daily wear from welding and mechanical operations. This is particularly important in high-frequency repair environments where equipment durability affects long-term operating cost.

Hydraulic and pulling system performance in daily workshop conditions

The hydraulic system is the core of this machine, and its performance determines how smoothly structural correction can be completed.

At 70 MPa working pressure, the hydraulic output remains stable even under continuous load. This is important because frame straightening is rarely a short process; many repairs require gradual force adjustment over extended time periods. A stable hydraulic system reduces sudden pressure fluctuations, which helps maintain control during fine alignment work.

The dual-tower system generates up to 100 kN pulling force, allowing you to handle severe collision damage where metal deformation resistance is high. Because the towers can operate from multiple directions, you can correct complex structural shifts without repositioning the vehicle repeatedly.

In real workshop scenarios, this combination of force and flexibility helps reduce rework rates and improve repeatability across similar repair jobs.

Workflow efficiency improvements in professional body shops

In a busy collision repair center, time efficiency is just as important as repair accuracy. This system is designed to improve workflow from the moment the vehicle enters the workshop until final alignment is completed.

Drive-on ramps allow quick vehicle loading without additional lifting equipment. Once positioned, the clear floor design gives technicians unrestricted movement around the vehicle, which is important when multiple correction points are being worked on simultaneously.

The air-hydraulic foot control system allows hands-free operation, meaning you can adjust pulling force while keeping both hands free for measurement and alignment verification. This improves operational safety and reduces unnecessary interruptions during critical correction stages.

A built-in tool board keeps essential repair tools organized and within reach, which helps reduce downtime caused by searching or repositioning tools during active repair work.

FAQ

What types of vehicles can this frame machine handle
This system is designed for full-frame and uni-body vehicles, including passenger cars, SUVs, and light commercial vehicles. With a 3500 kg load capacity, it covers most mainstream collision repair requirements in modern workshops.

How does the 360° pulling system improve repair accuracy
The 360° rotation allows you to apply force from different directions without repositioning the vehicle. This helps correct complex deformation patterns more accurately and reduces cumulative alignment errors during multi-point repairs.

What kind of workshop setup is required for operation
A stable industrial workshop with a 0.8 MPa compressed air supply is required. The machine is designed for professional environments and integrates easily into existing collision repair lines without major modifications.

Is the hydraulic system stable for long repair cycles
Yes, the 70 MPa hydraulic system is designed for continuous operation. It maintains consistent force output during long-duration pulling, which is essential for precise structural correction work.

Conclusion

A 360° auto body frame machine provides a practical solution for modern collision repair environments where vehicles require precise structural restoration rather than basic straight-line correction. With a 3500 kg load capacity, 70 MPa hydraulic system, and 100 kN dual-tower pulling force, this equipment is built to handle real workshop conditions with stability and control.

For professional body shops, the real value comes from improved workflow efficiency, reduced setup time, and higher alignment accuracy across different vehicle types. In daily operations, this translates into more consistent repair quality and better long-term productivity without increasing operational complexity.
