Can a 4000kg Two Post Car Lift Handle SUVs and Light Trucks?

A reliable vehicle lift should give you more than rated capacity. It must accommodate different wheelbases, keep both columns synchronized, provide stable support under changing loads, and fit your workshop’s electrical conditions. This 4000kg two post car lift was exported to the USA with a 110V single-phase configuration for professional vehicle maintenance.

A 4000kg two post car lift is a hydraulic workshop lifting system designed to raise passenger cars, SUVs, vans, and selected light commercial vehicles by their approved chassis lifting points. The vehicle is supported by adjustable arms rather than long drive-on runways, leaving the wheels, suspension, chassis, exhaust system, and lower powertrain accessible.

For your workshop, this structure provides an important advantage: you can complete several repair operations on one service bay without placing large platforms beneath the entire vehicle.

The supplied model has a rated lifting capacity of 4000kg, a maximum lifting height of 1200mm, a lifting time of approximately 30 to 50 seconds, and a 2.2kW motor. The electrical configuration selected for the USA shipment was optional 110V, 60Hz, single-phase power.

Its supporting sections measure 1200mm in length and 520mm in width according to the supplied project specification. These dimensions should be confirmed against the final machine drawing because the usable lifting area, arm reach, and vehicle contact position determine which vehicles can be handled safely.

A two post vehicle lift with adjustable arms is commonly used for tire service, brake repair, suspension inspection, oil changes, chassis maintenance, exhaust repair, and general automotive servicing.

A 4000kg Capacity Supports a Practical Vehicle Range

The rated lifting capacity is one of the first specifications you should check, but it should not be the only factor in your purchasing decision.

A 4000kg automotive two post lift can accommodate many compact cars, sedans, crossovers, SUVs, vans, and selected light commercial vehicles. However, the actual suitability of a vehicle also depends on its curb weight, center of gravity, axle load distribution, wheelbase, chassis structure, and approved lifting points.

You should never select a vehicle lift only because the total vehicle weight is below the stated capacity. A long vehicle with uneven front-to-rear weight distribution may create different loading conditions from a shorter passenger car of the same weight.

Before lifting an SUV, electric vehicle, commercial van, or light truck, you should verify:

• The vehicle’s actual service weight is within the lift rating

• The adjustable arms can reach all approved lifting points

• The lifting pads make full and stable contact

• The front-to-rear weight distribution remains within permitted limits

The supplied product range may include standard models rated between four and five tonnes, while specialized configurations may exceed five tonnes. These higher-capacity versions should be treated as separate models with their own structural drawings, arm dimensions, foundation requirements, and safety documentation. A 4000kg model should not be presented or operated as a five-tonne lift unless the exact machine has been tested and rated for that load.

Multi-Section Arms Improve Compatibility with Different Wheelbases

Vehicle service shops rarely handle only one body style. During the same working day, you may need to lift a low sedan, a family SUV, a commercial van, and a vehicle with a longer wheelbase.

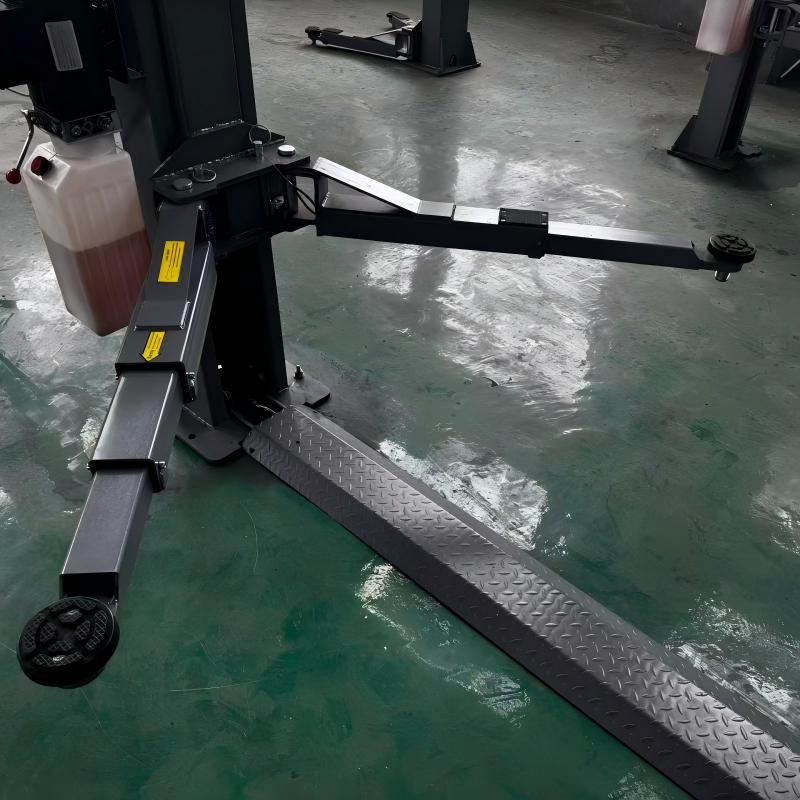

This two post car lift uses multi-section adjustable support arms to increase positioning flexibility. The three-section arm structure allows the contact points to extend or retract according to the vehicle’s wheelbase and chassis layout.

Spiral telescopic support pads provide an adjustment range of approximately 110 to 240mm. This height adjustment helps compensate for differences in ground clearance and lifting-point position.

For low-body vehicles, the pads can be lowered to reduce the required approach clearance. For SUVs and vehicles with higher chassis lifting points, they can be extended to establish stable contact without relying on unsuitable blocks or improvised supports.

The adjustable arm arrangement makes the lift more useful for mixed vehicle workshops. It can reduce the need to dedicate different service bays to different vehicle categories, provided every vehicle is positioned according to the operating manual.

The arm restraints, pad threads, locking components, welds, and pivot pins should be inspected regularly. Adjustable parts experience repeated movement and load transfer, so wear in these areas can directly affect lifting stability.

Gantry Construction Helps Control Column Movement

When a vehicle is raised, the columns carry vertical loads as well as bending and torsional forces. The structural design connecting the columns therefore plays an important role in overall stability.

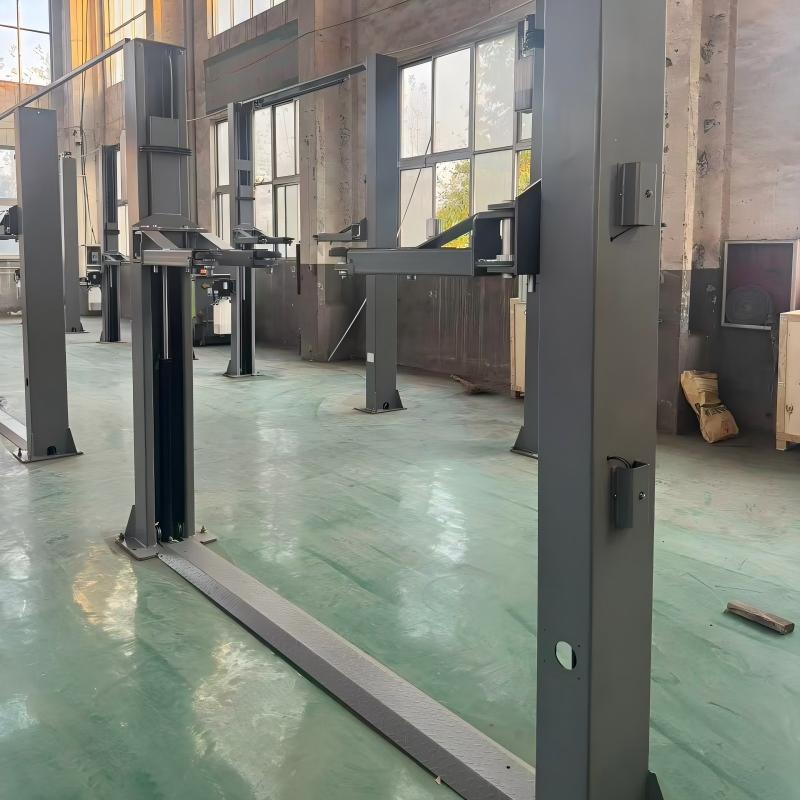

This model uses a dual-column structure with an upper gantry beam. The top crossbeam connects the columns and helps reduce independent column movement during lifting. It can also help control structural torsion when the lift handles heavier vehicles within its rated capacity.

Compared with an open-top configuration, a gantry-style two post car lift provides overhead structural connection between the columns. This design is often selected for workshops that prioritize column rigidity and synchronized movement.

However, the top beam does not remove the need for a suitable concrete foundation. The phrase “reduced reliance on the foundation” should not be interpreted as permission to install the machine on weak, damaged, thin, or unverified concrete.

Before installation, you should confirm the required concrete thickness, concrete strength, curing condition, anchor specification, edge distance, floor level, ceiling height, and permitted installation area.

The final foundation requirements must come from the manufacturer’s installation drawing for the exact model. Using generic anchor details from another lift can create serious installation risks.

Intelligent Synchronization Supports Level Lifting

A two post car lift must raise both sides at a consistent rate. Excessive height difference between the columns can tilt the vehicle, increase structural stress, and make technicians uncomfortable working around the lift.

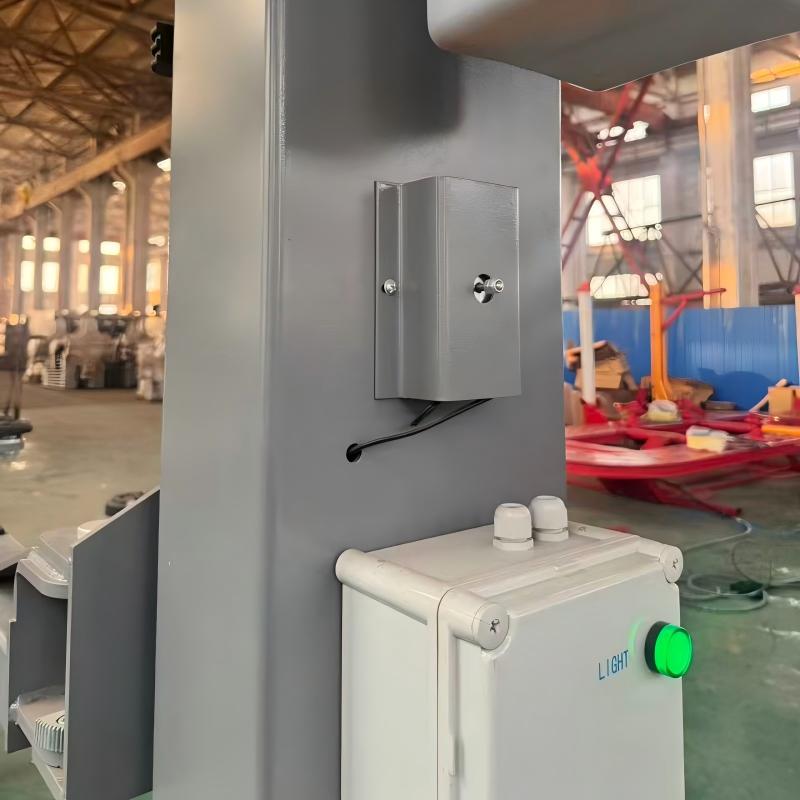

The intelligent control system in this model uses a microcomputer processor for real-time control. A displacement sensor monitors lifting movement, while the independent dual-column control structure supports synchronization adjustment.

This control approach is designed to keep both sides moving at similar heights during lifting and lowering. Compared with a basic system that depends only on mechanical balance, sensor-assisted control can identify displacement differences and support more precise synchronization.

The independent column-control design may also provide greater flexibility during installation, commissioning, inspection, and correction. However, individual column operation should only be performed according to the manufacturer’s approved procedure. It should not be used casually while a vehicle is raised.

Sensors and electronic controls support safe operation, but they do not replace mechanical safety locks, correct vehicle positioning, regular calibration, or operator inspection.

Before daily use, your technicians should check whether both sides start smoothly, rise evenly, stop correctly, and engage the safety system at the intended height. Any repeated height difference, unusual sound, delayed response, or unexpected platform movement should be investigated before the lift returns to service.

A 1200mm Lifting Height Fits Targeted Repair Work

The supplied USA project specification lists a maximum lifting height of 1200mm. This height is lower than that of many full-rise two post lifts, which often raise vehicles high enough for technicians to stand completely upright underneath them.

A 1200mm vehicle lifting height is more suitable for tire replacement, brake servicing, suspension checks, wheel removal, exterior inspection, and selected underbody maintenance. It can raise the vehicle well above floor level while keeping the overall lifting cycle relatively compact.

You should match the lifting height to the work your technicians perform most often.

For tire shops, quick-service bays, brake repair centers, and workshops with limited ceiling clearance, 1200mm may provide a practical working level. For transmission removal, prolonged exhaust repair, or full underbody servicing from a standing position, you may need a taller full-rise model.

The correct choice depends on technician posture, workshop ceiling height, vehicle roof height, service frequency, and the tools used around the lift.

Clear specification matching is important because “two post lift” describes the general machine structure, not the working height. Buyers should confirm whether the product is a full-rise model, a restricted-height model, or a specialized configuration before ordering.

The 30–50 Second Cycle Supports Daily Workshop Turnover

Lifting speed affects productivity, particularly in workshops that process multiple vehicles during each shift.

This model completes the lifting cycle in approximately 30 to 50 seconds. The exact cycle time can vary according to the vehicle weight, hydraulic oil temperature, electrical stability, system pressure, and final machine configuration.

A controlled lifting cycle is generally more valuable than simply choosing the fastest possible machine. Sudden starting or stopping can make vehicle movement less stable and place unnecessary stress on hydraulic and structural components.

With a 2.2kW motor, the lift is designed to provide practical hydraulic performance for daily automotive service. Your real productivity gain will depend not only on lifting time but also on vehicle positioning, arm adjustment, safety-lock engagement, tool preparation, and technician workflow.

For example, a lift that rises in 30 seconds will not improve service output if technicians spend several minutes repositioning the arms for each vehicle. Adjustable arms, clearly marked lifting zones, and consistent operating procedures are therefore just as important as motor speed.

Emergency Manual Lowering Provides Additional Operational Control

Power loss, electrical faults, control-system problems, or unexpected workshop conditions can interrupt a lifting operation. A controlled emergency-lowering method gives technicians a way to respond without using unsafe improvised procedures.

This model includes a single-side manual descending device intended for emergency operation. It provides a controlled method for lowering the system when normal powered operation is unavailable.

The manual descent function should only be used according to the operating manual. Before lowering, the technician must confirm that the area under and around the vehicle is clear, the mechanical locks have been released correctly, and both sides can descend without creating an excessive height difference.

Emergency lowering should never be confused with normal daily lowering. Repeated use of the emergency device may indicate a fault in the power supply, control system, hydraulic circuit, synchronization system, or safety-release mechanism.

Your installation and training documents should clearly explain who is authorized to operate the emergency descent system and which checks are required afterward.

A 110V Single-Phase Configuration Fits the USA Export Project

The unit exported to the USA on January 28, 2026, was specified with optional 110V, 60Hz, single-phase power and a 2.2kW motor.

A single-phase configuration can be useful for workshops that do not have convenient three-phase power. However, a 2.2kW hydraulic motor can require a relatively high starting current, so electrical compatibility must be assessed before installation.

You should confirm the circuit capacity, cable size, breaker rating, grounding arrangement, voltage stability, control voltage, plug or hardwired connection, and local electrical requirements.

A qualified electrician should complete the final connection. The electrical installation should not be based only on the voltage shown in the quotation.

Low voltage, inadequate wiring, an undersized breaker, or a long cable run can affect motor starting and hydraulic performance. These conditions may increase cycle time, cause protective devices to trip, or shorten component life.

The manufacturer should provide the exact motor nameplate data and wiring diagram before installation.

Where This Two Post Car Lift Adds the Most Value

The combination of adjustable arms, 4000kg capacity, intelligent synchronization, and a 1200mm lifting height makes this configuration most suitable for targeted automotive service rather than unrestricted heavy-vehicle repair.

It can support tire replacement, wheel removal, brake repair, suspension inspection, steering-system checks, oil service, chassis inspection, and other routine maintenance tasks.

Workshops that may benefit from this configuration include:

• Independent automotive repair shops handling mixed passenger vehicles

• Tire and brake service centers requiring open wheel access

• Dealership quick-service bays with limited installation height

• Fleet maintenance facilities servicing vehicles within the rated load

For commercial vehicles and light trucks, compatibility must be confirmed individually. The phrase “suitable for light trucks” should not be applied to every model because some light trucks may exceed the rated load or have lifting points beyond the arm reach.

Providing the vehicle make, model, wheelbase, curb weight, lifting-point spacing, and underbody photographs before ordering helps the supplier verify the configuration more accurately.

Safety Standards and Documents You Should Verify

No specific certification was included in the supplied export details, so certification should not be assumed or added only for marketing purposes.

For a vehicle lift supplied to the United States, you should confirm which safety and electrical requirements apply to the destination, installation site, and local authority. Depending on the project, buyers may request evidence relating to applicable automotive lift standards, electrical component approvals, load testing, welding quality, and factory inspection.

Before shipment, the supplier should provide a consistent technical package containing the machine model, serial number, rated load, dimensions, motor data, hydraulic diagram, electrical diagram, operating manual, maintenance schedule, foundation drawing, safety-lock description, and test record.

When certification is required, confirm that the certificate covers the exact model rather than a similar product family. The model number, capacity, electrical configuration, and manufacturer shown in the certificate should match the machine nameplate and commercial documents.

You should also request a factory acceptance test showing unloaded movement, rated-load lifting, synchronization performance, safety-lock engagement, emergency lowering, limit control, and hydraulic leakage inspection.

What You Should Confirm Before Ordering

Before placing an order, match the lift to your workshop rather than relying only on the product name.

Confirm the heaviest vehicle you plan to service, its wheelbase, lifting-point spacing, chassis clearance, and weight distribution. Check that the arm extension range and support-pad height can reach the vehicle correctly.

You should also review the available bay width, ceiling clearance, concrete foundation, electrical supply, vehicle entry route, tool-cart space, and emergency access.

Because the project data lists a 1200mm lifting height and 1200 × 520mm supporting sections, request the final assembly drawing before production. This will confirm the exact two-post structure, arm arrangement, contact area, column dimensions, and usable working space.

Your purchase agreement should state the rated capacity, lifting height, cycle time, motor power, voltage, control method, synchronization system, safety devices, included accessories, spare parts, warranty, installation support, and acceptance procedure.

Clear technical confirmation before production reduces the risk of receiving a lift that fits the quotation but does not fit the actual workshop or target vehicles.

Frequently Asked Questions

Can this 4000kg two post car lift raise an SUV?

It can raise many SUVs with an operating weight below 4000kg, provided the vehicle’s lifting points, wheelbase, ground clearance, and weight distribution match the arm configuration. Compatibility should be confirmed for each vehicle type before lifting.

Is a 1200mm lifting height enough for underbody repairs?

It is suitable for tire service, brake repair, suspension checks, wheel removal, and selected underbody work. If your technicians need to stand fully upright beneath the vehicle, you should consider a full-rise lift with a greater working height.

What is the purpose of the intelligent synchronization system?

The microcomputer controller and displacement sensors monitor the movement of both columns and help reduce height differences during lifting. The system supports level operation but must still be used together with mechanical locks, correct positioning, and regular calibration.

Can the lift operate on 110V single-phase power?

The USA export configuration supports optional 110V, 60Hz, single-phase power. Before installation, a qualified electrician should verify the required circuit capacity, breaker, cable size, grounding, and actual motor nameplate data.

Conclusion

This 4000kg two post car lift provides a practical lifting solution for workshops servicing passenger cars, SUVs, crossovers, vans, and selected light commercial vehicles. Its three-section adjustable arms and 110–240mm telescopic support pads help you reach different chassis lifting points, while the gantry beam improves structural connection between the columns. A microcomputer controller, displacement sensors, and independent dual-column control support synchronized lifting, and the manual emergency-lowering device provides additional operational control. For the USA export project completed on January 28, 2026, the selected configuration included a 1200mm lifting height, an approximate 30–50 second lifting cycle, a 2.2kW motor, and optional 110V, 60Hz single-phase power. When the final drawings, vehicle compatibility, foundation conditions, electrical supply, safety documents, and factory tests are verified before delivery, this lift can help your workshop improve wheel access, repair efficiency, and service-bay utilization.
