Can a 4000kg Ultra-Thin Scissor Lift Save Workshop Space?

When workshop space is limited, you need lifting equipment that gives technicians full underbody access without creating unnecessary installation work. This 4000kg ultra-thin scissor lift combines a 110mm low starting height, 1850mm full-rise capability, adjustable platforms, and flexible installation for professional repair and quick-service workshops.

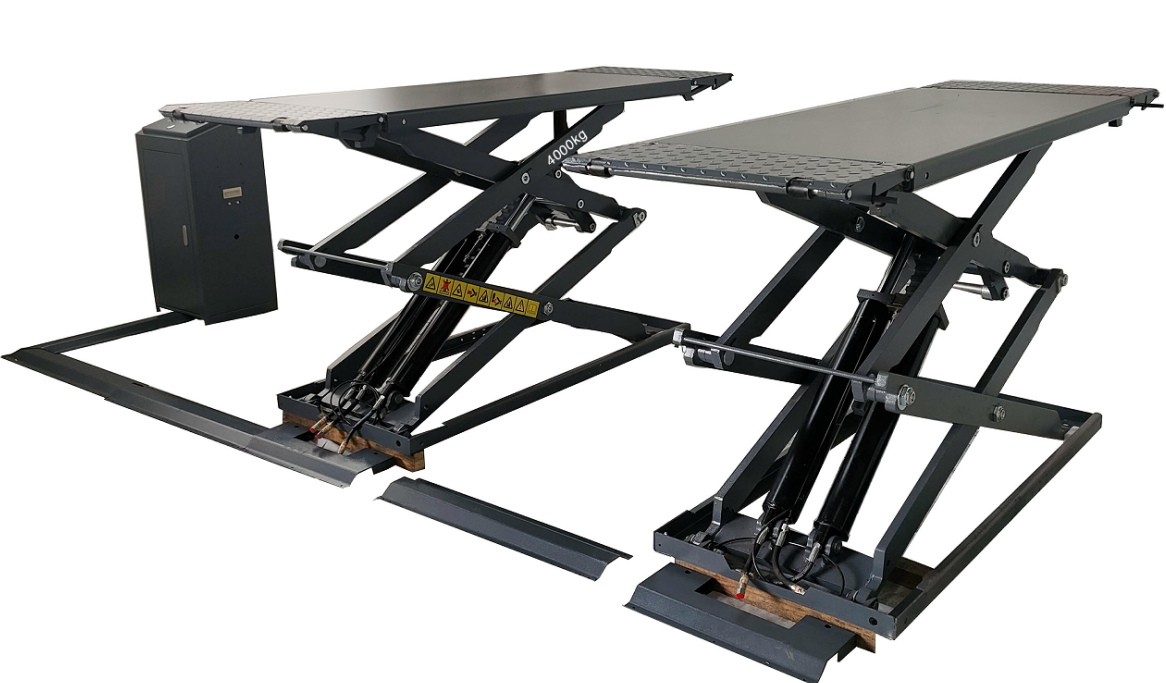

A 4000kg Ultra-Thin Scissor Lift for Professional Repair Bays

An ultra-thin scissor lift is designed for workshops that want full lifting capability while keeping the equipment compact when lowered.

This dark grey model was exported to the USA on July 27, 2026. The exported configuration provides a rated lifting capacity of 4000kg and a main lifting range from 110mm to 1850mm.

That combination is useful because you get a low starting position for easier vehicle access while still reaching a full working height suitable for underbody maintenance.

The platform length can be adjusted from 1480mm to 2080mm. This allows you to adapt the support area for vehicles with different wheelbases and lifting-point positions.

The lift uses a 2.2kW motor with a 240V, 60Hz, single-phase electrical configuration.

The main specifications include:

• Rated lifting capacity: 4000kg
• Platform length: 1480–2080mm
• Main lifting height: 110–1850mm
• Motor power: 2.2kW
• Voltage: 240V, 60Hz, single-phase
• Color: dark grey
• Installation options: surface-mounted or recessed-mounted

For this exported model, the rated lifting capacity is 4000kg. Vehicle weight and support-point compatibility should still be checked before every lifting operation.

A 110mm Starting Height Improves Vehicle Access

One of the most useful features of an ultra-thin scissor car lift is its low profile.

At the fully lowered position, this model starts at approximately 110mm. That makes it easier to position many passenger cars, crossovers, and SUVs compared with taller surface-mounted lifting equipment.

Low ground-clearance vehicles can be difficult to place on conventional lifts if the platform or approach structure sits too high above the workshop floor.

A lower starting height reduces the approach angle and can make daily vehicle positioning more straightforward.

For busy automotive repair shops, this matters because even small delays during vehicle entry and positioning can add up over multiple jobs.

You should still check the actual ground clearance of your target vehicles. Side skirts, battery housings, aerodynamic panels, and other low-mounted components should remain clear of the lifting structure during entry and positioning.

The 110mm minimum height improves accessibility, but correct vehicle placement remains necessary for safe operation.

1850mm Full-Rise Height Supports Underbody Repair

Compact design does not mean limited working height.

This ultra-thin scissor lift reaches up to 1850mm, giving technicians practical standing access beneath many passenger vehicles.

That makes it suitable for more than quick tire service.

You can use the lift for chassis inspection, oil changes, brake-related work, suspension diagnosis, exhaust inspection, underbody maintenance, and general mechanical repair.

For a technician, comfortable working height can directly affect productivity. Repeatedly bending or working from an awkward position increases fatigue and can slow down routine service.

A full-rise lifting height gives you more flexibility because the same repair bay can support both quick service and jobs that require extended access beneath the vehicle.

This is particularly valuable for independent workshops that want one lift to cover several service categories instead of dedicating different bays to different lifting equipment.

Adjustable Platforms Improve Compatibility With Different Vehicles

Vehicle dimensions vary considerably, even within the same weight category.

The platform on this lift can be adjusted from 1480mm to 2080mm.

That adjustable range helps you match the support position to different vehicle lengths and lifting-point arrangements.

For a repair shop handling sedans, crossovers, SUVs, and other passenger vehicles, adjustable platforms increase practical flexibility.

A fixed-length platform may work well for one vehicle group but become less convenient when wheelbases and chassis support positions change.

The adjustable structure helps reduce that limitation.

Before lifting, however, technicians should confirm that the support areas are positioned correctly and that the vehicle remains stable within the rated 4000kg capacity.

The platform adjustment should be carried out according to the manufacturer's operating instructions so that the lifting load remains correctly distributed.

Surface-Mounted Installation Can Reduce Civil Construction Work

One major advantage of this ultra-thin scissor lift is that it can be installed without a floor trench when the workshop foundation meets the required conditions.

For an existing repair shop, avoiding excavation can significantly simplify installation.

A recessed pit may require floor cutting, concrete work, drainage consideration, curing time, and temporary closure of the service bay.

With a surface-mounted installation, you can reduce much of that civil construction work.

This can be particularly useful when upgrading an operating workshop where long installation downtime would affect business.

The low 110mm profile helps make surface mounting practical because the lift remains relatively close to the floor when lowered.

However, “no pit required” does not mean that the machine can be installed on any floor.

The concrete foundation still needs sufficient strength, thickness, levelness, and condition to support the equipment and vehicle loads according to the manufacturer's installation requirements.

Checking the floor before installation is therefore just as important as selecting the lift itself.

Recessed Installation Is Available for a Flatter Workshop Floor

Although surface mounting provides easier installation, some workshops prefer a recessed configuration.

This model supports both recessed-mounted and surface-mounted installation, allowing you to select the layout according to your building conditions and operating preferences.

A recessed installation can create a flatter floor profile when the lift is fully lowered.

This can make vehicle movement around the bay more convenient and create a cleaner visual layout.

For newly built workshops or major renovation projects, planning the pit during construction may be easier than adding one later.

Surface mounting, on the other hand, is often more practical when you want to install the equipment quickly in an existing building.

There is no single installation method that is best for every workshop.

Your decision should depend on floor structure, available construction budget, vehicle flow, future relocation plans, drainage requirements, and how you want the bay to function when the lift is not in use.

Solid Steel Construction Supports Frequent Workshop Operation

A vehicle lift in a professional repair shop may complete many lifting cycles every week.

For that reason, structural strength affects both safety and long-term equipment value.

This model uses high-strength solid steel plates in its lifting structure.

The purpose is to provide sufficient rigidity and stability during repeated operation under vehicle load.

Scissor mechanisms experience stress at several points, including the lifting arms, pivot shafts, platforms, welds, and lower frame.

Using strong structural material helps these areas maintain alignment and resist deformation during normal operation.

Durability also depends on manufacturing accuracy, welding quality, surface protection, lubrication, and maintenance.

Even a heavy steel structure requires regular inspection.

Technicians should check pivots, shafts, welds, platforms, safety components, and hydraulic parts for unusual wear or movement as part of routine maintenance.

A strong frame is most valuable when it is combined with consistent inspection and correct operating practices.

Dual-Cylinder Lifting Helps Maintain Stable Movement

This ultra-thin scissor lift uses a dual-cylinder lifting design together with auxiliary lifting arms.

The two-cylinder configuration helps distribute hydraulic force through the lifting mechanism and supports stable movement as the platforms rise and lower.

For a 4000kg lift, balanced movement matters because vehicle weight is rarely distributed perfectly evenly from front to rear.

The lifting system therefore needs to manage normal differences in vehicle weight distribution while keeping the platform movement controlled.

A stable hydraulic system improves technician confidence and reduces unnecessary movement during operation.

Hydraulic components should still be inspected regularly.

Oil condition, cylinder surfaces, hoses, seals, fittings, valves, and synchronization performance all affect lifting quality.

If the lift begins moving unevenly, producing unusual noise, or showing signs of hydraulic leakage, it should be checked before continued operation.

Preventive maintenance is usually less disruptive than repairing a hydraulic problem after it causes equipment downtime.

Compact Design Fits Repair and Quick-Service Workshops

The main advantage of an ultra-thin scissor lift is not simply that it is smaller.

Its value comes from combining a compact lowered profile with a useful full-rise working height.

For automotive repair shops, this allows one bay to handle several common maintenance tasks without permanent columns beside the vehicle.

Technicians retain open access around both sides of the car, which can be useful in narrow service bays.

The lift is suitable for general repair, chassis inspection, routine maintenance, quick-service work, and other applications where underbody access is required.

Its 4000kg rated capacity also gives workshops flexibility to handle a broader range of passenger vehicles within the specified load limit.

For businesses with limited floor area, better bay utilization can improve overall workshop capacity without increasing building size.

The key is selecting equipment that matches the actual vehicle mix and repair services rather than choosing only by maximum lifting capacity.

240V Single-Phase Power Should Be Confirmed Before Installation

The exported USA configuration uses a 2.2kW motor with 240V, 60Hz, single-phase power.

This type of supply can be practical for workshops where suitable single-phase circuits are available.

However, voltage and phase alone do not confirm that an existing electrical circuit is adequate.

Motor startup current can be higher than normal running current.

Before installation, you should confirm circuit capacity, breaker size, cable specification, grounding, connection method, and the exact motor nameplate information.

Electrical installation should be completed according to the supplied wiring diagram and applicable local requirements.

For export equipment, confirming electrical specifications before shipment helps prevent unnecessary modifications after the machine reaches your workshop.

It is also useful to provide the supplier with your actual power conditions during the quotation stage so the correct motor and control configuration can be prepared.

What Should You Check Before Ordering This Scissor Lift?

A 4000kg ultra-thin scissor car lift should match your workshop conditions as closely as it matches your target vehicles.

Start with the vehicles you service most often. Compare their weight, wheelbase, lifting-point position, and ground clearance with the 4000kg capacity, 1480–2080mm platform range, and 110mm starting height.

Next, evaluate the installation area.

Confirm available bay length, width, ceiling clearance, floor strength, concrete levelness, and vehicle approach space.

You should also decide whether surface mounting or recessed mounting better matches your workshop layout.

If the lift will be installed on the surface, confirm any required approach components and anchoring conditions. If recessed installation is preferred, obtain the final pit drawing before beginning civil construction.

The supplied product information does not specify a particular certification, so certification should not be assumed. If your market or workshop requires specific automotive lift, machinery, electrical, or workplace safety documentation, verify the exact model coverage with the supplier before ordering.

You should also request installation drawings, an electrical diagram, hydraulic information, an operation manual, a maintenance schedule, safety-system details, load-test documentation, and a spare-parts list.

Frequently Asked Questions

Does this ultra-thin scissor lift require a floor pit?

No. It can be surface-mounted without a floor trench when the foundation meets the manufacturer's requirements. The model can also support recessed installation if you prefer a flatter floor layout.

Can the 4000kg lift handle SUVs?

It can support many SUVs and passenger vehicles within the rated 4000kg capacity. You should still confirm actual vehicle weight, wheelbase, lifting points, and weight distribution before lifting.

What is the advantage of the 110–1850mm lifting range?

The 110mm minimum height makes vehicle access easier, while the 1850mm maximum height provides useful standing access for underbody inspection and general repair work.

Is 240V single-phase power suitable for workshop use?

The exported configuration uses a 2.2kW, 240V, 60Hz single-phase motor. Your electrical circuit must still be checked for adequate capacity, breaker sizing, wiring, and grounding before installation.

Conclusion

The 4000kg ultra-thin scissor lift exported to the USA combines a low 110mm starting height, 1850mm full-rise capability, adjustable 1480–2080mm platforms, dual-cylinder lifting, high-strength solid steel construction, and flexible surface-mounted or recessed installation. This configuration helps professional workshops gain useful underbody access while maintaining efficient use of floor space.

For independent repair shops and quick-service facilities, the lift offers a practical balance between vehicle accessibility, working height, structural durability, and installation flexibility. By confirming your vehicle range, foundation conditions, electrical supply, installation method, safety documentation, and service requirements before ordering, you can select a scissor lift that fits your daily workshop operations more reliably.
