Why a Professional Spray Paint Room Matters

In automotive repair, vehicle refinishing, and industrial coating operations, the working environment plays a major role in the final paint quality. Factors such as air circulation, temperature control, lighting conditions, and workspace size can significantly influence spraying results.

For this reason, many workshops and coating facilities are turning to professional spray paint rooms to create a controlled working environment. With proper ventilation, stable heating systems, and high-quality lighting, modern paint booths help improve efficiency while maintaining consistent coating results.

The Spray Paint Room introduced here is designed to provide a reliable and efficient solution for spray operations, combining a spacious interior, stable ventilation system, and intelligent control system.

Technical Specifications of the Spray Paint Room

Understanding the technical configuration of a paint booth is essential when selecting equipment for spraying operations. Below are the main specifications of this Spray Paint Room:

External Dimensions

• 7000 × 5100 × 3300 mm (L × W × H)

Internal Dimensions

• 6900 × 3900 × 2650 mm (L × W × H)

Color

• Green series (optional)

Wall Panel Structure

• 0.37 mm color steel plate

• 50 mm socket-type flame-retardant EPS insulation board

Door Configuration

• 1 set of three aluminum alloy edge-wrapped main doors

• 1 set of installation work door

Floor Structure

• 2 steel grilles

• 3 patterned steel plates

• 2 ramps for vehicle access

Heating System

• Electric heating system

Lighting System

• 8 sets of LED high-efficiency energy-saving lamps

• Each set includes 4 × 16W LED lights

Ventilation System

• 2 × 3KW double-inlet centrifugal intake fans

• Total intake air volume: 16000 m³/h

• 1 × 5.5KW centrifugal exhaust fan

• Exhaust air volume: 15000 m³/h

Electrical Control System

• One intelligent electronic control cabinet

Power Supply

• 220V / 50Hz (optional)

• 3-phase power supply

Additional Configuration

• One set of installation auxiliary materials

Key Advantages of the Spray Paint Room

When selecting a paint booth, workshops typically focus on safety standards, airflow efficiency, and long-term durability. This spray paint room is designed with several practical advantages.

1. CE Certification for Reliable Safety Compliance

This spray paint room is CE marked, indicating compliance with relevant equipment safety standards.

CE certification generally ensures that the equipment meets requirements related to:

• Structural safety

• Electrical system protection

• Stable equipment operation

For businesses requiring a reliable spraying environment, this certification provides an additional level of assurance.

2. Large Interior Space for Efficient Spray Operations

The booth offers a 6900 × 3900 × 2650 mm internal workspace, providing sufficient room for various spraying tasks.

This spacious design supports operations such as:

• Passenger vehicle refinishing

• SUV spray painting

• Small commercial vehicle coating

• Component painting work

A larger workspace allows technicians to move more freely and perform spraying tasks more efficiently.

3. High-Efficiency Electric Heating System

Temperature control is essential in spray painting, as proper heat helps coatings dry and cure effectively.

This booth uses an electric heating system, offering several advantages:

• Stable temperature control

• Efficient heating performance

• Simple operation

• Suitable for different coating environments

A consistent heating environment helps improve paint drying quality and overall finishing results.

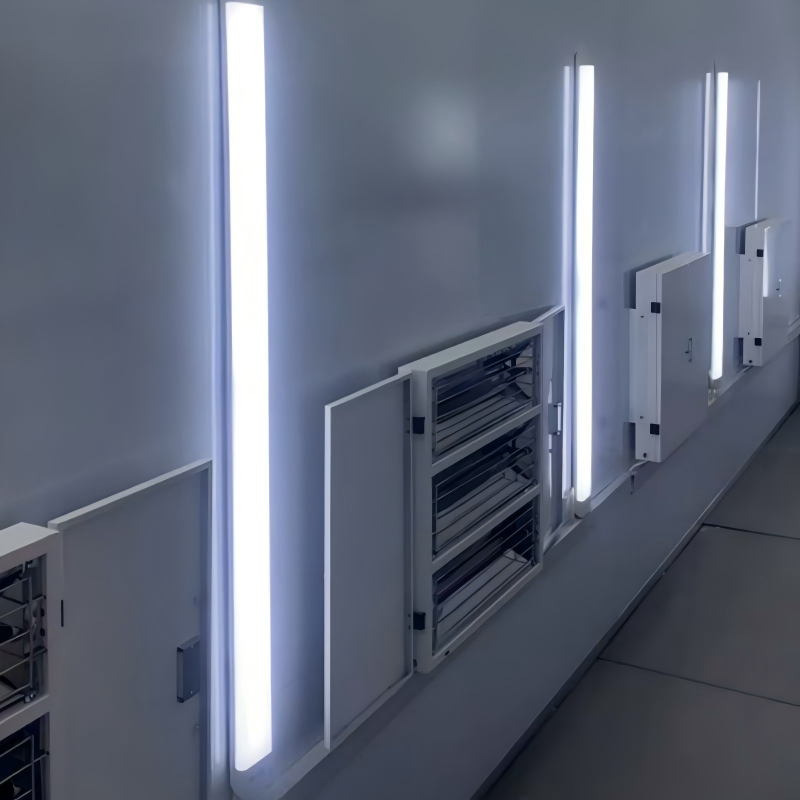

4. Advanced LED Lighting for Better Visibility

Lighting conditions directly affect the accuracy and quality of spray painting.

This paint booth is equipped with an advanced LED lighting system, including:

• 8 sets of LED lighting units

• Each unit with 4 × 16W energy-efficient lamps

The lighting system provides bright and uniform illumination, allowing technicians to clearly observe paint coverage and surface conditions during operation.

5. Durable Structure for Long-Term Performance

The wall panels are constructed using color steel plates combined with flame-retardant EPS insulation boards, providing both strength and insulation.

Key structural benefits include:

• Effective thermal insulation

• Improved structural stability

• Enhanced durability

• Suitable for long-term industrial use

This robust design helps extend the overall service life of the equipment.

6. Efficient Ventilation System for Stable Airflow

Air circulation plays a critical role in maintaining a clean spraying environment.

This system includes:

• Two 3KW double-inlet centrifugal intake fans

• One 5.5KW centrifugal exhaust fan

The system provides:

• 16000 m³/h intake airflow

• 15000 m³/h exhaust airflow

This balanced airflow design helps maintain a clean environment inside the booth and improves coating quality during spray operations.

7. 12-Month Warranty for Reliable Operation

To ensure customer confidence, the spray paint room comes with a 12-month quality warranty.

Warranty support typically includes:

• Equipment quality assurance

• Technical assistance

• After-sales service support

This protection allows customers to operate the equipment with greater peace of mind.

Typical Application Areas

Because a paint booth creates a controlled spraying environment, it is widely used in several industries.

Automotive Repair Industry

• Vehicle repainting

• Body repair refinishing

Car Customization and Detailing

• Color change spraying

• Custom coating services

Industrial Manufacturing

• Metal component coating

• Equipment housing painting

A stable spray environment helps ensure better coating quality and consistent results.

Conclusion

The Spray Paint Room provides a professional solution for modern spraying operations by combining a spacious interior, efficient ventilation system, and stable heating control.

Key advantages include:

• CE certification for safety compliance

• Large 6900 × 3900 × 2650 mm interior workspace

• Efficient electric heating system

• Advanced LED lighting for clear visibility

• High-performance airflow circulation

• Durable structural design

• 12-month warranty protection

For automotive workshops, coating facilities, and industrial manufacturers, this paint booth can help improve spraying efficiency while maintaining consistent working conditions.

FAQ

1. What types of spraying work can this spray paint room handle?

This paint booth is suitable for vehicle refinishing, body repair painting, and coating work for various industrial components.

2. What is the internal working space of the paint booth?

The internal dimensions are 6900 × 3900 × 2650 mm, providing enough space for most passenger vehicles and small commercial vehicles.

3. What heating system does the paint booth use?

The booth uses an electric heating system, which provides stable temperature control for paint drying and curing.

4. Why is the ventilation system important in a spray paint room?

The ventilation system maintains proper airflow inside the booth, helping remove overspray particles and improving the overall painting environment.
