As the automotive repair industry continues to evolve, workshop owners are placing greater focus on efficiency, equipment coordination, and long-term operating stability. Modern body shops no longer rely on a single machine to complete repair work. Instead, many professional repair centers are upgrading to integrated workshop solutions that combine vehicle painting, lifting, and structural repair equipment into one complete system.

Recently, a complete automotive workshop equipment package including a large spray paint room, a 4000KG scissor lift, and an auto body frame machine was prepared for export delivery. This combination is designed to help automotive repair shops improve workflow efficiency, reduce operating pressure, and provide higher-quality repair services for daily vehicle maintenance and collision repair projects.

With practical configurations, stable operating systems, and workshop-friendly designs, this equipment package is suitable for collision centers, automotive refinishing workshops, vehicle maintenance garages, and professional body repair stations.

Large Spray Paint Room Designed for Professional Vehicle Refinishing

A professional spray paint booth is one of the most important systems inside any automotive refinishing workshop. Paint quality is directly influenced by airflow stability, heating performance, lighting brightness, and booth insulation.

This large spray paint room is designed with spacious internal dimensions of 7900×4400×2550MM, providing enough room for sedans, SUVs, vans, and light commercial vehicles. The booth structure uses 50MM flame-retardant EPS insulation panels combined with 0.42MM color steel plates, helping improve heat preservation, working safety, and long-term durability.

The booth is equipped with four large aluminum alloy glass doors, allowing vehicles to enter and exit more conveniently. An additional paint mixing room is also included, helping workshops separate paint preparation from spraying operations. This improves workshop cleanliness and reduces contamination risks during painting.

Unlike standard paint booths that rely on a single heating source, this system combines natural gas heating with electric infrared heating. The Riello FS20 gas burner provides stable temperature performance, while the infrared heating system uses ten 3KW heating units installed on both sides and the rear section of the booth. This dual heating structure helps maintain more even temperature distribution during the baking process and improves paint curing consistency.

The lighting system is designed to create a bright and shadow-free working environment. Eight sets of overhead LED lights combined with ten sets of side-mounted LED lamps allow technicians to inspect paint surfaces more accurately during spraying and polishing work. Better lighting conditions help reduce repainting issues caused by poor visibility or uneven color inspection.

Ventilation is another important factor affecting paint quality. This booth uses two 4KW intake fans together with one 7.5KW centrifugal exhaust fan to maintain stable airflow circulation. The ventilation system helps remove paint mist and fumes efficiently while creating a cleaner working environment for operators. Stable airflow also contributes to smoother coating finishes and reduced dust contamination.

To simplify operation, the booth includes an intelligent electronic control cabinet together with complete installation accessories and a built-in climbing platform. These features help workshops reduce installation preparation time and improve daily operating convenience.

4000KG Scissor Lift Improves Daily Maintenance Efficiency

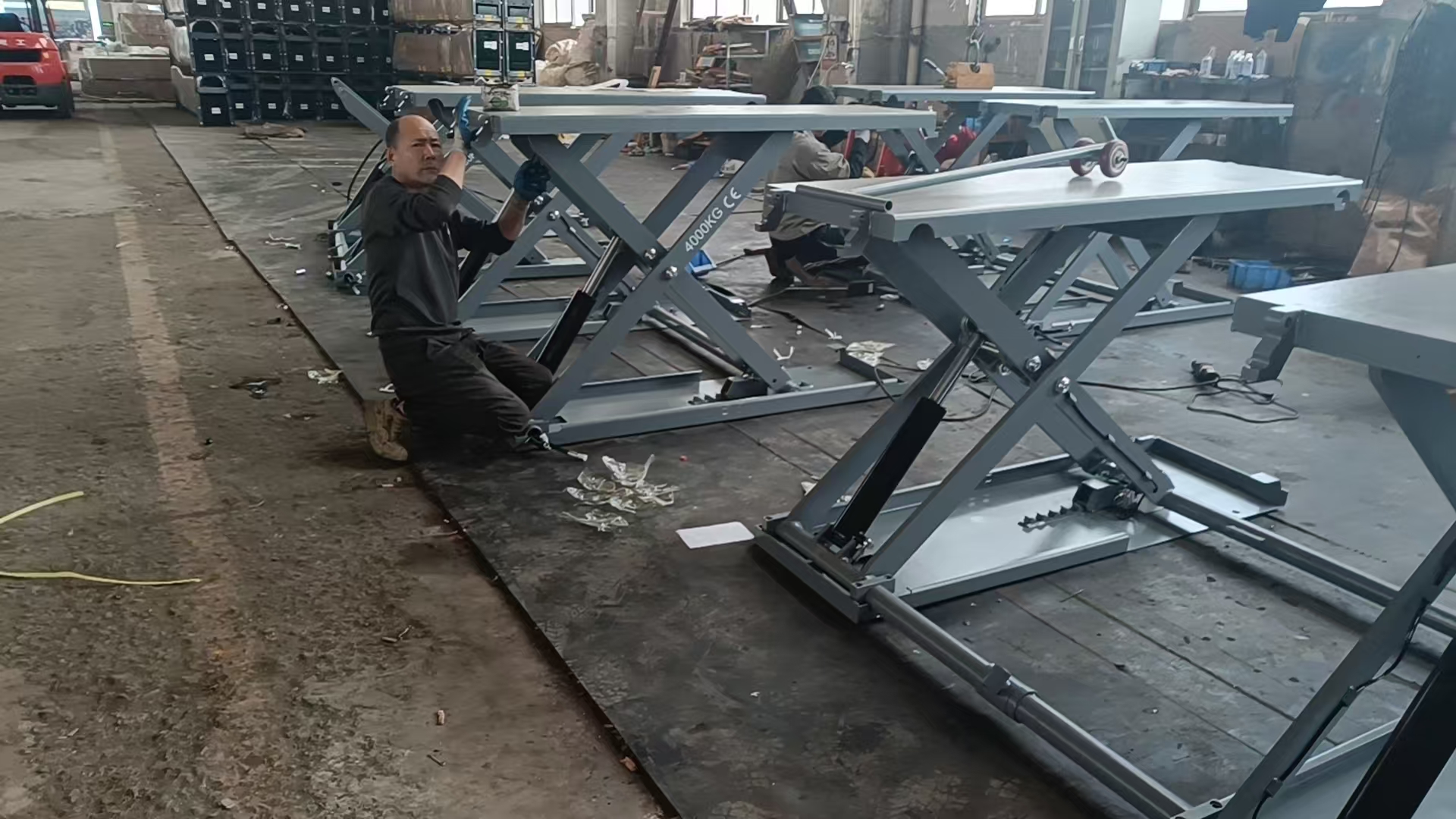

Alongside painting operations, vehicle lifting equipment plays an equally important role in automotive workshops. This 4000KG scissor lift is designed for repair centers that require reliable lifting performance while working in limited spaces.

The lift provides a maximum lifting height of 1200MM with a low landing height of only 110MM, making it easy for vehicles to access the platform. Its compact structure allows workshops to save floor space while still providing enough room for technicians to perform tire maintenance, brake repair, suspension inspection, and general underbody servicing.

The platform uses high-strength steel construction together with reinforced hydraulic components to support repeated daily operation. A pneumatic safety locking system improves operational safety during lifting procedures, while the extendable platform structure increases compatibility with different vehicle sizes.

The hydraulic system is designed for stable and smooth operation, helping reduce vibration and improve lifting reliability during maintenance work. The anti-leakage valve system also contributes to long-term durability and lower maintenance frequency.

Because many workshops operate in limited working environments, the compact design of this scissor lift becomes especially valuable. It allows technicians to organize repair areas more efficiently without sacrificing operational performance.

Compact Auto Body Frame Machine for Collision Repair Work

For collision repair workshops, structural correction equipment is essential for restoring damaged vehicle frames and chassis systems. This compact auto body frame machine is designed to provide practical repair capability while remaining flexible and easy to operate.

The platform measures 2320MM in length and 2000MM in width, offering stable support for various vehicle body repair tasks. The system delivers a pulling tower capacity of 49KN together with a hydraulic pressure rating of 70Mpa, allowing technicians to handle many common collision repair applications.

Unlike larger frame correction systems that require complicated installation procedures, this machine is designed for easier setup and flexible workshop movement. It can be operated using both manual and foot pumps, giving technicians more control during pulling and alignment work.

The included clamps and repair accessories help workshops perform chassis correction, frame alignment, structural pulling, and panel adjustment tasks more efficiently. Its compact size also makes storage and repositioning easier for smaller repair shops.

Durability and operational simplicity are key advantages of this machine. The optimized structural design improves repair efficiency while helping extend equipment service life during long-term workshop use.

Why Integrated Workshop Equipment Is Becoming More Popular

Automotive repair businesses are increasingly choosing complete equipment solutions rather than purchasing individual machines separately. Integrated workshop systems help improve compatibility between different repair processes while simplifying daily workflow management.

When painting equipment, lifting systems, and frame repair tools are properly coordinated, workshops can reduce repair delays, improve technician movement, and create a more organized operating environment. This not only increases productivity but also helps workshops present a more professional image to customers.

For repair businesses handling both maintenance and collision repair work, integrated equipment solutions also reduce the difficulty of future workshop expansion. Equipment compatibility, power configuration, and installation planning become easier when systems are selected together.

Suitable Applications for This Automotive Workshop Solution

This equipment package is suitable for a wide range of automotive repair industries. Collision repair centers can use the frame machine and spray booth for structural restoration and repainting work. Vehicle refinishing workshops benefit from the stable airflow, bright lighting, and dual heating system inside the paint booth. General repair garages can improve maintenance efficiency using the compact scissor lift.

Fleet maintenance workshops, automotive service chains, and independent body shops can also benefit from the flexibility and practicality of this complete workshop configuration.

Modern automotive repair workshops require more than basic repair tools. To remain competitive, businesses need equipment that improves efficiency, supports stable operation, and delivers professional repair results.

This integrated automotive workshop solution combines a spacious spray paint room, a durable 4000KG scissor lift, and a practical auto body frame machine into one coordinated repair system. The equipment is designed to improve workflow efficiency, support long-term workshop operation, and handle a wide range of vehicle repair applications.

With reliable heating systems, efficient ventilation, stable lifting performance, and practical frame correction capability, this workshop solution provides professional support for growing automotive repair businesses looking to improve service quality and workshop productivity.

FAQ

What types of vehicles can the spray paint room accommodate?

The booth is suitable for sedans, SUVs, pickup trucks, vans, and many light commercial vehicles thanks to its spacious internal dimensions.

Does the paint booth support different heating methods?

Yes. The booth combines natural gas heating with electric infrared heating to provide more flexible and stable temperature control.

Is the scissor lift suitable for workshops with limited space?

Yes. Its compact structure and low-profile platform design make it suitable for smaller repair shops and narrow work areas.

What repair work can the frame machine perform?

The frame machine is suitable for chassis correction, frame alignment, structural pulling, and general collision repair work.

Can the equipment be customized?

Yes. Voltage, dimensions, colors, and certain configurations can be customized according to customer requirements and workshop conditions.
