Custom Propane Heated Spray Paint Room Delivered with High Airflow and Energy-Saving Design

A newly customized spray paint room with propane heating system has recently been successfully completed and prepared for delivery, marking another step forward in providing efficient and reliable coating solutions for professional workshops.

Designed to meet the needs of high-quality automotive refinishing and industrial painting applications, this spray booth combines durable construction, powerful ventilation, and intelligent control systems. The project demonstrates how tailored configurations can help workshops improve coating consistency, operational efficiency, and long-term performance.

Project Overview: Tailored Spray Booth for Professional Use

This spray paint room was developed based on specific workshop requirements, focusing on workspace optimization, stable heating performance, and energy efficiency.

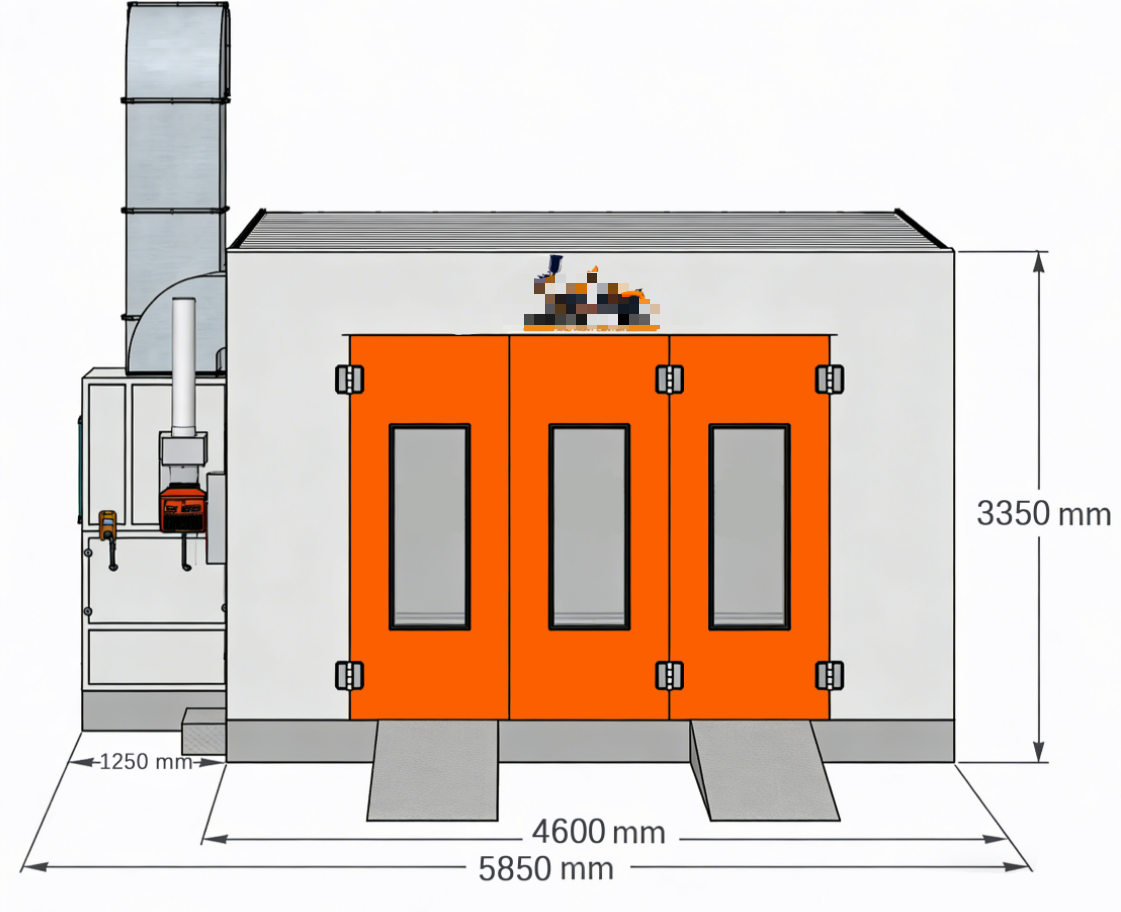

Key dimensions include:

• External size: 6100 × 5850 × 3350 mm
• Internal working area: 6000 × 4500 × 2650 mm

The spacious interior ensures sufficient room for vehicle positioning and technician movement, making it suitable for passenger vehicles, SUVs, and light-duty service applications.

The booth is finished in a white and orange-red color scheme, providing both visual clarity inside the workspace and a professional external appearance.

Durable Insulation Structure Ensures Stable Operation

A stable internal environment is essential for achieving high-quality paint finishes. The booth is constructed using 50 mm socket-type flame-retardant EPS insulation panels combined with 0.42 mm color steel plates.

This structure provides:

• Effective heat retention during curing
• Fire-resistant safety performance
• Long-term durability under continuous use

Reliable insulation helps maintain consistent internal temperatures, which directly contributes to improved paint adhesion and surface quality.

Multi-Door Design Improves Workflow and Safety

Efficient vehicle movement is critical for maintaining smooth workshop operations. This spray booth is equipped with:

• 3 high-strength sheet metal doors
• 1 aluminum alloy edge-wrapped safety work door

This configuration allows flexible vehicle entry and exit while providing safe access for operators.

The dedicated safety door enhances emergency accessibility and ensures compliance with standard workshop safety practices.

Propane Heating System with RIELLO Burner for Reliable Performance

Heating performance is a key factor in determining coating quality and drying efficiency. This spray booth uses a propane heating system equipped with a RIELLO FS20 burner, known for its stable combustion and consistent heat output.

Benefits of this heating setup include:

• Fast temperature rise for reduced waiting time
• Stable heat distribution for uniform curing
• Reliable operation under continuous workloads

Propane heating also offers flexibility in environments where other energy sources may be limited.

High-Efficiency Lighting System for Precision Coating

Proper lighting is essential for detecting surface imperfections and ensuring accurate paint application. This booth integrates a dual-layer lighting system:

• Overhead lighting: 8 sets of 4 × 16W LED lamps
• Side lighting: 10 sets of 1 × 60W LED lamps

This combination provides bright, evenly distributed illumination across the entire workspace, minimizing shadows and improving visibility.

Energy-efficient LED technology helps reduce power consumption while maintaining high brightness levels.

Powerful Ventilation System Enhances Air Quality

Clean airflow is critical for achieving smooth, defect-free coatings. The booth is equipped with a high-performance ventilation system, including:

• 2 × 4 kW intake fans
• 1 × 7.5 kW centrifugal exhaust fan

This configuration ensures:

• Rapid removal of paint mist and overspray
• Continuous fresh air supply
• Stable airflow during operation

Efficient ventilation helps maintain a clean painting environment, reducing the risk of dust contamination and improving coating consistency.

Reinforced Floor System Supports Safe Operation

The floor structure combines 3 steel grilles and 2 patterned plates, providing a strong and stable platform for vehicle positioning.

This design supports:

• Reliable load-bearing capacity
• Improved airflow distribution from bottom extraction
• Enhanced durability under frequent use

A well-designed floor system contributes to both safety and operational efficiency.

Intelligent Control System Simplifies Operation

The spray booth is equipped with a centralized intelligent electronic control cabinet, allowing operators to manage all key functions, including:

• Heating control
• Ventilation operation
• Lighting system
• Safety features

User-friendly controls make it easy for technicians to adjust settings based on different coating requirements, improving workflow efficiency and reducing operational errors.

Industrial Power Configuration for Stable Performance

The system operates on 240V / 60Hz / three-phase power, ensuring stable performance and compatibility with standard industrial electrical systems.

This configuration supports the consistent operation of all major components, including heating, ventilation, and lighting systems.

Designed for Real-World Workshop Applications

This customized spray paint room is suitable for a wide range of applications, including:

• Automotive refinishing and repair
• Industrial coating operations
• Equipment painting and maintenance
• Commercial vehicle servicing

By combining reliable heating, strong airflow, and efficient lighting, the booth helps workshops achieve professional-grade coating results.

Supporting Long-Term Efficiency and Quality Improvement

Modern workshops require solutions that not only meet current needs but also support long-term growth. This spray paint room is designed with durability, energy efficiency, and operational flexibility in mind.

Key advantages include:

• Reduced rework due to improved coating quality
• Lower energy consumption through efficient systems
• Enhanced productivity with optimized workflow

These benefits contribute to better overall business performance and customer satisfaction.

The successful completion of this custom propane-heated spray paint room highlights the importance of tailored solutions in modern coating applications. With its durable insulation, reliable heating system, high-efficiency ventilation, and intelligent control integration, the booth provides a comprehensive solution for professional workshops.

As demand for high-quality finishing continues to grow, customized spray booth systems like this will play a key role in helping businesses improve efficiency, maintain consistency, and achieve long-term success.
