Electric Heating Spray Paint Booth Improves Coating Efficiency and Workshop Safety

As industrial coating standards continue to evolve, automotive repair centers and manufacturing workshops are increasingly investing in advanced spray paint booths to achieve stable painting quality, safe working environments, and higher operational efficiency.

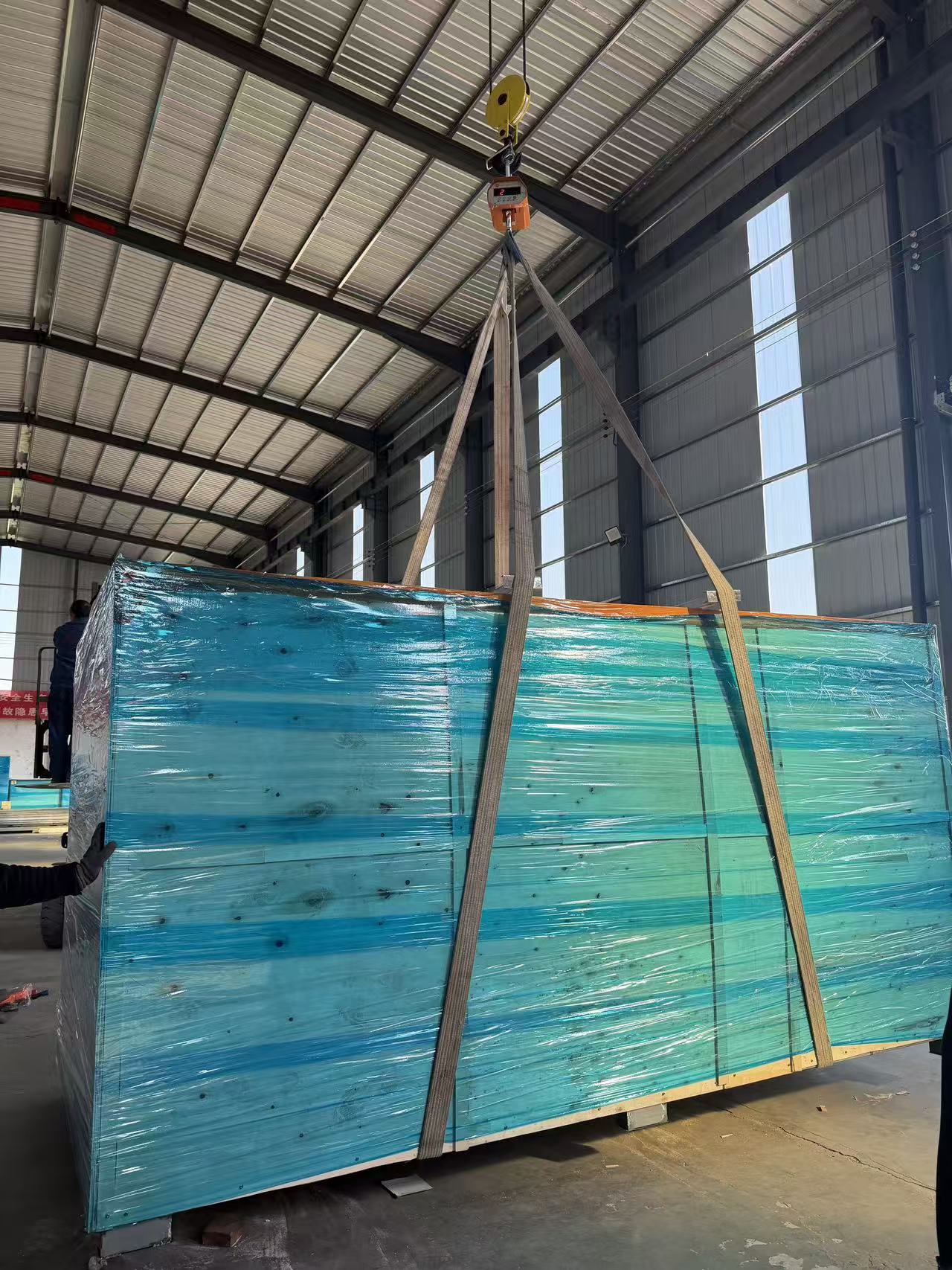

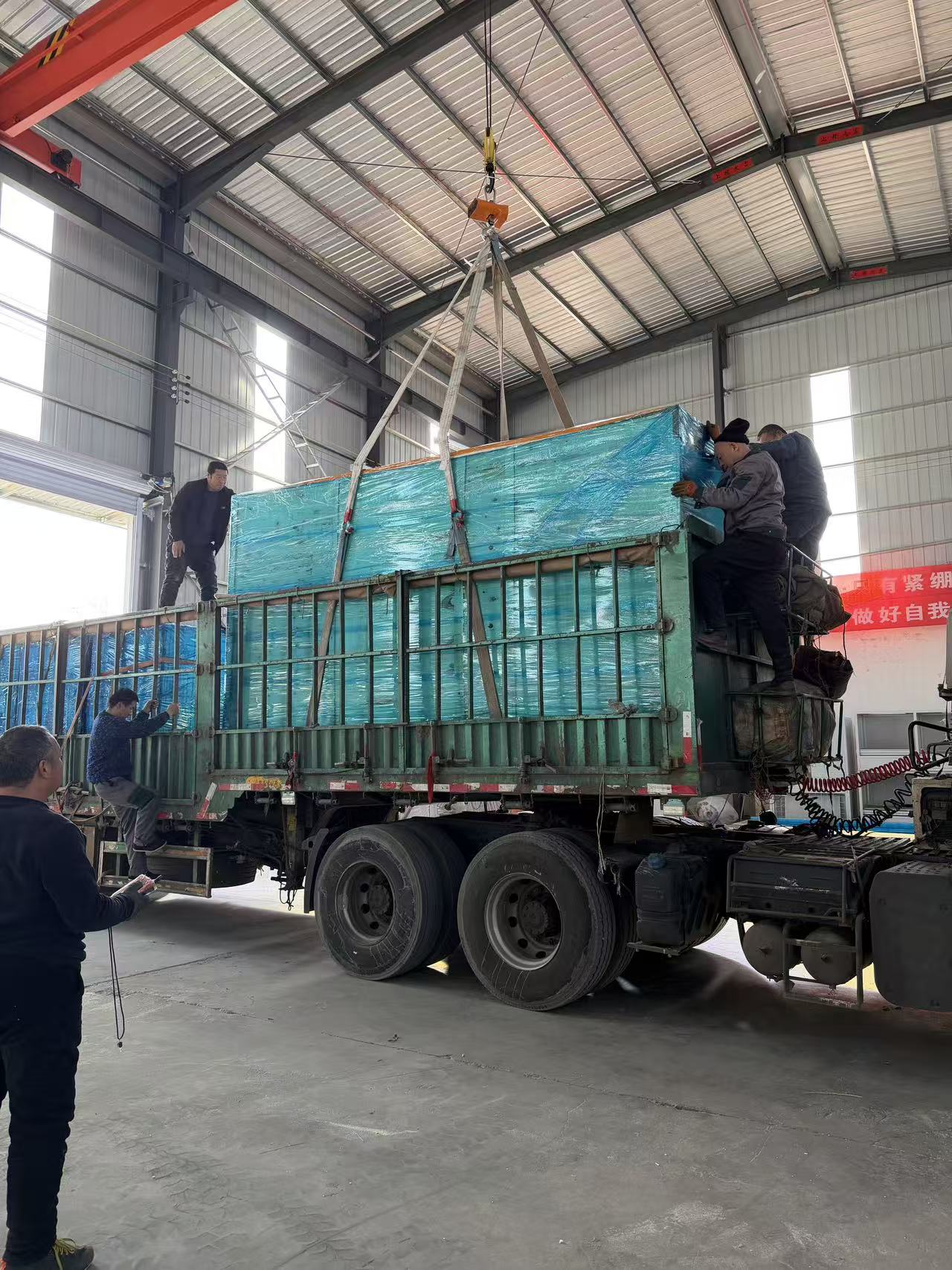

A newly delivered electric heating spray paint room represents a practical solution for businesses seeking reliable airflow performance, strong insulation capability, and energy-efficient operation. Designed with optimized structural configuration and intelligent control integration, this model supports professional coating applications across a wide range of industries.

Optimized Booth Dimensions for Professional Coating Operations

Workshop managers often prioritize spray booth size when planning facility upgrades or new installations. Adequate internal workspace is essential for ensuring smooth vehicle movement, technician accessibility, and uniform paint coverage.

This spray paint booth features:

• External dimensions: 7000 × 5100 × 3300 mm
• Internal working dimensions: 6900 × 3900 × 2650 mm

The spacious interior layout allows technicians to operate comfortably while accommodating most passenger vehicles and light commercial units.

The booth adopts a clean white color scheme, which enhances interior brightness and helps improve visual inspection accuracy during coating procedures.

Excellent Thermal Insulation and Flame-Retardant Safety Design

Maintaining stable internal temperature is critical for achieving high-quality paint finishes and reducing curing time. The booth structure utilizes 50 mm socket-type flame-retardant EPS insulation panels combined with 0.32 mm color steel plates, providing strong thermal retention performance.

Key advantages include:

• Reduced heat loss during curing cycles
• Improved fire resistance performance
• Stable temperature distribution
• Enhanced structural durability

These features support safe daily operation in high-frequency painting environments where temperature control and fire safety are top priorities.

Reinforced Bottom Structure for Long-Term Durability

A robust floor system is essential for supporting vehicle weight while maintaining ventilation efficiency.

The booth is equipped with:

• 2 heavy-duty steel grilles
• 3 patterned floor plates

This configuration improves load-bearing capacity and ensures stable vehicle positioning during painting and drying processes. The combination of grilles and patterned plates also supports efficient airflow distribution across the booth floor.

High-Efficiency Airflow System for Uniform Coating Results

Consistent airflow plays a decisive role in achieving professional paint finishes. Poor ventilation may lead to overspray accumulation, dust contamination, or uneven drying.

This spray paint booth adopts an up-supply and down-suction airflow design, which helps maintain balanced air circulation throughout the workspace.

The ventilation system includes:

• 2 sets of 3 kW double-inlet centrifugal fans
• Total air volume capacity of 16,000 m³/h

Performance benefits:

• Rapid removal of paint mist and airborne particles
• Stable airflow speed across vehicle surfaces
• Improved coating smoothness and gloss consistency
• Reduced repainting rates

Efficient ventilation also contributes to a cleaner working environment and improved technician comfort.

Energy-Efficient Electrical Heating System

Compared with fuel-based heating solutions, electrical heating systems offer advantages in terms of control precision, environmental performance, and maintenance simplicity.

This spray booth integrates a professional electrical heating system designed to support stable curing temperatures while reducing energy waste.

Key benefits include:

• Precise temperature control for different coating processes
• Lower emissions and environmentally friendly operation
• Simplified system maintenance
• Compatibility with automated control systems

Electrical heating is particularly suitable for workshops operating in environments where fuel supply logistics or emission regulations must be considered.

Bright and Uniform LED Lighting Configuration

Proper illumination is essential for achieving accurate color matching and detecting surface imperfections before curing.

The booth features:

• 8 sets of 4 × 16W high-efficiency LED lamps
• Galvanized sheet painted light box housing

Advantages of this lighting design:

• High brightness and uniform distribution
• Reduced shadow zones
• Lower energy consumption compared to traditional fluorescent systems
• Extended service life

This lighting setup helps technicians perform detailed coating work with greater precision.

Intelligent Electronic Control System for Easy Operation

Modern spray paint booths increasingly rely on integrated control systems to simplify daily operation and improve process stability.

This model includes one set of intelligent electronic control cabinets, allowing users to manage key parameters such as:

• Heating operation
• Fan activation
• Lighting control
• Safety monitoring

User-friendly control interfaces reduce operator training time and support consistent production quality.

Complete Turnkey Configuration for Quick Installation

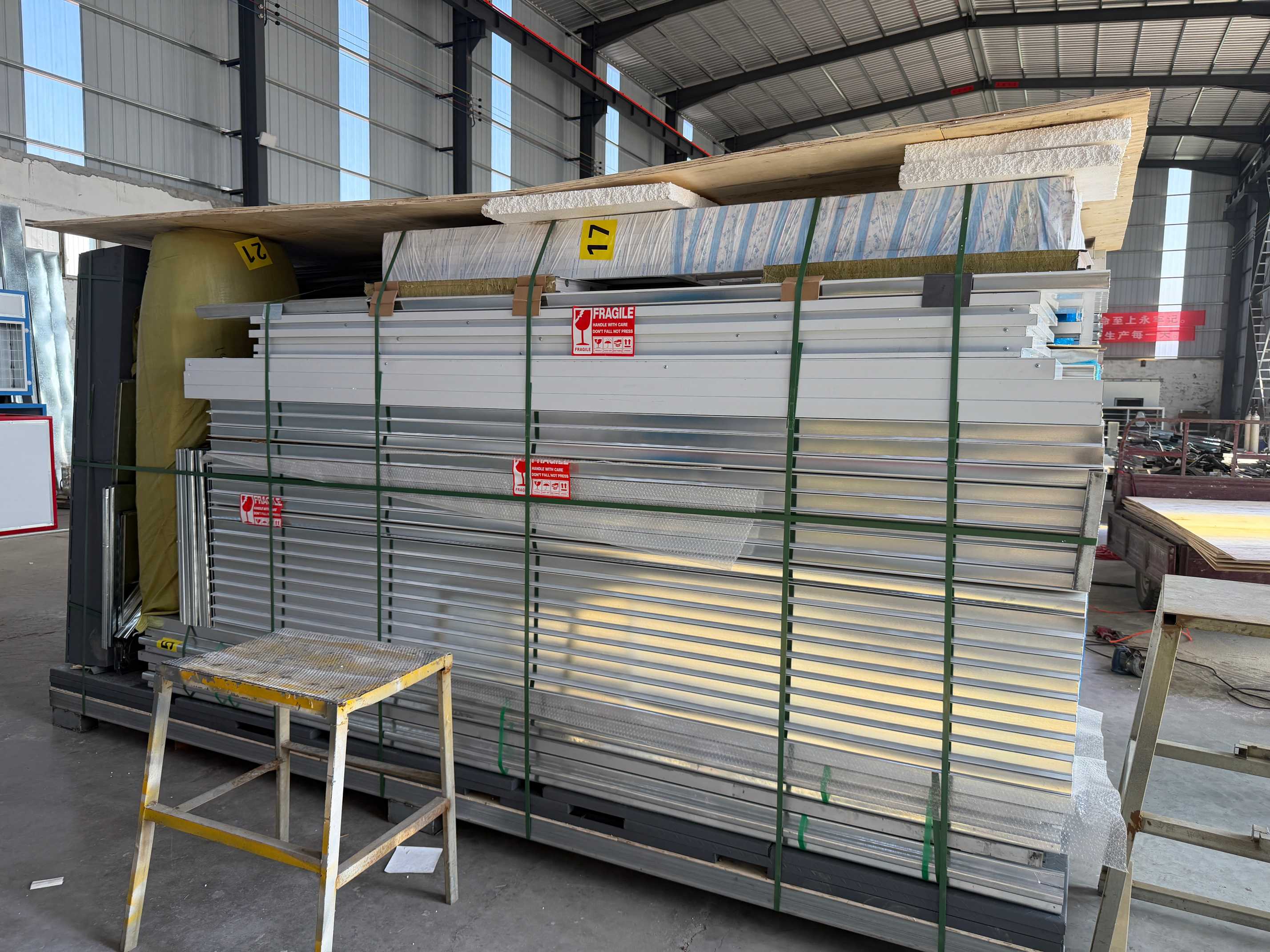

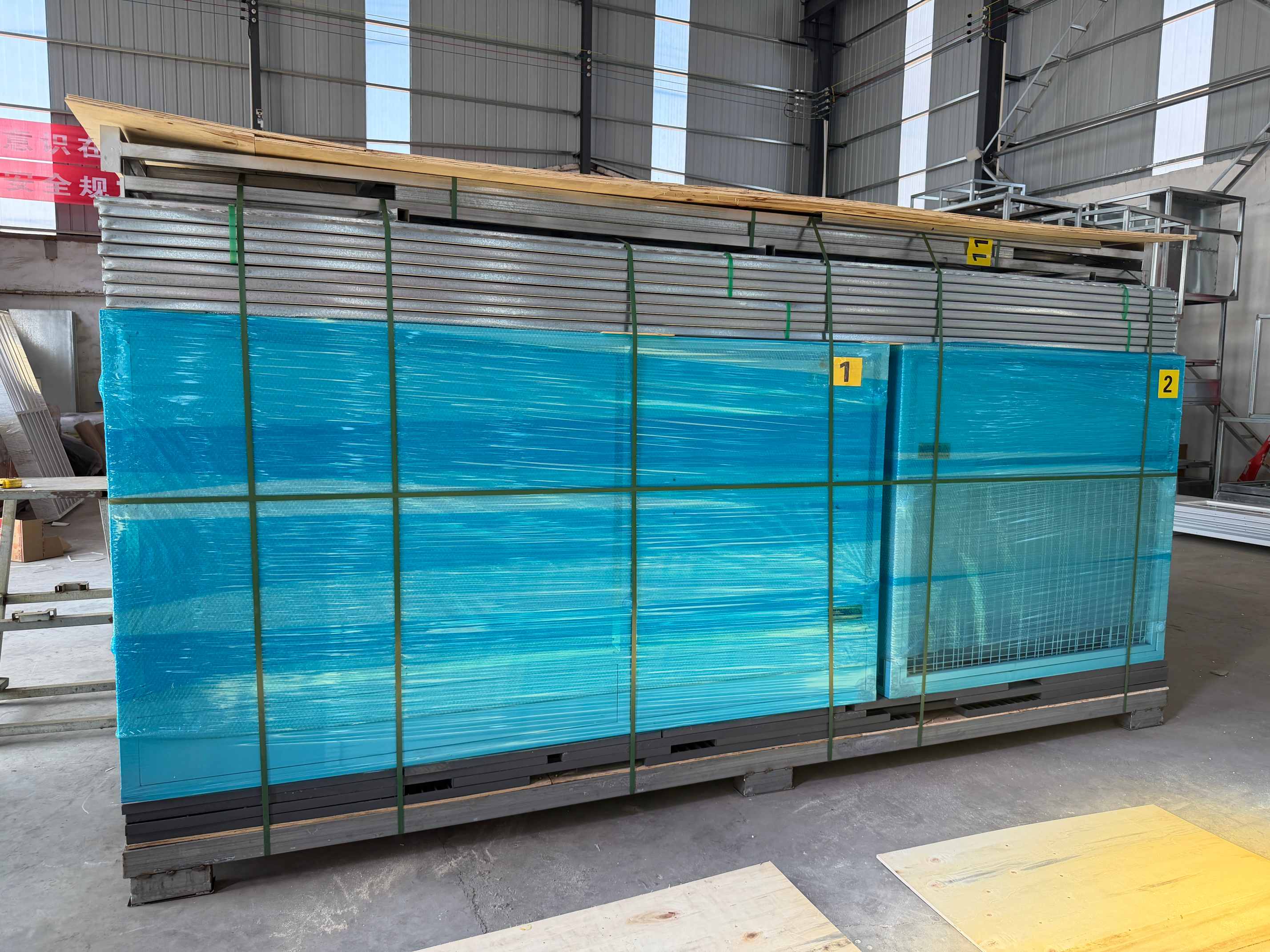

To support efficient project deployment, the spray paint booth is delivered as a complete turnkey solution, including:

• Installation auxiliary materials
• Structural components
• Electrical control systems

This comprehensive configuration minimizes additional procurement requirements and helps workshops accelerate commissioning timelines.

Standard Industrial Power Compatibility

The booth operates on a 380V, 50HZ, three-phase power supply, ensuring compatibility with most industrial and commercial electrical infrastructures.

This standard configuration allows flexible integration into existing workshop environments without requiring extensive electrical modifications.

Wide Application Across Automotive and Industrial Sectors

Thanks to its balanced design combining airflow performance, insulation capability, and energy efficiency, this spray paint booth is suitable for multiple industries.

Typical application scenarios include:

• Automotive body repair workshops
• Dealership service centers
• Commercial vehicle refinishing facilities
• Equipment refurbishment workshops
• Metal fabrication coating lines

Its modular structure also supports facility upgrades and new workshop construction projects.

Supporting Workshop Productivity and Quality Improvement

Investing in advanced spray booth systems helps businesses improve operational efficiency while maintaining consistent coating quality.

By reducing contamination risks, stabilizing curing conditions, and enhancing technician workflow, modern spray paint rooms contribute directly to improved customer satisfaction and stronger competitive positioning.

As coating technology continues to develop, integrated solutions combining ventilation engineering, intelligent controls, and energy-efficient heating will remain essential for workshop modernization strategies.

This electric heating spray paint booth demonstrates how optimized structural design, high-efficiency airflow systems, and intelligent operation controls can support professional coating applications across automotive and industrial environments.

With spacious internal dimensions, strong insulation performance, reliable ventilation capacity, and energy-saving lighting configuration, the booth provides a practical and durable solution for businesses seeking to enhance painting productivity and workplace safety.

As workshops continue to pursue efficiency improvements and quality upgrades, advanced spray booth systems will play an increasingly important role in supporting sustainable operational growth.

FAQ

1. What types of vehicles can this spray paint booth accommodate?
The internal dimensions allow it to handle most passenger cars, SUVs, and light commercial vehicles used in professional refinishing operations.

2. What is the advantage of electrical heating in a spray booth?
Electrical heating provides precise temperature control, lower emissions, easier maintenance, and improved energy efficiency compared to fuel-based systems.

3. How does the airflow system improve coating quality?
The up-supply and down-suction design ensures stable air circulation, helping remove overspray and maintain a clean painting environment.

4. Is the booth suitable for high-frequency workshop use?
Yes. The reinforced floor structure, durable insulation panels, and centrifugal fan system support continuous daily operation.

5. What power supply is required for installation?
The booth uses a standard 380V, 50HZ, three-phase industrial power system compatible with most workshop infrastructures.
