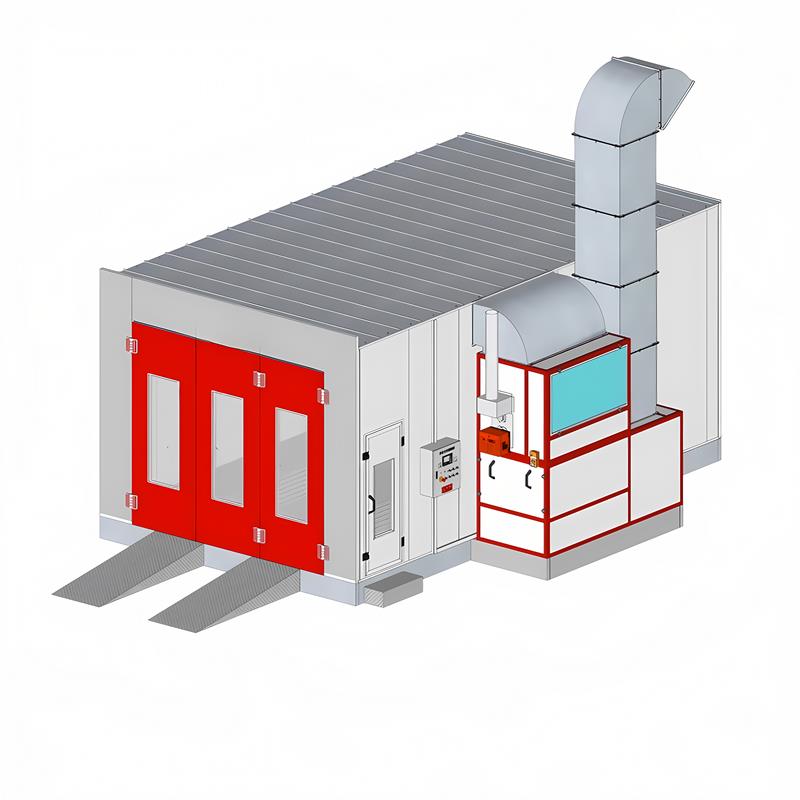

Gas Heated Spray Paint Room with 25,000m³/h Airflow for Custom Workshop Projects

A newly engineered gas heated spray paint room has been successfully completed, designed to meet the evolving demands of modern automotive refinishing and industrial coating operations. Built with a focus on customization, airflow performance, and long-term durability, this project highlights how tailored spray booth solutions can significantly improve coating quality and workshop efficiency.

Custom-Built Spray Booth Designed for Real Workshop Conditions

Every workshop operates under different spatial and operational constraints. This spray paint room was developed with a custom-first approach, ensuring the configuration matches real installation environments and workflow requirements.

Key dimensions include:

• External size: 7000 × 5250 × 3400 mm
• Internal working area: 6900 × 3900 × 2650 mm

This standard internal size provides sufficient clearance for most vehicles, allowing technicians to work comfortably while maintaining proper airflow distribution.

In addition, the system supports full customization services, including size adjustments and one-on-one design solutions based on site conditions.

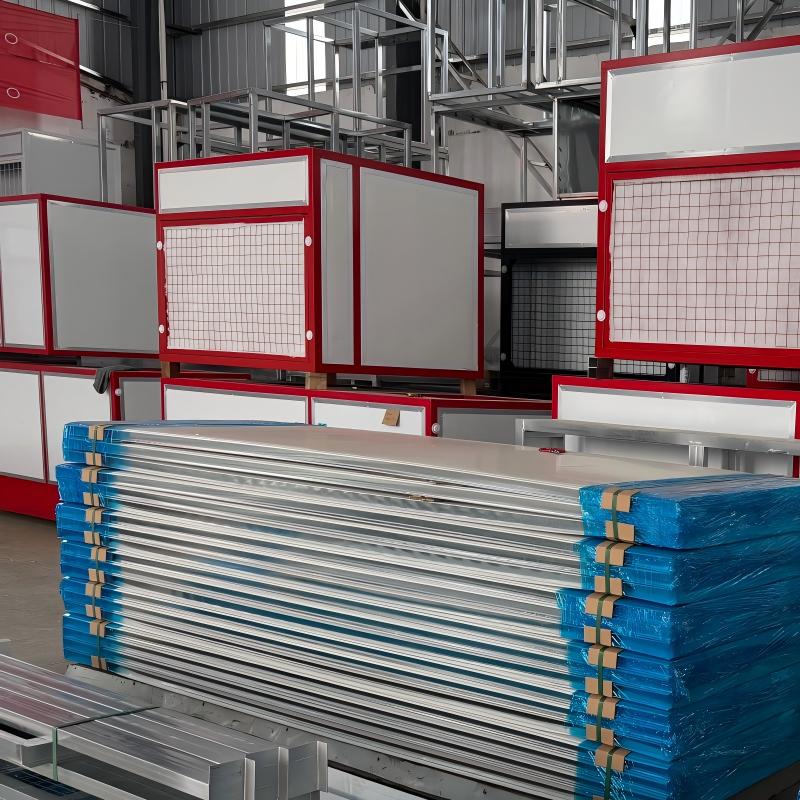

Durable Panel Structure for Thermal Stability and Safety

A controlled environment is essential for achieving consistent coating results. The spray booth is constructed using:

• 50mm socket-type flame-retardant EPS insulation panels
• 0.42mm color-coated steel plates

This structure ensures:

• Excellent heat insulation during curing cycles
• Fire-resistant safety performance
• Long-lasting structural durability

Stable internal conditions help reduce coating defects such as uneven drying or surface imperfections.

Gas Heating System with RIELLO Burner for Reliable Temperature Control

The booth is equipped with a gas heating system integrated with an Italy RIELLO FS20 burner, offering stable and efficient heat output.

Key advantages include:

• Fast and uniform temperature rise
• Consistent curing conditions
• Flexible fuel usage depending on availability

Gas heating systems are widely preferred for their efficiency and ability to maintain steady operating temperatures in continuous production environments.

High-Brightness LED Lighting for Precision Work

Proper lighting plays a critical role in achieving high-quality finishes. This spray booth features a dual-layer LED lighting system:

• Top lighting: 8 sets of 4 × 16W LED lamps (angled at 45°)
• Side lighting: 10 sets of 1 × 60W LED lamps (vertical installation)

This configuration provides:

• Even light distribution across the vehicle surface
• Reduced shadow areas
• Improved visibility for detailed spraying work

The use of energy-efficient LED technology also reduces overall power consumption.

High-Performance Ventilation System Ensures Clean Airflow

Airflow management is one of the most important factors in spray booth performance. This system is designed to maintain a clean and stable environment through:

• 2 × 4 kW double-inlet centrifugal intake fans
• Total intake airflow: 25,000 m³/h
• 1 × 7.5 kW centrifugal exhaust fan
• Exhaust airflow: 22,000 m³/h

This powerful airflow system ensures:

• Rapid removal of overspray and paint mist
• Continuous supply of clean air
• Stable air circulation during operation

Efficient ventilation helps improve coating quality while maintaining a safe working environment.

Reinforced Floor Design for Load Capacity and Airflow

The booth floor is constructed with:

• 3 steel grilles
• 2 patterned plates

This combination provides:

• Strong load-bearing capacity for vehicles
• Effective airflow distribution from the lower section
• Long-term durability under repeated use

A well-designed floor system contributes to both safety and operational efficiency.

Intelligent Control System for Easy Operation

The spray booth is equipped with a centralized intelligent electronic control cabinet, allowing operators to manage all key functions from one interface.

Control functions include:

• Heating system operation
• Ventilation control
• Lighting system management
• Safety monitoring

This simplifies operation and ensures consistent performance across different working conditions.

Flexible Power Configuration for Industrial Use

The system supports:

• 240V / 60Hz / three-phase power (optional)

This flexibility allows the booth to be installed in various industrial environments without complex electrical modifications.

Designed for Versatile Industrial Applications

This spray paint room is suitable for a wide range of applications, including:

• Automotive refinishing workshops
• Industrial coating facilities
• Equipment manufacturing plants
• Commercial vehicle maintenance

Its combination of stable heating, strong airflow, and bright lighting ensures consistent results across different coating processes.

One-Stop Customization and Reliable After-Sales Support

Beyond standard configurations, this spray booth supports custom design services, including:

• Size and layout customization
• Heating system selection
• Airflow configuration optimization

The product is backed by a 12-month quality warranty, providing users with confidence in long-term operation.

Improving Efficiency and Coating Quality

By integrating advanced airflow systems, stable heating, and intelligent controls, this spray paint room helps workshops:

• Reduce coating defects
• Improve drying efficiency
• Increase daily throughput
• Lower operational costs

These improvements directly contribute to better service quality and higher customer satisfaction.

This gas heated spray paint room with high airflow capacity demonstrates how customized engineering can address real-world workshop challenges. With durable construction, efficient ventilation, and flexible configuration options, it provides a reliable solution for businesses seeking to improve coating performance and operational efficiency.

As demand for high-quality finishing continues to grow, tailored spray booth systems will remain essential for modern industrial and automotive applications.

FAQ

1. What are the advantages of gas heating in a spray booth?
Gas heating provides fast temperature rise and stable heat output, making it suitable for continuous coating operations.

2. How does the ventilation system affect coating quality?
It removes overspray and maintains clean airflow, reducing dust contamination and improving surface finish.

3. Can the spray booth be customized?
Yes. Dimensions, airflow systems, and heating configurations can all be customized based on requirements.

4. Is the lighting sufficient for precision work?
Yes. The combined top and side LED lighting system ensures bright and shadow-free illumination.

5. What industries can use this spray booth?
It is suitable for automotive, industrial manufacturing, equipment coating, and maintenance applications.
