Heavy-Duty Auto Body Frame Machine for Faster and More Accurate Collision Repair

Accurate structural repair is critical in modern collision repair work. This heavy-duty auto body frame machine combines 100KN pulling force, 360° repair flexibility, and a 3500KG working capacity to help workshops improve repair precision, reduce downtime, and increase overall productivity.

Modern Collision Repair Requires Stronger and More Precise Equipment

As vehicle body structures continue to evolve, collision repair has become more demanding than ever. Modern cars use high-strength steel, reinforced chassis structures, and complex uni-body designs that require accurate pulling and stable hydraulic control during repair procedures.

For repair workshops, inaccurate frame correction can lead to wheel alignment issues, suspension instability, uneven tire wear, and reduced vehicle safety. That is why professional body shops increasingly rely on high-performance auto body frame machines capable of delivering controlled pulling force and stable vehicle positioning.

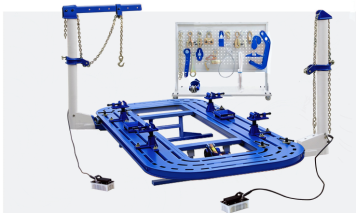

This four-tower auto body frame machine is designed specifically for professional collision repair applications. With a large working platform, dual hydraulic systems, and complete repair tooling, it helps technicians perform structural repairs more efficiently while improving repair quality and workshop productivity.

Its robust design makes it suitable for daily use in busy automotive repair environments where consistent performance and durability are essential.

Spacious Working Platform Improves Repair Flexibility

A stable and spacious platform is one of the most important factors in frame correction work. During collision repair, technicians need enough operating space to access damaged structural areas from different angles while maintaining stable vehicle positioning throughout the repair process.

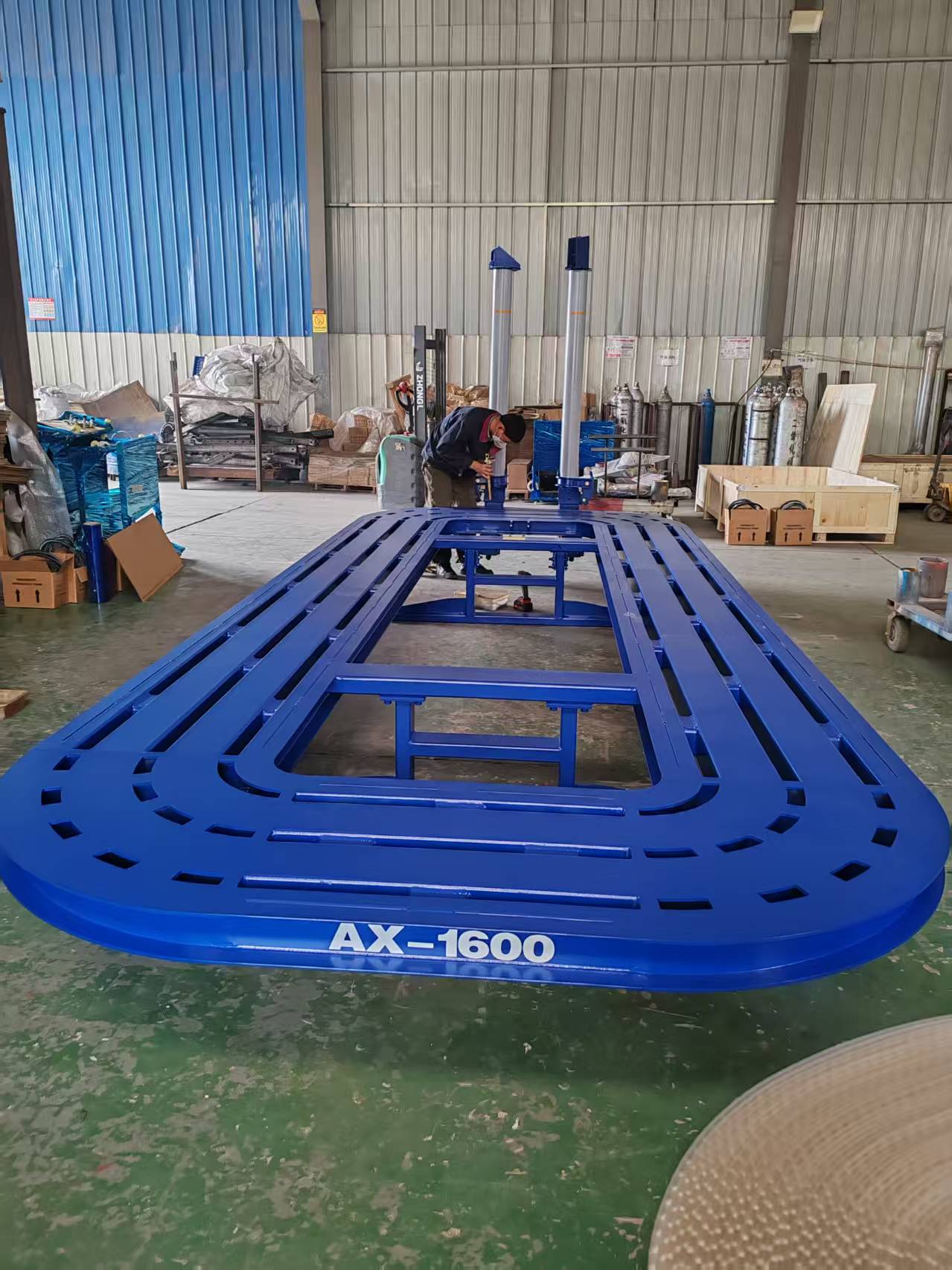

This frame straightening machine features a large workbench measuring 5600×2200×520MM, providing enough space for sedans, SUVs, pickup trucks, and many light commercial vehicles.

The platform is designed to support up to 3500KG working capacity, making it suitable for various automotive body repair applications. Whether you are handling front-end impact repairs, side collision correction, or chassis alignment procedures, the spacious platform helps simplify workflow and improve technician accessibility.

The low-profile deck height also makes vehicle loading easier while reducing operator fatigue during repeated repair operations.

For workshops handling multiple vehicle categories every day, larger working dimensions help improve operational efficiency and create a more organized repair environment.

100KN Tower Pulling Force Delivers Strong Structural Correction Capability

Collision-damaged vehicles often require powerful and accurate pulling force to restore factory structural dimensions. This machine is equipped with a heavy-duty hydraulic pulling system capable of delivering 100KN tower pulling force for demanding repair applications.

The hydraulic system operates at 70Mpa pressure, providing stable pulling performance during structural correction procedures. Strong hydraulic output allows technicians to handle severe frame deformation more effectively while maintaining better pulling accuracy.

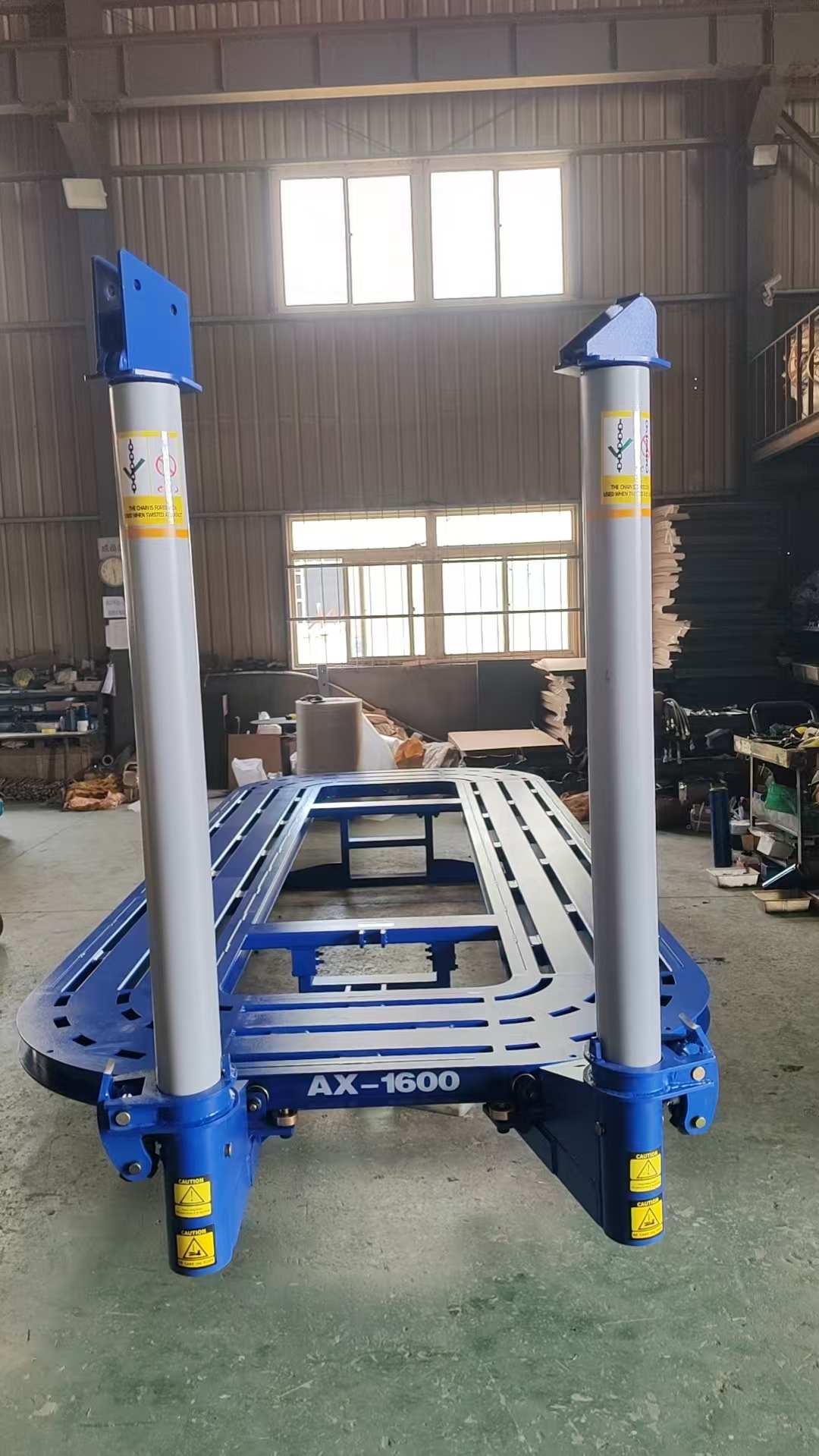

Unlike traditional repair systems with limited pulling flexibility, this machine provides full 360° working range capability. The pulling towers can rotate freely around the platform, allowing technicians to perform multi-directional pulling operations without repositioning the vehicle repeatedly.

This feature becomes especially valuable when repairing complex collision damage involving multiple impact points across the vehicle body structure.

Stable pulling force and flexible tower positioning help reduce repair time while improving correction precision during demanding repair projects.

Designed for Full-Frame and Uni-Body Vehicle Repairs

Modern repair shops need equipment capable of servicing both traditional frame vehicles and modern uni-body vehicle structures. This frame machine is designed to support both repair types efficiently.

The universal anchoring clamp system includes adjustable heights for securing different vehicle structures safely during repair procedures. Stable vehicle fixation is essential for maintaining pulling accuracy and preventing unnecessary movement during hydraulic operations.

The tilt-deck structure further improves accessibility during loading and positioning, helping technicians work more efficiently during repair preparation.

Because many modern passenger vehicles now use lightweight uni-body construction, accurate clamping and pulling control are critical for avoiding secondary structural damage during correction work.

The machine’s flexible setup makes it suitable for:

• Collision repair workshops
• Automotive body shops
• Insurance repair centers
• Vehicle restoration facilities
• Chassis correction applications
• Commercial fleet maintenance workshops

Its wide adaptability allows workshops to service multiple vehicle categories using one integrated repair solution.

Heavy-Duty Construction Supports Long-Term Workshop Operation

Repair equipment in collision centers must withstand constant heavy-duty use. Long-term structural durability directly affects repair consistency and equipment operating costs.

This frame straightening machine uses reinforced manganese steel construction to improve load-bearing strength and long-term structural stability. The heavy-duty platform design helps prevent deformation during high-pressure pulling operations.

The durable powder-coated surface finish improves corrosion resistance while maintaining a professional workshop appearance even under demanding daily conditions.

The eagle-beak-shaped guide ring structure is designed to remain tightly attached to the tower column during operation, helping prevent unwanted movement under stress conditions.

Additionally, the high-strength pulling chain provides reliable support for high-tension repair applications while improving operator confidence during structural correction work.

For workshops investing in long-term repair equipment, strong structural durability helps reduce maintenance frequency and improve overall return on investment.

Flexible Hydraulic Operation Improves Daily Workflow

Efficiency plays a major role in modern repair shop profitability. Equipment that is difficult to operate or time-consuming to set up can slow down repair schedules and reduce workshop productivity.

This machine is equipped with two air-hydraulic foot-operated pumps, allowing technicians to perform repair operations more conveniently while keeping both hands free during pulling adjustments.

The flexible control system improves operator comfort during long repair procedures and helps reduce technician fatigue during repetitive work.

Because the machine supports clear-floor operation and true 360-degree pulling capability, technicians can complete repairs more efficiently without repeatedly repositioning the vehicle or towers.

The included complete tool board further simplifies repair operations by keeping clamps, accessories, and pulling tools organized and easily accessible during repair work.

Improved workflow organization helps reduce downtime and supports faster vehicle turnaround times for busy repair businesses.

Improved Safety During Collision Repair Operations

Safety is extremely important during structural repair work involving heavy vehicles and high hydraulic pressure systems.

This frame machine is designed with stable load distribution and reinforced pulling components to improve operational safety during demanding repair applications.

The durable anchoring system helps secure the vehicle firmly throughout pulling operations, reducing movement risks during high-pressure correction work.

Stable tower positioning and controlled hydraulic output also help technicians perform repairs with greater confidence and accuracy.

For repair facilities aiming to improve both efficiency and workplace safety, professional-grade frame equipment can help create a more reliable and organized repair environment.

Suitable for Expanding Automotive Repair Businesses

As repair demand continues to grow, many workshops are looking for equipment capable of supporting future business expansion.

This heavy-duty frame machine combines versatility, durability, and repair precision into one integrated solution suitable for growing collision repair operations.

Because it supports a wide range of vehicle types and repair procedures, workshops can expand service capability without investing in multiple separate repair systems.

Its practical structure, complete tooling system, and strong pulling performance make it suitable for both independent repair shops and larger commercial collision centers.

For businesses focused on improving repair quality, customer satisfaction, and operational efficiency, dependable structural repair equipment becomes an essential long-term investment.

Main Technical Specifications

Modern collision repair requires more than basic pulling equipment. Workshops need reliable systems capable of delivering strong hydraulic performance, accurate frame correction, and long-term operational durability.

This heavy-duty auto body frame machine combines powerful 100KN pulling force, full 360-degree working flexibility, reinforced structural construction, and versatile vehicle compatibility into one professional repair solution. Its spacious platform, stable hydraulic system, and complete tooling configuration help technicians improve repair accuracy while increasing daily workshop productivity.

Whether you operate a collision repair center, automotive body shop, insurance repair facility, or restoration workshop, investing in dependable frame correction equipment can help improve repair quality, reduce downtime, and support long-term business growth.

FAQ

What is a frame straightening machine used for?

A frame straightening machine is used to repair collision-damaged vehicle frames and restore structural alignment using hydraulic pulling systems.

What types of vehicles can this machine repair?

The machine is suitable for sedans, SUVs, pickup trucks, light commercial vehicles, and both full-frame and uni-body vehicle structures.

Why is 360-degree pulling capability important?

360-degree pulling allows technicians to perform structural correction from multiple directions without repositioning the vehicle repeatedly, improving repair efficiency and accuracy.

What is the maximum working capacity of this machine?

The platform supports up to 3500KG, making it suitable for a wide range of vehicle repair applications.

Does the machine include repair tools and accessories?

Yes. The machine includes a complete tool board with clamps and repair accessories for different frame correction operations.
