Heavy-Duty Frame Straightening Machine Improves Collision Repair Accuracy and Workshop Efficiency
As modern automotive repair workshops face increasing demands for precision structural restoration, advanced frame straightening machines are becoming essential equipment for collision repair operations.
A newly engineered heavy-duty frame straightening system has been introduced to support accurate vehicle chassis correction, high-strength pulling performance, and improved technician workflow. Designed with a reinforced workbench, multi-directional tower pulling capability, and high-tension hydraulic integration, this solution enables workshops to perform reliable body frame restoration across a wide range of passenger vehicles.
With a maximum working capacity of 3500 kg, the machine supports structural repair tasks while maintaining long-term operational stability.
Large Workbench Design for Flexible Vehicle Positioning
The structural configuration of a frame straightening platform directly impacts repair efficiency and safety.

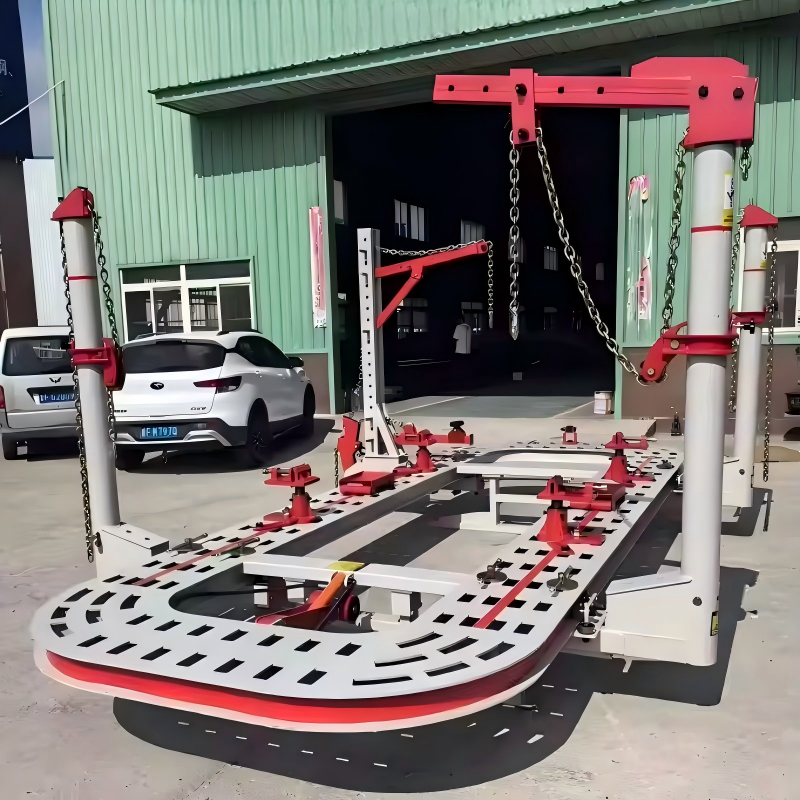

This model features a four-tower workbench structure with dimensions of 5600 × 2200 × 520 mm, providing sufficient space for technicians to position vehicles securely during pulling and calibration procedures.
The extended platform length allows workshops to accommodate various vehicle sizes, including sedans, SUVs, and light commercial models. A stable workbench height ensures ergonomic access for technicians while maintaining optimal leverage during frame correction.
The heavy-duty base construction contributes to vibration reduction and improves overall pulling precision during repair operations.
Powerful Hydraulic System Supports High-Precision Structural Correction
In collision repair scenarios, controlled hydraulic tension is required to restore damaged vehicle frames accurately.
This frame straightening machine integrates a high-pressure hydraulic system rated at 70 MPa, delivering stable pulling force for complex deformation correction tasks.
Performance advantages include:
- Smooth tension application for gradual structural restoration
- Reduced risk of secondary deformation
- Improved alignment accuracy during chassis calibration
- Reliable performance during continuous repair cycles
The hydraulic system works in coordination with high-strength chains capable of providing up to 10 tons of hydraulic tension, ensuring sufficient pulling capacity for demanding repair applications.
100 kN Tower Pulling Force for Multi-Directional Repairs
The machine is equipped with tower crane assemblies capable of generating 100 kN pulling force, enabling technicians to perform structural corrections from multiple angles.
A key advantage is the 360-degree working range, which allows tower columns to rotate freely without dead corners. This flexibility simplifies vehicle positioning and reduces the need for repeated setup adjustments.
By supporting multi-directional pulling operations, the system improves repair efficiency and helps workshops complete structural restoration tasks more quickly.
Reinforced Manganese Steel Beam Structure for Maximum Durability
Durability is critical for frame straightening equipment operating in high-load environments.
This model adopts a car beam calibrator constructed from thickened manganese steel plates, welded with 10 mm manganese steel reinforcement on both the top and bottom sections.
Key structural benefits include:
- Strong resistance to deformation under heavy loads
- Improved load distribution across the workbench
- Enhanced operational safety
- Extended equipment service life
With a maximum load capacity of 3500 kg, the reinforced beam structure supports consistent performance in daily workshop use.
Eagle Beak Guidering Design Enhances Operational Stability
Precision movement of tower components is essential for maintaining pulling accuracy.
The system incorporates an eagle beak-shaped guidering, engineered to provide strong load-bearing performance while remaining closely attached to the tower column. This design prevents unwanted lifting or displacement of the guidering during high-stress pulling operations.
As a result, technicians benefit from:
- Improved pulling direction stability
- Reduced vibration during tension application
- Enhanced safety during structural correction procedures
This innovative guidering structure contributes to smoother and more controlled repair workflows.
High-Frequency Quenched Vise for Secure Vehicle Clamping
Vehicle stability during frame straightening is crucial for achieving accurate results.
The machine’s main vise body adopts a high-frequency quenching process applied to 45# steel, significantly increasing jaw hardness and wear resistance.
Advantages of this treatment include:
- Stronger clamping force
- Higher safety factor during heavy pulling
- Reduced risk of slippage
- Longer component lifespan
Secure clamping ensures that pulling forces are transferred effectively to damaged structural sections, improving repair precision.
Thickened Plate Construction Prevents Structural Deformation
To maintain platform rigidity under repeated high-load cycles, the frame straightening system is manufactured using thickened manganese steel plates throughout key structural sections.
This reinforced construction helps ensure:
- Minimal structural deflection during pulling
- Consistent alignment performance
- Reliable long-term operation
The use of durable materials reduces maintenance frequency and contributes to lower lifecycle costs for workshop operators.
Movable Pulley System Supports Efficient Tower Rotation
The integration of a movable pulley mechanism allows tower columns to rotate smoothly across the full working range. This feature eliminates operational dead zones and provides technicians with greater flexibility when planning repair strategies.
Efficient tower mobility enables faster positioning and adjustment, improving workflow continuity in busy collision repair environments.
Suitable for Modern Auto Body Repair Workshops
This heavy-duty frame straightening machine is designed to support various automotive repair applications, including:
- Collision damage structural correction
- Chassis alignment restoration
- Panel deformation pulling
- Frame rail calibration
- Insurance repair workshop operations
- Fleet maintenance facilities
Its robust engineering and flexible pulling configuration make it suitable for workshops seeking to improve repair accuracy while increasing service throughput.
Enhancing Productivity and Customer Satisfaction
Investing in advanced frame straightening technology helps repair facilities reduce turnaround time while maintaining high restoration quality.
By enabling precise pulling control, secure vehicle positioning, and efficient multi-angle correction, modern frame racks contribute to improved repair consistency and stronger customer trust.
As vehicle structures continue to evolve toward lightweight yet high-strength materials, professional collision repair equipment will remain essential for workshop competitiveness.
This heavy-duty frame straightening machine combines reinforced structural engineering, high-pressure hydraulic performance, and multi-directional tower pulling capability to support accurate and efficient vehicle frame restoration.
With its large workbench design, 100 kN pulling force, 70 MPa hydraulic system, and durable manganese steel construction, the machine provides a reliable solution for collision repair workshops aiming to enhance operational performance and long-term equipment value.
FAQ – Frame Straightening Machine
1. What types of vehicles can this frame straightening machine repair?
It is suitable for most passenger vehicles, SUVs, and light commercial models within a working capacity of 3500 kg.
2. How strong is the pulling force of the tower system?
Each tower can provide up to 100 kN pulling force, allowing effective correction of structural deformation.
3. Does the machine support multi-directional repair operations?
Yes. The tower columns rotate 360 degrees, enabling flexible pulling angles without repositioning the vehicle.
4. What ensures vehicle stability during pulling?
A high-frequency quenched vise system provides strong clamping force and improved safety during repair.
5. How durable is the workbench structure?
The platform uses thickened manganese steel plates with reinforced welding to prevent deformation and ensure long-term reliability.
