High-Airflow Electric Spray Paint Room Supports Faster Coating Cycles and Professional Finish Quality
Automotive refinishing workshops and industrial coating facilities are increasingly seeking solutions that combine powerful airflow performance, intelligent heating control, and optimized workspace design. A newly introduced electric spray paint room provides a balanced approach to improving coating consistency while supporting faster project turnaround.
Developed for modern repair environments where efficiency, safety, and visual precision are critical, this spray booth integrates high-volume ventilation, advanced LED illumination, and durable insulated panel construction. These features allow technicians to achieve reliable painting outcomes across various vehicle refinishing and surface coating applications.
Spacious Interior Layout Enables Efficient Spray Operations
One of the most important considerations when selecting a professional spray paint booth is the available internal working space. Adequate room for vehicle positioning and technician movement helps reduce operational bottlenecks and improves overall productivity.
This spray paint room offers:
- External dimensions: 7000 × 5250 × 3400 mm
- Internal working dimensions: 6900 × 3900 × 2650 mm
The optimized internal volume allows comfortable access around the vehicle, making it suitable for most passenger cars, crossover SUVs, and light-duty service vehicles.
A well-planned booth layout helps ensure even spray coverage while supporting safe technician workflow during both painting and drying phases.
Reinforced Panel Construction Improves Thermal Stability
Temperature consistency plays a vital role in paint curing performance and coating adhesion quality. To maintain stable internal conditions, the booth adopts 50 mm socket-type flame-retardant EPS insulation panels combined with 0.42 mm color-coated steel plates.
This structural configuration offers multiple operational advantages:
- Reduced heat loss during curing cycles
- Enhanced fire safety performance
- Improved resistance to environmental temperature fluctuation
- Long-term structural reliability
Effective insulation contributes to predictable curing results and supports energy-efficient heating operation.

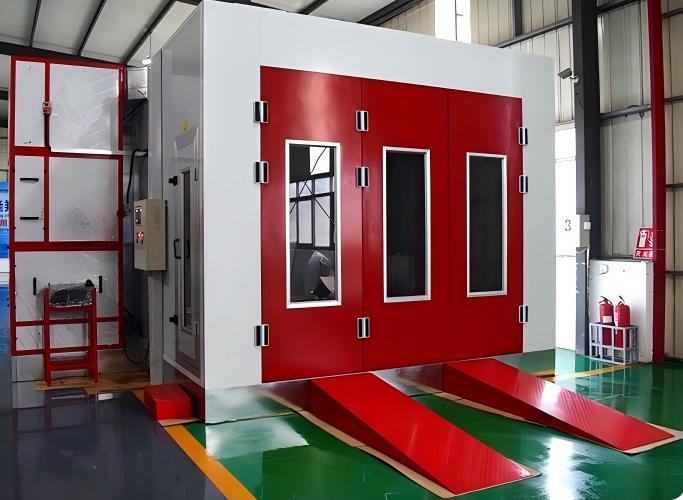

Multi-Door Access Design Enhances Workshop Workflow
Vehicle entry and exit efficiency is essential for maintaining high service throughput. The spray booth is equipped with three high-strength sheet metal doors, enabling flexible movement planning within busy workshop environments.
This configuration allows technicians to manage vehicle positioning more effectively, particularly in facilities handling multiple coating jobs per day.
Durable door construction also helps maintain booth sealing performance, ensuring stable airflow conditions during operation.
Intelligent Electric Infrared Heating Supports Controlled Curing
Compared with traditional fuel-based heating systems, electric infrared heating solutions offer improved control precision and reduced maintenance complexity.
This spray paint room integrates eight sets of 3 kW luxury infrared heating units, enabling targeted heat distribution and consistent temperature rise.
Key benefits include:
- Faster paint curing cycles
- Adjustable heating performance for different coatings
- Cleaner operation with reduced combustion emissions
- Improved energy utilization
Infrared heating technology helps workshops achieve better coating hardness and surface finish quality.

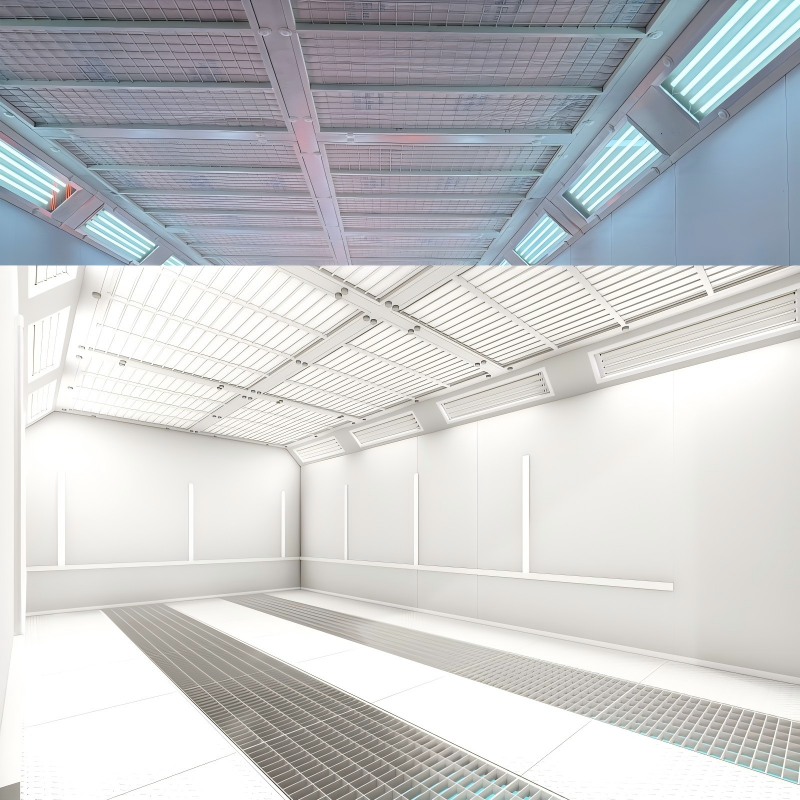

Advanced LED Lighting System Ensures Visual Accuracy
Lighting performance directly affects the ability of technicians to detect imperfections such as dust inclusions, uneven spray patterns, or color mismatch.
The booth is equipped with a comprehensive lighting configuration that includes:
- Eight sets of 4 × 16W high-efficiency LED lamps installed at a 45-degree ceiling angle
- Ten vertical 60W LED lamps for side illumination
This dual-layer lighting arrangement provides uniform brightness across all vehicle surfaces, minimizing shadow zones and improving inspection accuracy.
Energy-saving LED technology also contributes to reduced operational costs and longer maintenance intervals.
High-Capacity Ventilation System Improves Air Cleanliness
Maintaining a clean painting environment requires strong and stable airflow performance.
The ventilation system includes:
- Two 4 kW double-inlet centrifugal supply fans with total air volume of 25,000 m³/h
- One 7.5 kW centrifugal exhaust fan delivering 22,000 m³/h
This high-airflow configuration supports rapid removal of paint mist, solvent vapors, and airborne contaminants.
Operational advantages include:
- Improved coating smoothness
- Reduced risk of surface defects
- Enhanced technician comfort
- Faster booth air exchange cycles
Consistent airflow performance is particularly valuable in high-volume refinishing facilities.
Durable Floor System Supports Stable Vehicle Positioning
A reliable floor structure ensures safe load-bearing performance while maintaining proper air distribution.
The booth incorporates three steel grilles combined with two patterned plates, creating a balanced support platform that enhances both strength and airflow efficiency.
This design helps maintain stable vehicle positioning throughout painting and curing operations.
Intelligent Electronic Control Simplifies Daily Operation
Modern spray booths increasingly rely on integrated control systems to ensure consistent performance.
This model includes a complete intelligent electronic control cabinet, enabling centralized management of heating, ventilation, lighting, and safety functions.
User-friendly interfaces allow technicians to adjust operational parameters quickly, improving workflow efficiency and reducing training requirements.
Industrial Power Compatibility Supports Flexible Installation
The spray paint room is designed to operate using a three-phase electrical configuration with optional 240V / 60Hz compatibility, allowing integration into various workshop infrastructures.
This flexibility helps businesses install the booth in both new construction projects and existing repair facilities.
CE Compliance and Warranty Support Enhance Investment Confidence
The spray booth carries CE certification, demonstrating compliance with recognized safety and engineering standards.
Additionally, the system includes a 12-month quality assurance period, providing users with added confidence in equipment reliability and after-sales support.
Durable materials, robust structural engineering, and professional system integration contribute to long-term operational value.
Supporting Productivity and Service Quality Improvements
For workshops aiming to enhance customer satisfaction and increase service throughput, investing in high-performance spray paint rooms is an effective modernization strategy.
By combining strong airflow capability, intelligent heating control, and optimized lighting visibility, this booth helps technicians achieve consistent refinishing results while reducing rework rates.
Improved coating efficiency ultimately contributes to faster project completion and stronger workshop competitiveness.
This high-airflow electric spray paint room delivers a practical balance between performance, durability, and operational flexibility. With its spacious internal layout, advanced infrared heating system, powerful ventilation configuration, and intelligent electronic control integration, the booth supports professional coating applications across automotive and industrial sectors.
As refinishing standards continue to evolve, advanced spray booth systems such as this will remain essential for workshops seeking to improve productivity, maintain coating quality, and ensure safe working environments.
FAQ – Spray Paint Room
1. What types of vehicles can this spray paint booth accommodate?
It is suitable for most passenger cars, SUVs, and light commercial vehicles thanks to its spacious internal dimensions.
2. How does infrared electric heating improve curing performance?
Infrared heating provides targeted temperature control, helping coatings cure faster and more evenly.
3. What airflow capacity does the booth provide?
The ventilation system delivers up to 25,000 m³/h supply airflow and 22,000 m³/h exhaust airflow for effective air purification.
4. Does the booth support energy-efficient operation?
Yes. LED lighting and electric heating systems help reduce energy consumption compared with traditional solutions.
5. Is installation compatible with different workshop electrical systems?
The booth supports three-phase power configurations with optional voltage compatibility.
