How an Electric Heating Spray Paint Booth Improves Coating Quality and Workshop Efficiency

Stable temperature control, clean airflow, and efficient lighting are essential for achieving consistent paint finishes in modern automotive refinishing. This electric heating spray paint booth combines high-efficiency ventilation, infrared heating technology, and spacious working dimensions to help workshops improve painting quality, reduce downtime, and increase daily operating efficiency.

Growing Demand for High-Performance Spray Paint Booths

As customer expectations for vehicle refinishing continue to rise, workshops are under greater pressure to deliver smooth paint finishes, stable curing performance, and faster turnaround times. Traditional painting environments often struggle with dust contamination, uneven heating, and unstable airflow, which can lead to paint defects, longer curing cycles, and costly rework.

A professional spray paint booth helps create a controlled painting environment by managing temperature, airflow, lighting, and filtration performance throughout the entire refinishing process.

This newly exported electric heating spray paint room is designed for professional automotive refinishing applications where consistent coating quality and reliable operation are critical. With spacious dimensions, infrared heating technology, and intelligent airflow management, the system supports both productivity and long-term workshop efficiency.

Spacious Interior Design Supports Multiple Vehicle Types

A spray booth must provide enough internal space for technicians to move comfortably around vehicles while maintaining smooth airflow circulation during spraying and baking operations.

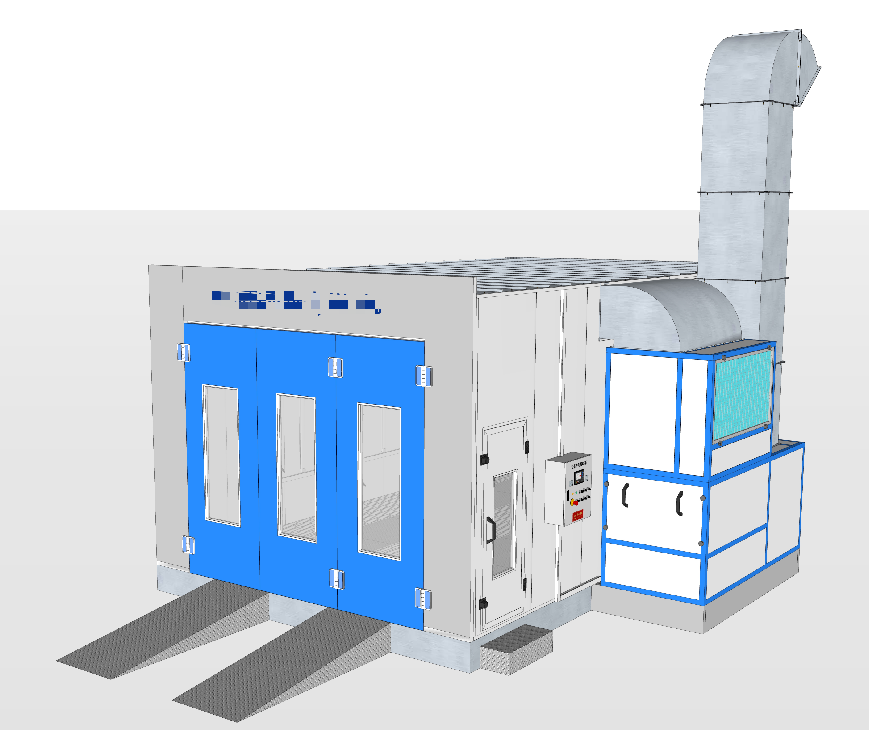

This spray paint room features external dimensions of 7000×5250×3400MM and internal dimensions of 6900×3900×2650MM. The spacious interior layout allows workshops to handle sedans, SUVs, pickup trucks, and light commercial vehicles more efficiently.

Adequate workspace improves technician accessibility during painting procedures while helping reduce overspray interference caused by cramped operating conditions.

The booth is also equipped with three aluminum alloy edge-wrapped doors and one aluminum alloy safety work door. The reinforced alloy door structure improves sealing performance while supporting long-term durability under frequent workshop use.

For workshops managing high daily vehicle volumes, spacious booth dimensions help improve workflow organization and reduce operating limitations during larger repair projects.

Flame-Retardant Insulation Structure Improves Safety and Heat Retention

Stable temperature control is one of the most important factors in automotive painting and curing applications. Poor insulation can lead to heat loss, unstable baking temperatures, and increased energy consumption.

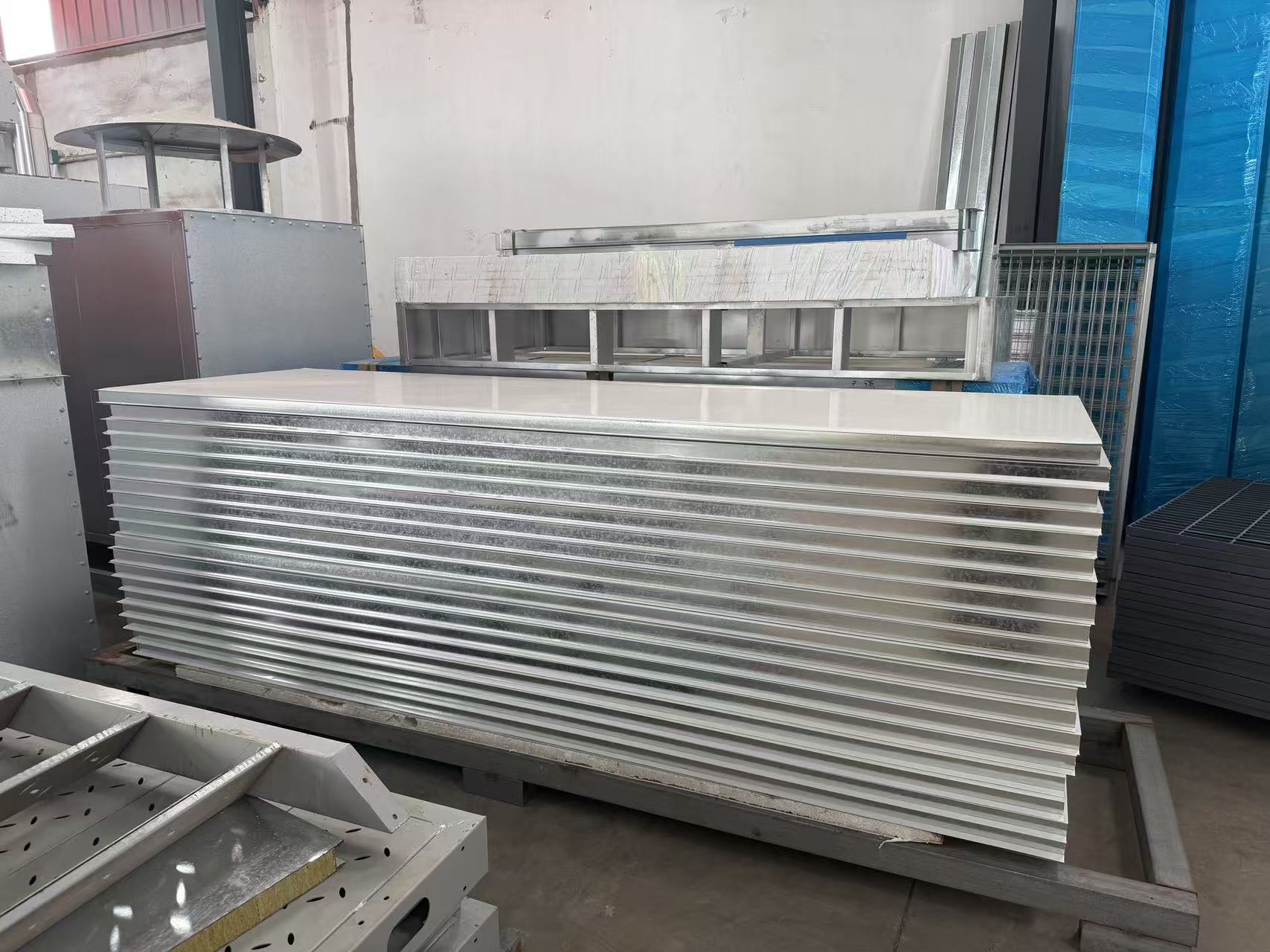

This spray booth uses 50MM socket-type flame-retardant EPS insulation panels combined with 0.42MM color steel plates. The insulated wall structure helps maintain stable internal temperatures during both spraying and baking operations.

The flame-retardant design also improves operational safety inside the workshop environment while supporting compliance with industrial painting requirements.

Because the insulation system reduces heat loss during operation, workshops can improve energy efficiency while maintaining more stable curing conditions for different paint materials.

The reinforced steel plate structure further improves long-term durability and resistance to daily industrial use.

Infrared Electric Heating Delivers Faster and More Stable Curing

Heating performance directly affects paint curing speed and coating quality. Uneven temperature distribution can cause defects such as poor gloss consistency, incomplete curing, or surface imperfections.

This spray paint room uses an advanced electric infrared heating system equipped with eight sets of 3KW luxury infrared heating units. The heating system is designed to provide fast temperature rise and stable heat distribution throughout the booth interior.

Compared with traditional heating methods, infrared electric heating improves thermal efficiency by delivering more direct heat transfer to painted surfaces. This helps reduce curing time while improving coating consistency.

The system also uses high-temperature-resistant connecting wires to improve long-term operational safety and electrical reliability under continuous heating conditions.

For workshops aiming to increase vehicle throughput and reduce waiting time between repair stages, stable infrared heating can significantly improve daily productivity.

High-Efficiency Ventilation Improves Airflow Stability

Proper airflow management is essential for achieving clean paint finishes. Insufficient ventilation can allow overspray particles and airborne contaminants to remain inside the booth, affecting coating quality and operator safety.

This booth is equipped with a powerful ventilation system that includes:

• Two 4KW double-inlet centrifugal intake fans
• One 7.5KW centrifugal exhaust fan
• Total intake airflow volume of 25000m³/H
• Exhaust airflow volume of 22000m³/H

The balanced airflow configuration helps maintain stable air circulation during spraying and curing operations. Clean airflow continuously removes overspray particles and paint fumes from the working environment while supporting smoother coating application.

Efficient ventilation also helps reduce dust contamination risks and improves overall booth cleanliness.

For professional refinishing workshops, stable airflow performance is essential for achieving consistent painting results across different vehicle surfaces and coating materials.

Dual LED Lighting Layout Improves Painting Accuracy

Lighting quality plays a major role in automotive refinishing work. Poor visibility can make it difficult for technicians to identify paint defects, uneven surfaces, or color inconsistencies during spraying procedures.

This spray booth uses a combined overhead and side lighting system designed to improve illumination coverage throughout the workspace.

The lighting configuration includes:

• Eight sets of 4×16W high-efficiency LED overhead lamps
• Ten sets of 1×60W high-efficiency LED side lamps

The dual lighting layout helps reduce shadows while providing more even brightness across vehicle surfaces. Better visibility allows technicians to inspect paint application more accurately and identify imperfections before curing.

The LED lighting system also reduces energy consumption while delivering long-term operational stability compared with traditional lighting technologies.

For workshops focused on high-end refinishing quality, strong and uniform lighting can help improve color matching accuracy and final coating consistency.

Intelligent Electrical Control Simplifies Daily Operation

Modern workshops require equipment that is not only powerful but also easy to operate and maintain.

This spray paint room is equipped with an intelligent electrical control cabinet that centralizes system management for heating, lighting, and ventilation functions.

The integrated control system simplifies daily operation while improving equipment stability during continuous workshop use. Technicians can monitor and adjust booth functions more conveniently, helping reduce operational complexity during busy repair schedules.

Stable electrical management also helps improve equipment reliability and reduce maintenance interruptions over time.

The booth operates using a 380V 50Hz three-phase industrial power system, making it suitable for various industrial workshop environments.

Suitable for Multiple Automotive Refinishing Applications

This electric heating spray paint booth is suitable for a wide range of professional automotive and industrial coating applications, including:

• Automotive body repair workshops
• Vehicle refinishing centers
• Commercial fleet maintenance facilities
• Industrial coating workshops
• Auto restoration projects
• Equipment repainting operations

Its spacious dimensions, efficient heating system, and strong airflow performance make it suitable for both independent body shops and larger automotive service centers.

Main Technical Specifications

Conclusion

Modern automotive refinishing requires more than basic painting equipment. Workshops need controlled environments capable of delivering stable airflow, efficient heating, strong lighting, and reliable long-term performance.

This electric heating spray paint booth combines spacious operating dimensions, high-efficiency ventilation, infrared curing technology, and intelligent electrical control into one integrated refinishing solution. By improving airflow stability, curing efficiency, and lighting quality, the booth helps workshops achieve smoother paint finishes while increasing operational productivity.

Whether you operate an automotive repair center, refinishing workshop, or industrial coating facility, investing in a professional spray paint room can help improve coating consistency, reduce rework, and support long-term business growth.

FAQ

What is the advantage of electric infrared heating in a spray paint booth?

Infrared heating provides faster heat transfer and more even temperature distribution, helping improve paint curing efficiency and coating consistency.

What types of vehicles can fit inside this spray booth?

The booth is suitable for sedans, SUVs, pickup trucks, and many light commercial vehicles.

Why is airflow important in a spray paint room?

Stable airflow helps remove overspray particles and paint fumes, improving coating quality and maintaining a cleaner working environment.

Does the booth provide sufficient lighting for painting work?

Yes. The combined overhead and side LED lighting system provides bright and uniform illumination for accurate paint application and inspection.

Is this spray booth suitable for continuous workshop operation?

Yes. The durable insulated structure, intelligent control cabinet, and industrial-grade ventilation system are designed for long-term professional use.
