How Can an Auto Body Frame Machine Improve Collision Repair?

Accurate structural repair is essential when a vehicle body has been distorted by a collision. An auto body frame machine gives you a controlled platform for lifting, measuring, pulling, and correcting damaged structures. With a 3,500kg working capacity, 70MPa hydraulic system, and 100kN pulling force, this model is designed for professional collision repair workshops.

An Auto Body Frame Machine for Structural Repair and Maintenance

An auto body frame machine is designed to restore vehicle body geometry after collision damage, structural deformation, or other conditions that affect chassis alignment.

Instead of relying on manual pulling methods, you can secure the vehicle on a stable workbench and apply controlled hydraulic force to damaged structural areas. This helps technicians carry out body correction more systematically and makes it easier to compare repair progress with vehicle measurement data.

This model uses a workbench measuring 5600 × 2200mm and supports vehicles up to 3,500kg working capacity. The deck height can be adjusted from 340mm to 1050mm, giving you flexibility when loading a vehicle and performing different repair operations.

The main specifications include:

• Workbench size: 5600 × 2200mm
• Deck height: 340–1050mm
• Hydraulic system pressure: 70MPa
• Required air pressure: 0.8MPa
• Tower pulling force: 100kN
• Working capacity: 3,500kg

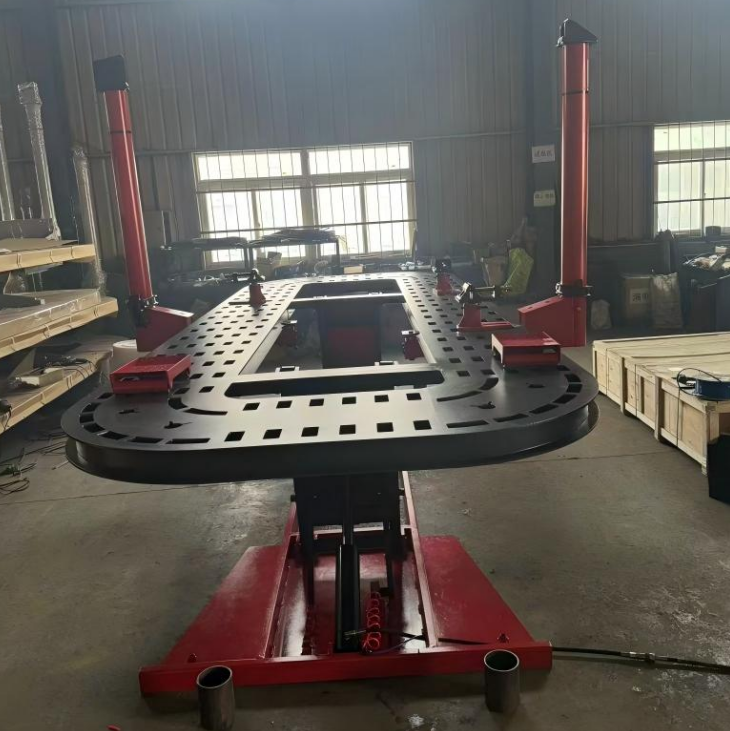

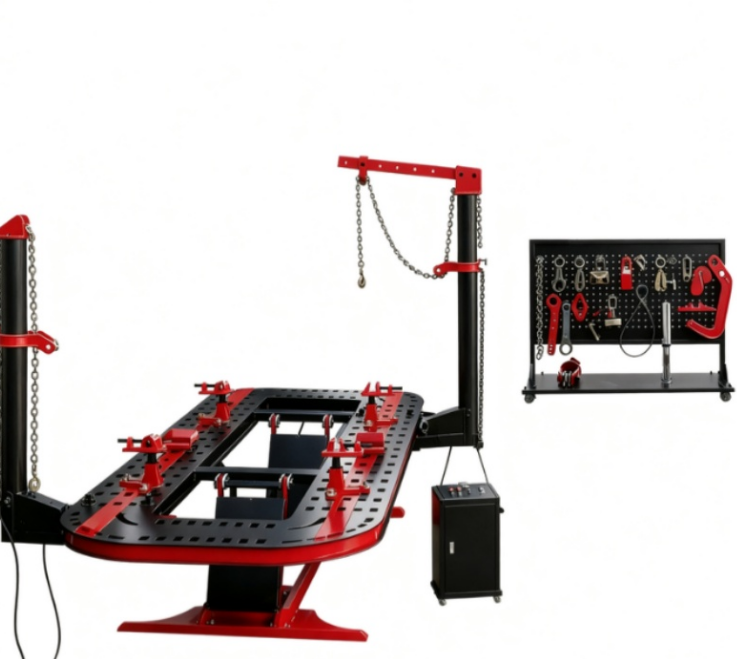

The 4000 model also includes an overall lifting function and a complete vehicle maintenance board, allowing the equipment to support both body correction and selected lifting or maintenance work.

A 5600mm Workbench Provides Room for Different Vehicle Types

Workbench dimensions directly affect how easily a frame machine can accommodate different vehicle sizes.

With a platform length of 5600mm and width of 2200mm, this model provides a practical working area for many passenger cars and SUVs within the rated capacity. The long bench gives technicians enough room to secure the vehicle, position clamps, and arrange pulling points around damaged sections.

For a collision repair workshop that handles mixed vehicle models, platform size matters because body dimensions and wheelbases vary considerably.

A larger workbench also gives technicians more flexibility when working on front, rear, or side collision damage. Instead of forcing the vehicle into a restricted repair area, you can position it according to the damage location and correction plan.

Before placing a vehicle on the frame machine, you should still confirm its weight, overall dimensions, wheelbase, jacking points, and clamping locations. Equipment capacity should always be matched to the actual vehicle rather than judged only by body type.

Adjustable Deck Height Makes Loading and Repair Work Easier

The deck height on this frame machine can be adjusted from 340mm to 1050mm.

This adjustable range helps simplify vehicle loading while also providing a more suitable working height for different repair tasks. A lower platform position makes it easier to move a damaged vehicle onto the machine, while a raised working position can improve technician access during structural correction or maintenance.

For workshops handling accident-damaged vehicles, easy loading is important because some vehicles cannot move under their own power. A platform that can be positioned lower can reduce the difficulty of bringing damaged vehicles into the repair area.

The lifting function also increases the machine's versatility. The 4000 model is designed not only for frame correction but also for simple lifting and vehicle maintenance.

That means one machine can support several workshop tasks instead of being limited to a single repair process. For businesses trying to improve space utilization, this combined functionality can be particularly useful.

70MPa Hydraulic Pressure Supports Controlled Frame Correction

Structural correction requires enough force to move damaged metal back toward its intended position, but force must also be applied in a controlled way.

This auto body frame machine uses a hydraulic system rated at 70MPa. The hydraulic system provides the power required for pulling and adjustment operations during collision repair.

The tower pulling force reaches 100kN, giving technicians the ability to correct substantial body deformation within the machine's operating limits.

For practical repair work, high pulling force is useful only when it is applied at the correct location and direction. Technicians must first identify the damaged structural area, secure the vehicle correctly, and monitor dimensions throughout the correction process.

Rather than applying maximum force continuously, professional frame repair usually involves a sequence of controlled pulls, measurements, and adjustments.

This approach helps reduce the risk of over-correction and allows technicians to restore the vehicle structure more accurately.

The Pulling Tower Helps Restore Vehicle Body Geometry

One of the main functions of a professional frame straightening machine is to apply correction force from suitable angles around the vehicle.

The pulling tower on this model provides up to 100kN of pulling force. This allows technicians to work on collision damage affecting structural areas such as side members, front sections, rear sections, and other body frame components.

When a vehicle experiences a strong impact, deformation may spread beyond the visibly damaged panel. Structural points can shift, affecting door alignment, suspension geometry, wheel positioning, and fit between body panels.

Using a frame machine allows you to secure the vehicle first and then pull specific areas according to measured deformation.

The goal is not simply to make the exterior look straight. Correct body repair should bring structural dimensions back toward the manufacturer's specified geometry so later assembly, wheel alignment, and road operation can be completed more reliably.

Body Geometry Correction Can Reduce Secondary Repair Problems

Incorrect structural dimensions can create additional problems even after cosmetic damage has been repaired.

For example, a distorted body structure may contribute to uneven tire wear, poor wheel alignment, irregular panel gaps, difficulty closing doors, or stress on suspension and steering components.

By correcting the underlying vehicle geometry, a professional auto body frame straightening machine helps address the structural cause rather than only the visible damage.

This is especially important for workshops that want to reduce repeat repairs. If technicians replace panels or perform surface finishing before checking body geometry, hidden structural deformation may remain and become more difficult to correct later.

Using the frame machine earlier in the collision repair process allows you to verify the vehicle structure before moving on to panel repair and painting.

That creates a more organized repair workflow and helps maintain more consistent quality across different jobs.

Overall Lifting Function Expands Workshop Use

The 4000 model includes an overall lifting function and a complete vehicle maintenance board.

This feature allows the frame machine to perform selected lifting and maintenance tasks in addition to body correction. For workshops with limited floor space, combining functions can help improve equipment utilization.

Instead of keeping the frame machine idle between major collision repair jobs, you can use the lifting function for simpler maintenance operations when appropriate.

The adjustable deck height also improves technician access during these tasks.

However, the frame machine should still be used according to its specified working capacity and approved operating procedures. A body repair bench with lifting functionality should not automatically be treated as a replacement for every type of dedicated automotive lift.

Before using it for a particular maintenance job, you should confirm vehicle support points, lifting procedures, working clearance, and the manufacturer's permitted applications.

3,500kg Working Capacity Covers Common Repair Vehicles

The rated working capacity is 3,500kg, making this frame machine suitable for many passenger vehicles and SUVs within that weight range.

This capacity provides useful flexibility for collision repair businesses that handle different vehicle sizes rather than specializing only in compact cars.

Vehicle compatibility still depends on more than total weight. Wheelbase, body dimensions, center of gravity, clamping position, and damage condition should all be considered before placing a vehicle on the machine.

A heavily damaged vehicle may also require special loading procedures because suspension components or wheels may no longer be positioned normally.

For this reason, the workshop should evaluate each damaged vehicle before loading it onto the frame bench.

Providing technicians with clear operating procedures for loading, clamping, lifting, and pulling helps protect both the vehicle and the equipment.

0.8MPa Air Pressure Supports Pneumatic Functions

The required operating air pressure for this model is 0.8MPa.

The workshop should confirm that its compressed air system can provide stable pressure before installation and commissioning. Inconsistent air supply can affect pneumatic functions and make daily operation less predictable.

Before ordering, you should review the available air compressor capacity, pipe size, moisture control, filtration, and connection points.

Compressed air quality also matters. Excessive moisture or contamination can shorten the service life of pneumatic components over time.

Including air supply requirements in the installation plan helps avoid delays after the equipment arrives and allows the machine to be commissioned more efficiently.

How This Frame Machine Fits a Professional Collision Repair Workflow

A frame machine works best when it is integrated into a structured collision repair process rather than used as an isolated piece of equipment.

The vehicle is first inspected to identify visible and structural damage. Technicians then position and secure the vehicle on the workbench before measuring key body dimensions.

Correction force can then be applied through the hydraulic pulling system while technicians repeatedly check the structural data.

Once the body geometry has been restored to the required condition, the repair can move to panel replacement, welding, surface preparation, painting, wheel alignment, and final inspection.

This process helps you separate structural correction from cosmetic finishing.

For professional body shops, that distinction is important because a vehicle can appear visually repaired while still having inaccurate underlying geometry.

A suitable auto body frame machine provides the stable foundation needed to complete structural work before the vehicle moves to later repair stages.

What Should You Confirm Before Buying an Auto Body Frame Machine?

The right frame machine should match the vehicles you repair, the type of collision work you perform, and the available workshop space.

You should first confirm vehicle weight range, wheelbase, body length, common damage types, and the pulling force required for your typical repair jobs.

Workshop conditions also matter. Check floor strength, available installation area, compressed air supply, hydraulic service requirements, and space around the machine for technicians to work safely.

You should also request the final technical drawings, hydraulic diagram, operating manual, maintenance instructions, clamping details, measurement options, spare-parts list, and factory inspection records.

No specific certification information was included in the supplied product data, so certification should not be assumed. If your market requires specific automotive repair equipment, electrical, hydraulic, or workplace safety standards, confirm the applicable documentation with the supplier before purchasing.

Frequently Asked Questions

What is an auto body frame machine used for?

An auto body frame machine is used to secure, measure, pull, and correct vehicle bodies that have been deformed by collisions or other structural damage. Its main purpose is to help restore vehicle body geometry before later repair and refinishing work.

Can this frame machine handle SUVs?

The machine has a working capacity of 3,500kg and can accommodate many passenger cars and SUVs within the rated capacity. Vehicle dimensions, weight, clamping positions, and damage condition should be checked before use.

What does the 100kN pulling force mean?

The pulling tower can provide up to 100kN of correction force. This force is used to straighten damaged structural areas, but technicians should apply it in accordance with the repair plan and measurement results rather than simply using maximum force.

Can the frame machine also be used as a vehicle lift?

The 4000 model includes an overall lifting function and a complete maintenance board, allowing selected lifting and maintenance tasks. The permitted applications should still follow the manufacturer's operating instructions and rated working capacity.

Conclusion

This auto body frame machine combines a 5600 × 2200mm workbench, adjustable 340–1050mm deck height, 70MPa hydraulic system, 100kN tower pulling force, and 3,500kg working capacity for professional collision repair applications. The 4000 model also adds an overall lifting function and maintenance board, giving workshops more flexibility beyond structural correction.

For body shops repairing collision-damaged sedans and SUVs, the machine provides a stable platform for vehicle securing, hydraulic pulling, geometry correction, and selected maintenance work. By matching the equipment to your vehicle range, workshop layout, air supply, repair process, and required documentation before purchase, you can build a more consistent and efficient body repair workflow.
