How Does a 3500kg Underground Car Lift Save Workshop Space?

When workshop space is limited, the type of vehicle lift you install can affect daily productivity, vehicle flow, and technician safety. A 3500kg underground car lift combines flush-floor installation with a 1800mm lifting height, giving you clear access around the vehicle while keeping the service bay open, organized, and easier to use.

A Flush-Mounted Car Lift Keeps the Service Bay Clear

Traditional above-ground lifting equipment can occupy valuable workshop space even when it is not being used. Columns, platforms, ramps, and supporting structures may restrict vehicle movement, create obstacles for technicians, and make it harder to use the same bay for different services.

An underground car lift addresses this issue by placing the main lifting structure below floor level. When the platforms are fully lowered, the lift remains almost flush with the workshop floor. This creates a cleaner and more flexible working area without permanent above-ground obstructions.

For automotive workshops where every square meter matters, a flush-mounted inground vehicle lift can improve the way vehicles enter, leave, and move between service positions. You can use the bay for inspection, tire service, general maintenance, vehicle cleaning, or temporary parking without large lifting structures interfering with the available space.

This installation style is particularly practical for modern repair centers, tire shops, wheel alignment facilities, dealership workshops, and high-end service bays where both appearance and floor efficiency are important.

A 3500kg Lifting Capacity Covers Common Passenger Vehicles

The lift is rated for a maximum load of 3500kg, making it suitable for a broad range of passenger vehicles commonly serviced in independent workshops and automotive maintenance centers.

You can use it for compact cars, family sedans, crossovers, many SUVs, hybrid vehicles, and selected electric passenger vehicles, provided the total vehicle weight and lifting-point arrangement remain within the manufacturer’s operating requirements.

A 3.5-ton underground car lift offers a practical balance between structural capacity and workshop versatility. It provides more flexibility than lighter tire-service equipment without requiring the larger structure associated with lifts intended for heavy commercial vehicles.

This capacity is especially useful if your workshop handles vehicles with different body sizes throughout the day. Instead of dedicating separate bays to different passenger vehicle categories, you can use one professional inground lifting system for several common maintenance applications.

Before lifting any vehicle, you should always confirm its actual curb weight, weight distribution, recommended lifting points, and compatibility with the platform layout. Rated capacity alone does not replace correct vehicle positioning.

The 1800mm Working Height Gives You Full Underbody Access

One of the main advantages of this underground car lift is its maximum lifting height of 1800mm.

Unlike a mid-rise lift designed mainly for tire and brake work, an 1800mm underground vehicle lift raises the car high enough for technicians to stand beneath many passenger vehicles. This makes it suitable for a wider range of underbody inspection and repair tasks.

At full working height, you can access the exhaust system, suspension components, chassis, brake lines, drivetrain areas, steering components, and lower engine sections more comfortably. Technicians can work from a more natural standing position instead of repeatedly kneeling, bending, or moving low-profile equipment around the vehicle.

Improved working posture can help reduce physical fatigue during long shifts. It also gives technicians a clearer view of the vehicle underside, which can make inspection work more systematic and help identify leaks, damaged components, corrosion, or loose fittings.

The combination of flush-floor installation and full working height makes this lift useful for workshops that want a clean floor layout without giving up practical underbody access.

Platform Dimensions Support Stable Vehicle Positioning

Each platform measures 1560mm in length and 550mm in width. These dimensions provide a stable supporting surface while keeping the overall lifting area compact enough for space-conscious workshop layouts.

The platform design is suitable for common passenger vehicle service where technicians need dependable support and clear access to the wheels and lower body.

Correct positioning remains essential. The vehicle must be centered according to the approved lifting procedure, and the contact areas must align with suitable structural lifting points. Uneven positioning can affect stability even when the vehicle is below the maximum rated weight.

For wheel alignment preparation, tire servicing, brake work, and general inspection, the platform layout gives you an open working area around the vehicle. Unlike drive-on systems with long fixed runways, the shorter lifting platforms can leave more of the wheels and underbody accessible during maintenance.

The minimum lowered height is 330mm. Because this is an underground installation, the final approach arrangement depends on the foundation design, installation depth, surrounding floor construction, and ramp or recess configuration used in the workshop.

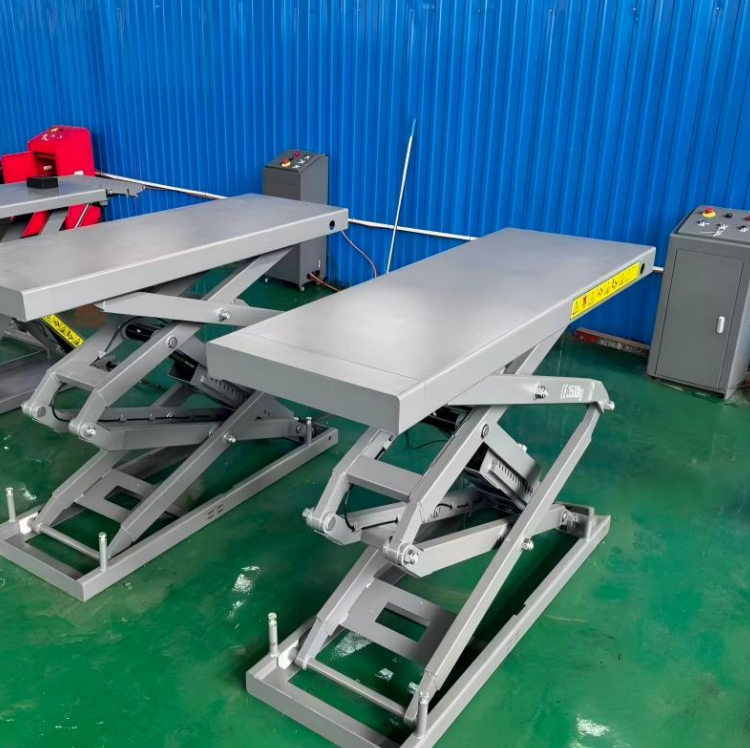

Synchronous Dual Cylinders Help Keep the Lift Level

Stable lifting is especially important when technicians are working around or underneath a raised vehicle.

This underground car lift uses a synchronous dual-cylinder lifting system designed to raise both sides smoothly and reduce the risk of platform imbalance. By coordinating the lifting movement, the system helps maintain a level vehicle position throughout the lifting cycle.

A synchronized hydraulic system is particularly valuable when vehicle weight is not distributed perfectly evenly between the front and rear axles. Although correct positioning is still required, coordinated cylinder movement helps the lift respond more consistently during raising and lowering.

The hydraulic system is powered by a 2.2kW motor and completes the lifting process in approximately 50 to 60 seconds. This speed is practical for professional workshop use because it provides controlled movement without creating unnecessary waiting between service stages.

Smooth operation also reduces sudden movement that could affect vehicle stability or technician confidence. For workshops handling multiple service appointments each day, predictable lifting performance supports a more organized workflow.

Underground Installation Creates a More Flexible Workshop Layout

The greatest benefit of an inground car lift is not simply that part of the machine is hidden below the floor. The real advantage is the additional flexibility it gives you when planning the workshop.

With no permanent posts positioned beside the vehicle, technicians can approach the service area from different directions. Doors can usually be opened more easily, tool carts can be moved closer to the working area, and the bay can feel less crowded during inspection and maintenance.

A clear floor arrangement can also improve vehicle circulation, particularly in workshops with narrow entrances or several service positions installed close together. When the lift is lowered, the space may be used more efficiently for vehicle movement or other workshop activities.

This type of installation is often selected for premium automotive workshops because it creates a cleaner visual appearance. The service area looks more open, and the lifting equipment does not dominate the workshop environment.

However, underground installation requires more planning than placing a portable or surface-mounted lift on an existing floor. Foundation dimensions, drainage, waterproofing, pit construction, concrete strength, hydraulic routing, electrical supply, and future service access should all be confirmed before installation begins.

Suitable for Wheel Alignment and Tire Service Applications

A 3500kg underground car lift is well suited to workshops that perform tire replacement, wheel inspection, brake servicing, suspension checks, and wheel alignment preparation.

Because the lift keeps the surrounding floor area clear, technicians have convenient access to the wheels. This can simplify tire removal, brake component inspection, steering checks, and suspension diagnosis.

For wheel alignment operations, the exact configuration must match the alignment process used in your workshop. Some alignment applications require turntables, slip plates, level compensation, or additional platform accessories. These requirements should be confirmed before production or installation rather than assumed from lifting capacity alone.

The lift can also support routine chassis inspections, oil changes, exhaust work, underbody cleaning, and general preventive maintenance.

Its strongest value is versatility. You are not limited to one highly specialized service. Instead, the same underground lifting system can support several common workshop jobs while preserving a clean and efficient floor layout.

CE Certification Supports Equipment Compliance Review

The lift is supplied with CE certification, providing an important compliance reference for buyers evaluating automotive lifting equipment.

CE documentation does not remove the buyer’s responsibility to verify local installation and workplace requirements. Electrical regulations, foundation standards, occupational safety rules, inspection procedures, and permitted equipment use may differ between markets.

Before commissioning the lift, you should confirm that the supplied documentation matches the exact model and configuration purchased. The technical file should correspond with the rated lifting capacity, hydraulic system, electrical specification, safety devices, and intended application.

Professional installation, commissioning, operator training, and scheduled inspection remain necessary even when certified equipment is supplied.

For international buyers, reviewing conformity documents before shipment can reduce delays during installation and help ensure that the selected configuration is appropriate for the destination workshop.

Anti-Leakage Design Supports Hydraulic Reliability

Hydraulic leakage can lead to reduced lifting performance, contamination around the equipment, increased maintenance work, and unexpected downtime.

This underground vehicle lift uses an anti-leakage hydraulic design intended to improve long-term operating reliability. The cylinder system and hydraulic components are designed to maintain controlled pressure during regular lifting cycles.

Because much of the system is installed below floor level, routine inspection is especially important. Hydraulic hoses, connections, seals, cylinders, valves, and fluid condition should be checked according to the maintenance schedule.

The installation pit should also remain clean and dry. Water accumulation, dirt, oil contamination, and poor drainage can shorten the service life of underground components.

A properly installed and maintained hydraulic system can provide smooth operation over many years. However, long service life depends on regular inspection, correct hydraulic oil, clean operating conditions, and timely replacement of worn seals or hoses.

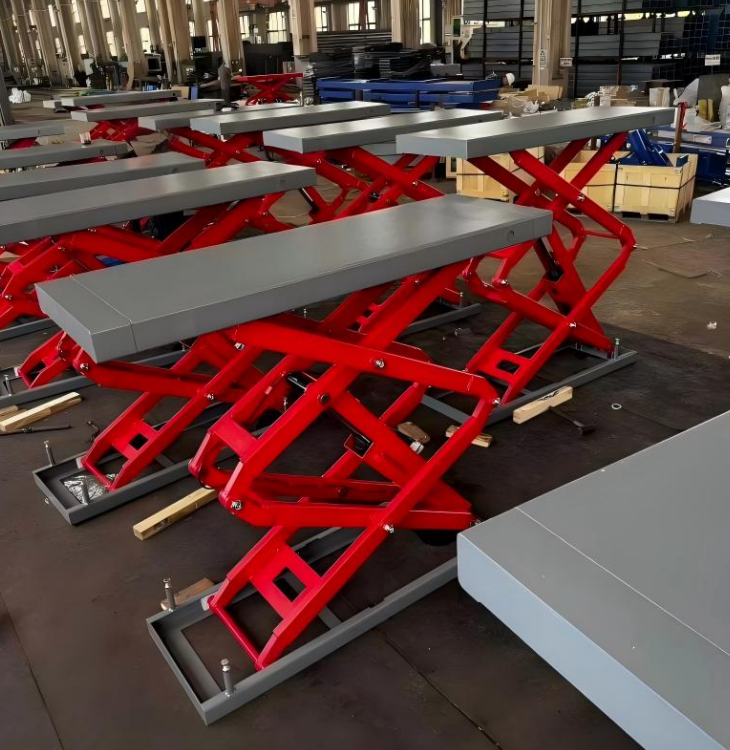

Shot Blasting and Powder Coating Improve Surface Durability

Automotive workshop equipment is regularly exposed to dust, moisture, oil, cleaning chemicals, metal particles, and mechanical wear. Surface treatment therefore plays an important role in protecting the steel structure.

Before coating, the lift structure undergoes shot blasting to remove surface contaminants and prepare the steel for finishing. This process helps create a cleaner surface and supports stronger coating adhesion.

The structure is then finished with electrostatic powder coating. Once cured, the coating forms a durable protective layer that helps resist corrosion, scratches, and routine workshop wear.

This treatment is particularly useful for an underground lift because some components operate close to floor-level moisture and workshop contaminants. Surface protection cannot replace drainage or proper pit maintenance, but it provides an additional barrier against corrosion.

To preserve the coating, damaged areas should be repaired promptly. Deep scratches, impact damage, or exposed steel should not be left untreated in humid working environments.

Electrical Configuration Matches Common Single-Phase Workshops

The lift is equipped with a 2.2kW motor and can be configured for 220V, 50Hz, single-phase power.

This electrical arrangement is commonly used in smaller automotive workshops where three-phase power may not be available. It can simplify equipment integration, provided the local circuit, breaker capacity, wiring, grounding, and voltage stability meet the machine’s requirements.

Electrical compatibility should always be confirmed before production. The buyer should provide the exact operating voltage, frequency, phase, socket or connection requirements, and applicable local electrical standards.

A qualified electrician should complete the final connection and verify motor rotation, control function, emergency operation, grounding, and protective devices before the lift enters service.

Incorrect voltage or inadequate wiring can affect motor performance and create safety risks. For this reason, electrical requirements should be treated as part of the machine specification rather than a minor installation detail.

What You Should Confirm Before Ordering an Underground Car Lift

An underground lift requires more pre-installation coordination than many surface-mounted machines.

You should provide accurate workshop dimensions, floor drawings, ceiling height, concrete details, drainage conditions, intended vehicle types, electrical supply, and expected service applications before production or shipment.

The manufacturer should supply a foundation drawing showing the required pit dimensions, installation depth, anchor or reinforcement details, hydraulic routing, power unit position, and maintenance access requirements.

It is also important to confirm what is included in the delivery. The quotation should clearly identify the lift structure, hydraulic power unit, control system, safety devices, installation accessories, electrical configuration, documentation, spare parts, warranty terms, and optional equipment.

For the Peru export project dated July 11, 2025, the selected configuration included a 3500kg lifting capacity, 1800mm maximum lifting height, 1560mm platforms, a 2.2kW motor, and optional 220V, 50Hz single-phase power. These details provide a useful reference, but every workshop should still confirm its own installation conditions before ordering.

Frequently Asked Questions

Is a 3500kg underground car lift suitable for SUVs?

It is suitable for many passenger cars, crossovers, and SUVs with a total weight below 3500kg. Vehicle compatibility must also be checked against weight distribution, lifting points, platform dimensions, and the manufacturer’s operating instructions.

Can this lift be used for wheel alignment?

It can support wheel alignment-related service, but the required platform accessories and alignment layout should be confirmed in advance. Turntables, slip plates, level adjustment, or other components may be required depending on your alignment equipment.

What workshop preparation is required before installation?

The workshop normally requires a foundation pit, suitable reinforced concrete, drainage or waterproofing, hydraulic and electrical routing, adequate ceiling clearance, and maintenance access. Installation should follow the manufacturer’s approved foundation drawing.

How should an underground hydraulic lift be maintained?

Maintenance includes checking hydraulic oil, cylinders, hoses, seals, synchronization, safety devices, electrical controls, platform condition, pit drainage, and structural corrosion. Inspection intervals should follow the supplied maintenance manual and local workplace requirements.

Conclusion

A 3500kg underground car lift is a practical option when you need full underbody access without permanent floor obstructions. Its flush inground installation helps keep the service bay open, while the 1800mm lifting height supports tire service, wheel alignment preparation, suspension inspection, chassis work, and routine automotive maintenance. Synchronous dual cylinders provide smooth lifting, the 2.2kW hydraulic system completes the lift cycle in approximately 50 to 60 seconds, and the CE-certified design supports equipment compliance review. Shot blasting, electrostatic powder coating, and anti-leakage hydraulic components also contribute to long-term durability. When supported by correct foundation planning, professional installation, and regular maintenance, this underground vehicle lift can help you improve workshop space utilization, technician access, and everyday service efficiency.
