How Does a 4000kg Two-Post Lift Fit a Compact Repair Shop?

For many independent repair shops, available floor space is limited, but service demand continues to grow. A 4000kg two-post lift gives you useful lifting capacity, open underbody access, and a relatively compact installation footprint. This configuration is designed for routine service on sedans, SUVs, and other passenger vehicles.

A 4000kg Two-Post Lift for Daily Workshop Use

A two-post vehicle lift is commonly selected by repair shops that need flexible access to the underside of a vehicle without installing long drive-on platforms.

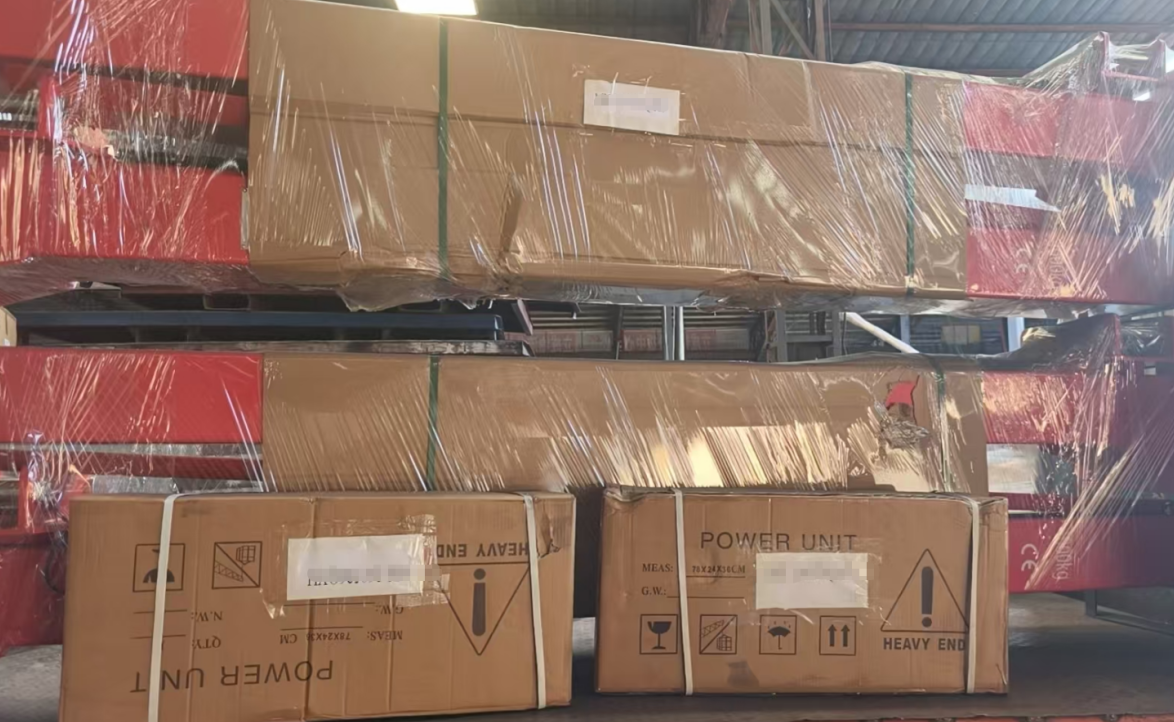

This model was exported to Peru on July 14, 2026. It provides a rated lifting capacity of 4000kg and a maximum lifting height of 1850mm, making it suitable for a broad range of passenger vehicle maintenance work.

The minimum lifting height is 110mm, which helps accommodate many lower-clearance vehicles. The overall height is 2774mm, while the clear width between the columns is 2770mm. A 2480mm drive-through width gives drivers enough room to position common sedans and SUVs inside the lifting area.

The main specifications include:

• Lifting capacity: 4000kg
• Maximum lifting height: 1850mm
• Minimum height: 110mm
• Overall height: 2774mm
• Width inside columns: 2770mm
• Drive-through width: 2480mm
• Overall width: 3370mm
• Motor power: 2.2kW
• Lock release: dual-point
• Power supply: 220V, 60Hz, single-phase
• Color: red

For workshops where floor area matters, this configuration provides a practical balance between working access, lifting capacity, and installation size.

The Two-Column Layout Helps Save Valuable Floor Space

One of the main reasons workshops choose a two-post car lift is the relatively small amount of floor area occupied by the lifting structure.

Instead of using long platforms beneath the vehicle, the machine supports the vehicle from designated chassis lifting points. This leaves much of the wheel, suspension, exhaust, drivetrain, and lower-body area open for technicians.

For an independent repair shop, that open layout can be useful because one service bay can support several different types of maintenance without requiring a large drive-on structure.

The overall width of this model is 3370mm. Within that structure, the 2770mm clear distance between the columns and 2480mm drive-through area help create enough room for vehicle entry while keeping the overall footprint manageable.

This is particularly useful if your workshop has several bays positioned close together or if you want to preserve space for tool cabinets, tire equipment, workbenches, and vehicle movement.

A compact layout can also make future workshop expansion easier because you can organize more service functions within the same building.

1850mm Lifting Height Provides Practical Underbody Access

A two-post lift becomes much more useful when technicians can work comfortably beneath the vehicle.

This model reaches a maximum lifting height of 1850mm. For many technicians and passenger vehicles, that height provides enough clearance for standing access to the chassis and other lower components.

This makes the lift suitable for routine underbody work such as chassis inspection, suspension maintenance, oil changes, exhaust checks, and general mechanical service.

Compared with a mid-rise lift, a 1850mm full-rise two-post lift gives you more flexibility when the job requires extended work beneath the vehicle.

It also improves visibility around the underbody. Technicians can inspect leaks, worn suspension components, loose fasteners, damaged exhaust parts, and other maintenance items without repeatedly lowering the vehicle.

For workshops handling multiple service types, working height can influence productivity almost as much as lifting capacity.

4000kg Capacity Covers Common Sedans and SUVs

A rated lifting capacity of 4000kg gives this two-post lift enough range for many passenger cars and SUVs.

For a general repair shop, this is a practical capacity because daily work may include compact cars, family sedans, crossovers, and larger SUVs rather than one specific vehicle category.

However, vehicle weight is only one part of compatibility.

Before lifting, you should also consider the vehicle's wheelbase, center of gravity, front-to-rear weight distribution, ground clearance, and approved lifting points.

A vehicle that weighs less than 4000kg may still require special attention if its lifting points sit outside the usable arm range or if the weight is heavily concentrated toward one axle.

Correct arm positioning is therefore essential.

The lift should only be used when all lifting pads make secure contact with approved structural points and the vehicle remains balanced before it is raised to full working height.

The 110mm Minimum Height Supports Lower-Clearance Vehicles

Vehicle ground clearance varies significantly across passenger models.

Sports-style sedans, modified cars, and some modern crossovers may sit lower than conventional vehicles, making lift access more difficult.

With a minimum height of 110mm, this two-post car lift can accommodate many lower-clearance vehicles without requiring unusually high support pads at the starting position.

That low starting height can reduce setup time when vehicles enter the service bay.

It can also make the lift more versatile for workshops that handle a mixed vehicle population.

Even so, technicians should always check the vehicle's actual clearance before moving the lifting arms into position. Low-profile vehicles may have side skirts, aerodynamic panels, battery enclosures, or other underbody components that should not be used as lifting points.

The correct contact location should follow the vehicle manufacturer's recommended lifting procedure.

Dual-Point Lock Release Supports Controlled Operation

A mechanical locking system is an important part of a professional two-post lift.

This model uses a dual-point lock release system. The design allows the safety locks on both sides to be released through the intended operating procedure before the lift is lowered.

Mechanical safety locks provide physical support in addition to the hydraulic lifting system.

When technicians are working underneath a raised vehicle, the machine should remain supported by the locking mechanism rather than relying only on hydraulic pressure.

Before beginning maintenance, operators should confirm that the lift has reached a stable locking position and that both sides are correctly engaged.

The locking system should also be inspected regularly for wear, adjustment, and smooth release.

Hydraulic hoses, cylinders, lifting arms, pivot points, cables or synchronization components, depending on the final machine configuration, should also form part of the maintenance schedule.

Safe operation depends on both equipment design and consistent workshop procedures.

A 2.2kW Hydraulic System Fits Routine Repair Work

The lift is powered by a 2.2kW motor configured for 220V, 60Hz, single-phase supply.

For many independent workshops, single-phase power can be convenient when three-phase electricity is not readily available.

The hydraulic power unit provides the force needed to raise the vehicle while the structural and safety systems control the working position.

Before installation, the workshop should confirm that the available electrical circuit can support the actual motor requirements.

Voltage, frequency, breaker capacity, cable size, grounding, and connection method should all be checked before commissioning.

This is particularly important for export equipment because electrical systems differ between regions and even between individual workshop buildings.

A qualified electrician should complete the final connection according to the supplied wiring information and local requirements.

Open Wheel Access Supports Routine Maintenance

One of the strongest advantages of a two-post lift is that the vehicle wheels remain free after the chassis is supported by the lifting arms.

This gives technicians direct access for brake work, suspension service, tire removal, steering inspection, and many other common repair procedures.

For chassis inspection, the open underside also makes it easier to follow structural members and check components across the length of the vehicle.

Oil changes can be completed with clear access to the drain area and underbody components.

Suspension work benefits from the fact that wheels are unloaded, allowing technicians to inspect joints, bushings, control arms, dampers, and related parts more easily.

Because one lift can support several service types, it can deliver good value for workshops that need versatile equipment rather than a machine dedicated to only one operation.

Why This Layout Works Well in Smaller Repair Shops

Smaller workshops often need equipment that can handle a wide range of jobs without consuming too much floor area.

The two-post structure fits that requirement well because the vehicle occupies the main working zone while the lifting structure remains concentrated around the two columns.

You can organize tool storage and support equipment around the bay more easily than with some larger platform systems.

The relatively compact overall width of 3370mm also makes planning simpler in buildings where bay spacing is already fixed.

For businesses serving sedans and SUVs, the combination of a 4000kg rated capacity and full underbody access can reduce the need to install separate lifting systems for different routine jobs.

That improves equipment utilization and can help you get more value from each service bay.

What Should You Confirm Before Installation?

A two-post lift must be matched to both your vehicles and your building.

Before ordering or installing the equipment, you should confirm the heaviest vehicles you expect to service, the wheelbase range, lifting-point positions, and ground clearance.

Workshop measurements are equally important. Check ceiling height, bay width, vehicle approach space, door clearance, and enough working room around the columns.

The concrete foundation should meet the manufacturer's requirements for thickness, strength, condition, levelness, anchor placement, and edge distance.

Electrical compatibility should also be confirmed because this model uses a 2.2kW, 220V, 60Hz, single-phase configuration.

No specific certification information was included in the supplied project details, so certification should not be assumed. If your local market requires a particular automotive lift, electrical, machinery, or workplace safety standard, ask the supplier to provide documentation covering the exact model before purchase.

You should also request the installation drawing, electrical diagram, operating manual, maintenance schedule, load test information, safety-lock details, and spare-parts list.

Frequently Asked Questions

Is a 4000kg two-post lift suitable for SUVs?

Yes. It can handle many SUVs within the 4000kg rated capacity. Actual compatibility also depends on vehicle weight distribution, wheelbase, ground clearance, and the location of approved lifting points.

What maintenance jobs can you perform on a two-post lift?

A two-post lift is suitable for chassis inspection, suspension work, brake service, oil changes, tire removal, exhaust inspection, and many other routine repair tasks because the wheels and underbody remain accessible.

Is 1850mm enough for underbody work?

For many passenger vehicles, a lifting height of 1850mm provides useful standing access beneath the vehicle. Actual working clearance depends on vehicle body height and technician height.

What should be checked before installing the lift?

You should confirm the concrete foundation, ceiling height, bay dimensions, electrical supply, anchor requirements, vehicle compatibility, and installation documentation before commissioning the equipment.

Conclusion

The 4000kg two-post lift exported to Peru combines a 1850mm lifting height, 110mm minimum height, 2770mm clear column spacing, 2480mm drive-through width, 2.2kW power unit, and dual-point lock release in a compact workshop layout. This makes it suitable for routine maintenance on many sedans and SUVs while preserving open access to the wheels, suspension, chassis, and underbody.

For independent repair shops and service centers with limited floor space, a two-post lift can provide strong versatility and good equipment utilization. By confirming vehicle compatibility, foundation conditions, workshop dimensions, electrical requirements, safety documentation, and maintenance support before installation, you can select a lifting solution that fits your daily repair workload more reliably.
