Is a 4000kg Ultra-Thin Scissor Lift Right for Wheel Alignment?

If your workshop handles wheel alignment, chassis inspection, tire service, and general repairs, lifting equipment needs to provide both working height and easy installation. A 4000kg ultra-thin scissor car lift combines a 1800mm full-rise height with surface-mounted installation, helping you expand service capability without building a recessed foundation pit.

A Surface-Mounted Scissor Lift That Reduces Installation Work

Installing a full-rise vehicle lift can involve more than choosing the machine itself. Foundation preparation, workshop downtime, floor modification, and future relocation all affect the real installation cost.

This ultra-thin scissor car lift was exported to the USA on June 28, 2026. Its surface-mounted design eliminates the need for a recessed pit, making it particularly useful for existing repair shops that want to add lifting capacity without major civil construction.

The minimum height is 200mm, allowing the lift to maintain a relatively low profile despite its full-rise structure. Vehicles can drive onto the platforms using the designed approach structure without requiring the workshop floor to be excavated around the entire machine.

For an established automotive service center, this can simplify installation and reduce disruption to daily operations. It also gives you more flexibility if the workshop layout changes in the future.

The main specifications include:

• Lifting capacity: 4000kg
• Platform size: 4500 × 600mm
• Maximum lifting height: 1800mm
• Secondary lifting height: 470mm
• Minimum height: 200mm
• Lifting time: 50–60 seconds
• Motor power: 2.2kW
• Voltage: 110V, 60Hz, single-phase optional

This configuration is designed for workshops that need full-rise access while avoiding the installation requirements of a traditional pit-mounted scissor lift.

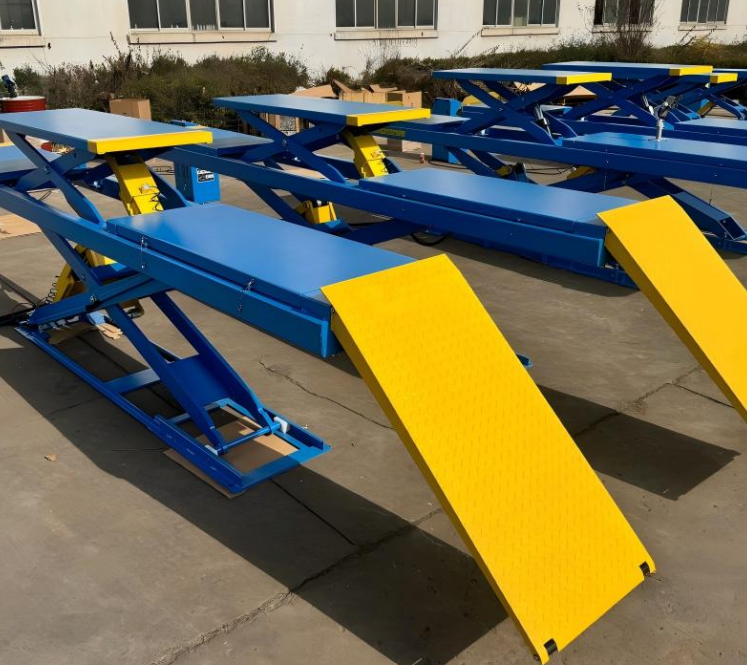

Long Platforms Support Sedans, SUVs and Light Commercial Vehicles

Vehicle compatibility depends on more than lifting capacity. Wheelbase, tire position, body length, ground clearance, and weight distribution all affect how comfortably a vehicle can be positioned on a large scissor lift.

This model uses platforms measuring 4500mm long and 600mm wide. The long drive-on structure makes it suitable for many sedans, SUVs, and light commercial vehicles within the rated 4000kg load capacity.

For workshops serving a mixed customer base, this provides more practical flexibility than equipment designed mainly for compact passenger vehicles.

The 4000kg capacity is particularly useful when your daily workload includes heavier SUVs or commercial vehicles. However, a four-ton rating should always be treated as the maximum permitted load rather than a target operating weight. Before lifting, you should confirm the vehicle's actual weight and its position on the platforms.

The long platform arrangement also makes vehicle entry more straightforward because the driver can position the vehicle by its wheels rather than locating four individual chassis lifting points before every operation.

This can be valuable in busy workshops where vehicle turnover and repeatable positioning affect productivity.

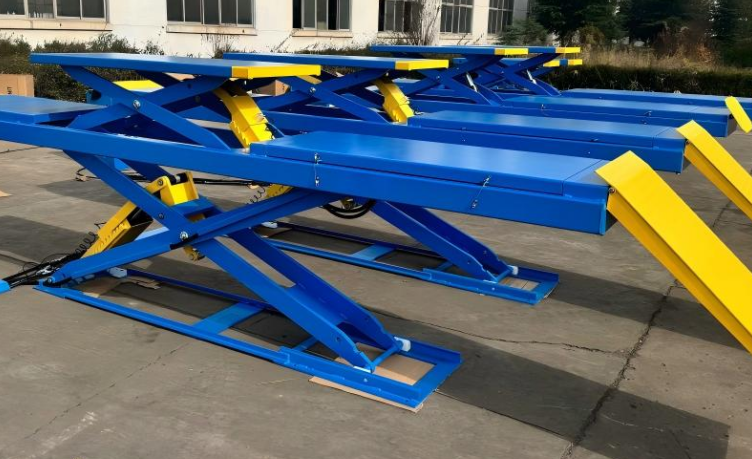

A 1800mm Full-Rise Height Gives Technicians More Working Space

An ultra-thin structure does not necessarily mean limited working height.

This scissor car lift reaches 1800mm at full rise, allowing technicians to access the underside of many vehicles from a comfortable standing position. That makes it more versatile than mid-rise equipment intended mainly for tire and brake service.

With full under-vehicle access, you can use the lift for chassis inspection, exhaust system work, suspension diagnosis, oil service, underbody checks, and many routine repair procedures.

For technicians who spend several hours each day working around raised vehicles, working height can have a direct effect on efficiency. Greater clearance reduces repeated bending and repositioning while providing better visibility of the vehicle underside.

The full-rise configuration is especially practical when you want one service bay to handle both quick maintenance and more detailed under-chassis work.

The 50–60 second lifting cycle provides controlled movement without creating unnecessary delays between service stages. Actual cycle time may vary slightly according to vehicle weight, hydraulic condition, temperature, and electrical supply.

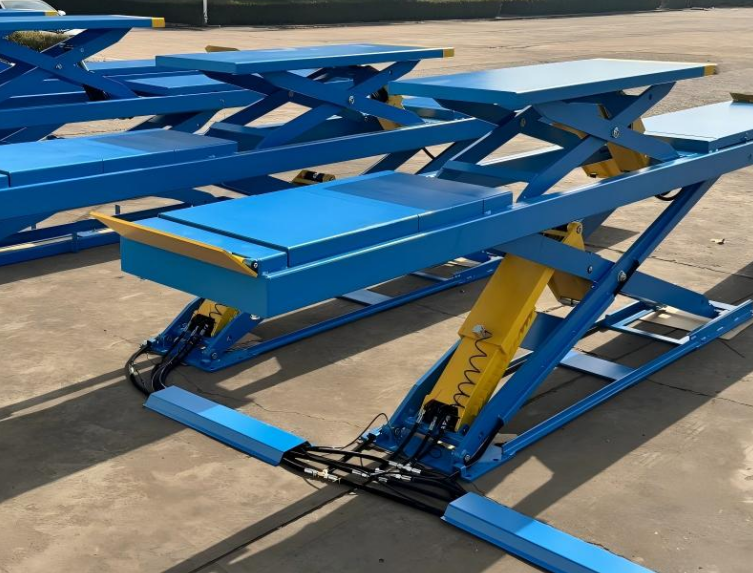

Secondary Lifting Adds Flexibility for Wheel Service

A drive-on platform provides excellent vehicle stability, but standard drive-on lifting leaves the wheels loaded on the platform. For tire replacement or some suspension operations, technicians need the wheels to become free.

This model addresses that requirement with a secondary lifting system providing up to 470mm of additional lift.

The secondary lift allows the vehicle body to be raised relative to the main platforms so the wheels can be unloaded for relevant service operations. This makes the machine more practical for tire replacement, brake inspection, suspension work, and wheel-related repairs.

For a workshop offering several types of automotive service, combining a main scissor platform with secondary lifting reduces the need to move the vehicle to another bay just to free the wheels.

It can also improve workflow around wheel alignment operations. The vehicle can remain positioned on the main lift for alignment-related inspection while secondary lifting is available when wheel or suspension access is required.

The exact lifting points and secondary-jack operating procedure should always follow the equipment instructions and vehicle manufacturer's recommended support locations.

Auto-Leveling Helps Maintain Balanced Platform Movement

A large scissor lift must keep both platforms moving in a controlled and balanced manner. Uneven lifting can affect vehicle stability and increase stress on the lifting structure.

This model includes an auto-leveling function designed to maintain balanced platform movement during raising and lowering.

For technicians, the practical benefit is more predictable operation. When both platforms remain aligned, the vehicle stays more stable during the lifting cycle, particularly when servicing SUVs or longer vehicles.

Stable platform movement also supports more consistent vehicle positioning during wheel alignment preparation and chassis inspection.

The leveling system should still be checked as part of regular maintenance. Hydraulic condition, synchronization components, sensors or control devices associated with leveling should be inspected according to the manufacturer's maintenance schedule.

An automatic leveling function improves operating consistency, but it does not replace correct vehicle positioning or routine equipment inspection.

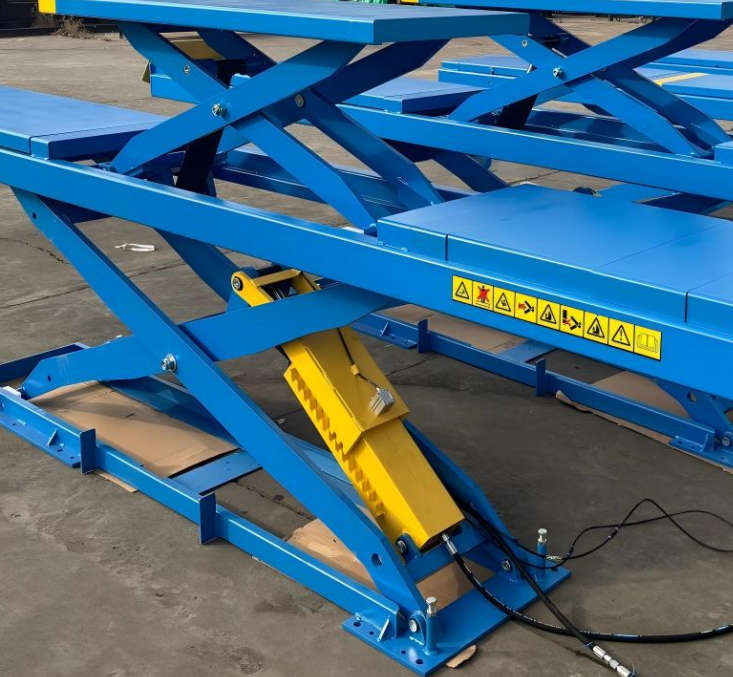

Dual Mechanical Safety Locks Provide Additional Protection

When technicians work underneath a vehicle, the lift should not depend solely on hydraulic pressure to maintain its working position.

This ultra-thin large scissor lift uses dual mechanical safety locks to provide additional support after the vehicle reaches the selected working height.

Mechanical locking creates a physical restraint that helps hold the lift in position during maintenance. This provides an additional safety layer alongside the hydraulic lifting system.

Before entering the area below a raised vehicle, technicians should confirm that the locks are correctly engaged and that the vehicle remains stable on the platforms.

The safety locks should also be included in routine inspections. Locking teeth, release mechanisms, pneumatic or mechanical connections, and moving components may wear during repeated use and should be checked according to the maintenance schedule.

A strong safety system works best when combined with operator training, correct vehicle positioning, and consistent inspection procedures.

Suitable for Wheel Alignment and Chassis Inspection

One of the main advantages of a large platform scissor lift is its ability to support several workshop services from a single bay.

The 4500mm platforms provide a stable drive-on surface that can suit wheel alignment preparation and chassis inspection. The 1800mm lifting height gives technicians better underbody access, while the secondary lifting system adds flexibility when the wheels need to be released.

This makes the lift useful for wheel alignment centers, tire service shops, general repair businesses, dealership workshops, and automotive maintenance facilities that need one machine to support several service processes.

For wheel alignment, however, the exact platform configuration should be confirmed before ordering. Different alignment systems may require turntables, rear slip plates, level compensation, or other accessories.

If alignment work is one of your main services, provide the supplier with the alignment equipment model and intended workflow. This allows the platform configuration to be checked before production rather than modified after installation.

Smooth Operation Matters in a Busy Repair Shop

A lift may complete dozens of cycles during a busy working week, so smooth movement and operating noise become important practical considerations.

This model uses a 2.2kW hydraulic power system and is designed for smooth raising and lowering with relatively low operating noise.

Controlled movement helps reduce unnecessary mechanical shock during each lifting cycle and provides a more comfortable working environment for technicians.

For repair shops where several machines operate in the same building, lower equipment noise can also improve communication and working conditions.

Long service life still depends on maintenance. Hydraulic oil, cylinders, seals, hoses, pivot points, safety locks, and electrical components should all be inspected at appropriate intervals.

Keeping the platforms clean and checking moving areas for debris can also help maintain consistent operation.

The 110V Configuration Should Be Confirmed Before Installation

The USA export configuration supports optional 110V, 60Hz, single-phase power with a 2.2kW motor.

This may be convenient for workshops where three-phase electricity is unavailable, but voltage alone is not enough to determine whether the existing circuit is suitable.

A 2.2kW motor can require significant starting current. Before installation, you should confirm circuit capacity, breaker rating, cable size, grounding, connection method, and motor nameplate requirements with a qualified electrician.

Undersized wiring or unstable voltage can affect motor starting, lifting speed, and equipment reliability.

For an export order, the electrical configuration should therefore be confirmed before production, including voltage, frequency, phase, control system requirements, and the final connection method.

What Should You Check Before Buying an Ultra-Thin Scissor Lift?

A suitable large scissor lift should match both your vehicles and your workshop conditions.

Start by checking the heaviest and longest vehicles you normally service. Compare their weight, wheelbase, track width, ground clearance, and tire position with the lift capacity and platform dimensions.

Workshop floor strength, available bay length, ceiling height, vehicle approach space, and electrical supply should also be reviewed before installation.

Because this is a surface-mounted model, you avoid building a recessed pit, but the existing floor still needs to support the lift and vehicle loads according to the manufacturer's installation requirements.

You should also confirm the safety documentation and testing supplied with the exact model. No specific certification was included in the information for this export case, so certifications should not be assumed. If your local market or workshop requires a particular automotive lift or electrical standard, verify the applicable documentation with the supplier before ordering.

For professional purchasing, requesting the installation drawing, electrical diagram, operating manual, maintenance schedule, load test record, and spare-parts list can make installation and long-term servicing easier.

Frequently Asked Questions

Is a 4000kg ultra-thin scissor lift suitable for SUVs?

Yes. It can accommodate many SUVs and passenger vehicles within the 4000kg rated capacity. You should still confirm actual vehicle weight, wheelbase, tire position, and weight distribution before use.

Does this surface-mounted scissor lift require a foundation pit?

No recessed pit is required for the surface-mounted design. However, the workshop floor must still meet the manufacturer's requirements for concrete condition, strength, levelness, and installation.

Can this lift be used for wheel alignment?

It can be configured for wheel alignment-related applications, but you should confirm whether turntables, slip plates, or other alignment accessories are required for your specific alignment system.

What does the 470mm secondary lift do?

The secondary lifting system raises the vehicle relative to the main platforms, allowing the wheels to become free for tire service, brake work, suspension inspection, and related maintenance.

Conclusion

The 4000kg ultra-thin scissor car lift exported to the USA combines surface-mounted installation with a 4500mm long platform, 1800mm full-rise height, 470mm secondary lifting, auto-leveling, and dual mechanical safety locks. This configuration allows you to handle sedans, SUVs, and selected light commercial vehicles while avoiding the construction work required for a recessed pit.

For wheel alignment centers, tire shops, and general repair businesses, the lift can support several service processes from one bay while maintaining convenient vehicle access and full underbody working height. By confirming vehicle dimensions, floor conditions, electrical requirements, alignment accessories, and safety documentation before ordering, you can select a large scissor lift that better matches your daily workshop workload.
