Spray Paint Room 16000m³/h Airflow, Gas Heated

Built for Professional-Grade Operations

This Spray Paint Room offers spacious working dimensions and a structurally reinforced enclosure suitable for medium to large vehicles and industrial components.

External dimensions: 7000 × 5250 × 3400mm
Internal dimensions: 6900 × 3900 × 2650mm
Power supply: 415V, 50HZ, 3PH (optional configuration available)
Color: White series (customizable)

The enclosure is constructed with:

• 0.37mm color steel plate

• 50mm socket-type flame-retardant EPS insulation panels

This panel combination provides thermal insulation, structural rigidity, and fire resistance—essential in professional refinishing facilities.

Additional structural features include:

• 1 set of glass doors for visibility and sealing

• 1 installation work door for operator access

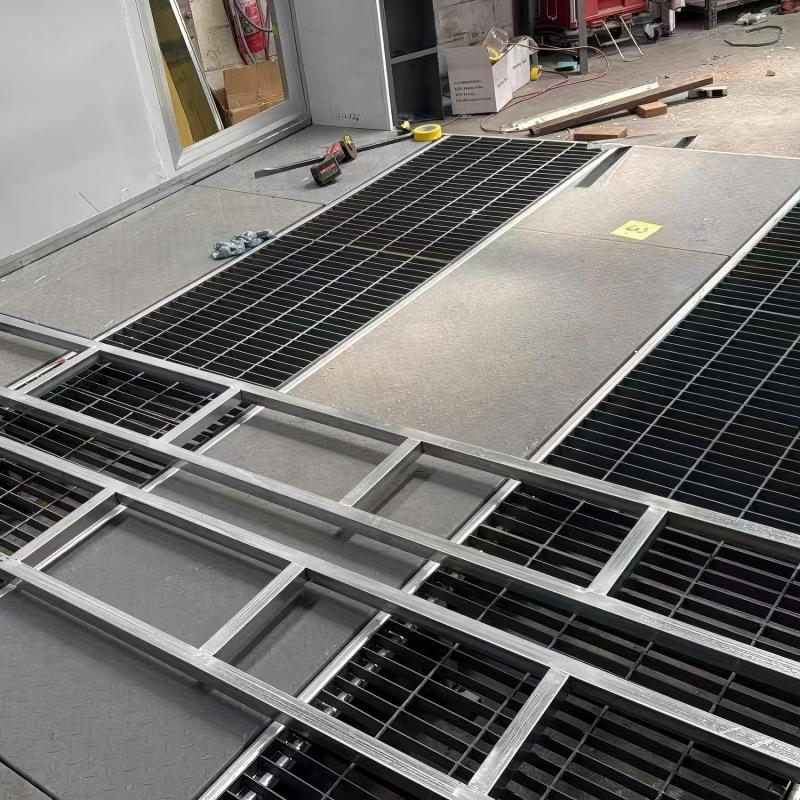

• 2 steel floor grilles

• 3 patterned plates

• 4 vehicle ramps

These features ensure smooth vehicle entry and stable airflow distribution from top to bottom.

Gas Heating System for Efficient Baking

Drying performance directly impacts turnaround time. This Spray Paint Room integrates a gas heating system, designed for efficient curing of painted surfaces.

Benefits of gas heating include:

• Rapid temperature rise

• Uniform heat distribution

• Lower operating cost compared to electric heating in high-volume operations

• Stable baking cycles for automotive and industrial coatings

Consistent baking reduces solvent retention, improves coating adhesion, and enhances gloss retention—key metrics in both auto body repair and industrial production lines.

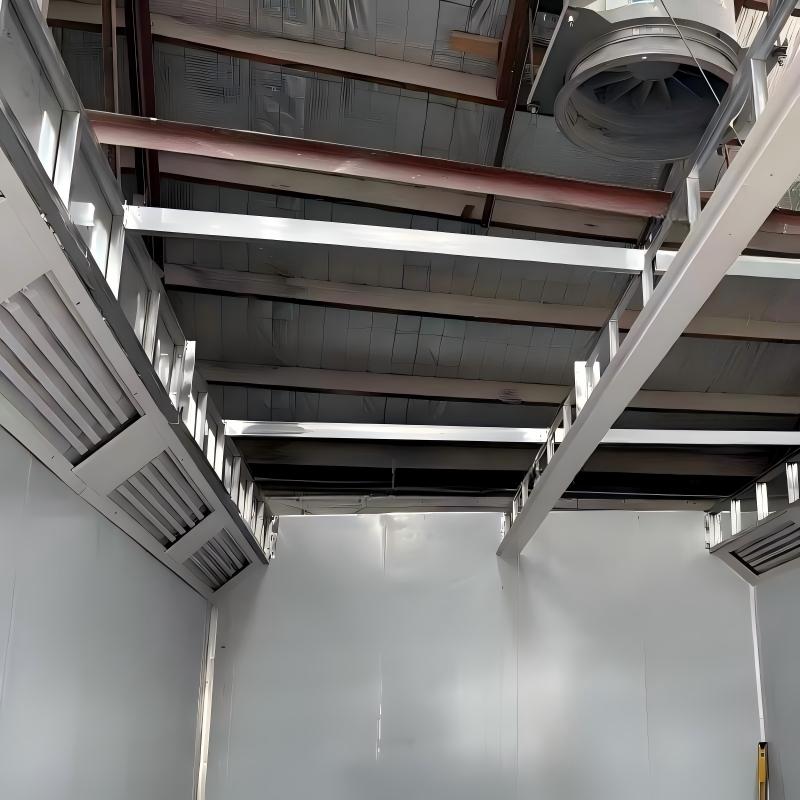

High Airflow Ventilation for Clean Finishing

Airflow control is fundamental to achieving a dust-free and compliant painting environment.

This Spray Paint Room features:

• 2 × 3kW double-inlet centrifugal fans

  • Total air supply volume: 16,000 m³/h

• 1 × 5.5kW centrifugal exhaust fan

  • Exhaust volume: 15,000 m³/h

This balanced airflow design ensures:

• Even air distribution across the working zone

• Effective overspray removal

• Reduced paint mist accumulation

• Stable negative pressure control

Proper air exchange minimizes contamination risks and supports consistent surface quality, especially in automotive refinishing and OEM coating applications.

Three-Stage Filtration for Clean and Compliant Operation

Environmental control is increasingly regulated across industrial sectors. This Spray Paint Room integrates a three-stage filtration system, including high-efficiency filters and multi-stage purification.

Key advantages:

• Improved air cleanliness inside the booth

• Reduced particulate emission

• Enhanced operator health protection

• Compliance with CE safety requirements

Explosion-proof LED lighting further ensures safe operation during volatile coating processes.

Bright LED Lighting for Precision Work

Visibility directly affects paint quality. This system includes:

• 8 sets of 4 × 16W LED high-efficiency lamps

The lighting system delivers:

• Uniform brightness

• Reduced shadow areas

• Accurate color matching

• Energy-efficient performance

Explosion-proof design enhances safety during solvent-based coating applications.

Intelligent Control & Turnkey Configuration

An integrated intelligent electronic control cabinet allows centralized management of:

• Heating cycles

• Airflow systems

• Lighting control

• Safety monitoring

The Spray Paint Room is delivered as a near-complete solution, including installation auxiliary materials, reducing setup complexity for engineering contractors and workshop integrators.

Application Across Multiple Industries

This Spray Paint Room is suitable for a wide range of B2B applications:

Automotive Sector

• Auto repair workshops

• Auto body shops

• Authorized dealership service centers

• Insurance-affiliated repair facilities

Industrial & Manufacturing

• Metal fabrication companies

• Industrial coating plants

• OEM/ODM surface finishing lines

• Home appliance and machinery manufacturers

Construction & Materials

• Steel structure manufacturers

• Aluminum profile coating lines

• Building materials processing companies

Its airflow capacity and gas heating system make it ideal for facilities requiring consistent daily production output.

Compliance, Safety & Customization

This system is CE marked, ensuring conformity with recognized safety standards. Additional highlights include:

• Explosion-proof lighting

• Flame-retardant insulation panels

• Customizable color scheme

• Professional engineering design

For distributors, engineering contractors, and workshop owners, this Spray Paint Room provides a scalable and brand-ready solution.

The 7000mm-class Spray Paint Room with 16,000 m³/h airflow and gas heating offers a balanced combination of performance, safety, and operational efficiency.

With robust insulated panels, CE compliance, three-stage filtration, and intelligent controls, it supports automotive refinishing, industrial coating, and OEM production needs.

For B2B buyers seeking a reliable and professionally engineered spray booth system, this solution delivers consistent finish quality, improved energy efficiency, and long-term durability.

FAQ

1. What industries commonly use a Spray Paint Room?
Automotive repair shops, car dealerships, industrial coating plants, OEM manufacturers, and metal fabrication companies widely use Spray Paint Rooms for controlled surface finishing.

2. What is the advantage of gas heating in a spray booth?
Gas heating provides faster temperature rise, uniform curing, and cost-effective operation for high-volume baking cycles.

3. How important is airflow volume in a Spray Paint Room?
High airflow (16,000 m³/h) ensures effective overspray removal, cleaner finishes, and stable pressure control.

4. Does this Spray Paint Room meet safety standards?
Yes. It is CE marked and includes explosion-proof lighting and multi-stage filtration for safe and compliant operation.
