Structural Design: Insulated, Durable, and Safe
The Spray paint room features:
-
External dimensions: 7000 × 5100 × 3300mm
-
Internal working area: 6900 × 3900 × 2650mm
-

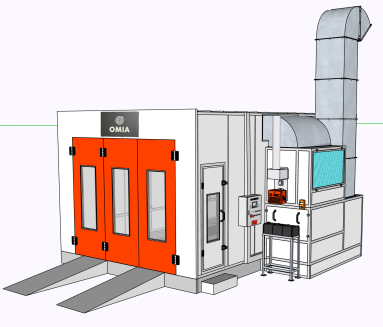

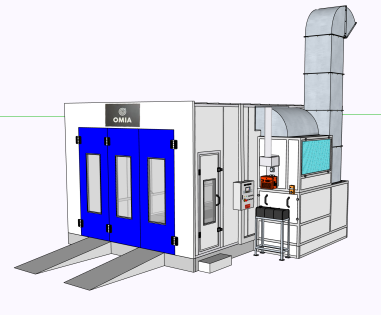

Color scheme: Red (1) + Blue (2)
-
Main sheet metal door: 3000 × 2600mm
-
Safety operation door: 750 × 1900mm
The room system is constructed using:
-
50mm flame-retardant EPS insulation panels
-
0.37mm color steel plates
-
0.8mm galvanized bent iron roof
-
Five bottom grilles
-
Two climbing platforms
This combination provides excellent thermal insulation, fire resistance, and structural rigidity. The dedicated safety door enhances operator protection, while the reinforced steel roof ensures long-term durability under high-temperature and airflow conditions.
Diesel Heating with Stainless Steel Heat Exchanger
Temperature stability is critical in any Spray paint room. This model integrates a diesel heating system combined with a stainless steel heat exchanger, offering:
-
Rapid temperature rise
-
Stable heat output
-
Efficient fuel consumption
-
Reduced thermal loss
Compared to basic electric systems, diesel heating provides higher heating capacity for large-scale coating operations. The stainless steel heat exchanger improves corrosion resistance and extends service life.
This configuration is particularly suitable for:
-
Auto body shops handling complete vehicle refinishing
-
Industrial coating plants processing metal components
-
OEM/ODM coating facilities requiring consistent curing cycles
Balanced Ventilation for Uniform Airflow
Airflow management is one of the most critical elements in Spray paint room performance.
This system includes:
-
2 × 3kW centrifugal fans
-
1 × 5.5kW exhaust fan
-
Top-to-bottom airflow cabinet design
-
4 rectangular air ducts
-
90° and 45° duct elbows
The top-down air supply combined with lower exhaust creates uniform vertical airflow across the working chamber. This design ensures:
-
Even paint application
-
Reduced overspray accumulation
-
Improved operator visibility
-
Stable working pressure
Such airflow systems are widely adopted in professional automotive and industrial finishing facilities to maintain coating consistency.
Multi-Stage Filtration for Clean Working Environment
Effective filtration is essential for environmental compliance and high-quality finishes.
The Spray paint room integrates:
-
EU5 top purification layer
-
G4 grade inlet filter cotton
-
Bottom multi-layer fiberglass cotton
-
Activated carbon cotton for paint mist filtration
This multi-stage filtration system effectively captures paint particles and airborne contaminants. Activated carbon layers also help absorb harmful vapors, improving working conditions and reducing emissions.
For industrial coating plants and environmental system contractors, this configuration supports regulatory compliance and workplace safety standards.
High-Brightness LED Lighting Layout
Proper illumination directly affects paint accuracy and surface inspection quality.
Lighting configuration includes:
-
8 sets of 4 × 18W LED slanted ceiling lights
-
8 sets of LED integrated side lighting
The angled ceiling lights minimize shadow zones, while side lighting enhances surface detail visibility. This ensures precise color matching and defect detection during painting.
For automotive dealerships and authorized service centers, consistent lighting supports premium refinishing standards.
Intelligent Electronic Control Cabinet
The system is equipped with a complete intelligent electronic control cabinet, designed for:
-
Coordinated heating and ventilation control
-
Stable power management
-
Simplified operational interface
Operating on 380V, 50HZ, 3-phase power, the Spray paint room is engineered for industrial-scale environments requiring reliable electrical performance.
Turnkey Configuration with Added Value
This Spray paint room is delivered as a complete solution, including:
-
Installation auxiliary materials
-
Complimentary consumables:
-
1 roll air outlet filter cotton
-
1 roll bottom filter cotton
-
1 roll activated carbon filter cotton
-
5 lighting tubes
-
This reduces initial setup costs and minimizes the need for immediate replacement purchases. The customizable company logo option allows businesses to align the booth design with brand identity.
Industry Applications
The Spray paint room is suitable for a wide range of industries:
Automotive Sector
-
Auto repair workshops
-
Auto body shops
-
Car dealerships and authorized service centers
-
Insurance-affiliated repair facilities
-
Automotive training institutes
Industrial Manufacturing
-
Furniture manufacturers
-
Home appliance producers
-
Machinery manufacturing plants
-
Metal profile and steel structure companies
Industrial Coating & Engineering
-
Industrial coating plants
-
OEM/ODM processing facilities
-
Environmental system integration contractors
Its durable structure and efficient airflow design make it adaptable to both vehicle refinishing and industrial component coating.
A professional-grade Spray paint room with 7000mm structural length, diesel heating system, stainless steel heat exchanger, multi-stage filtration, and intelligent electronic control cabinet offers a complete and efficient coating solution.
Designed for automotive and industrial users, this system ensures stable airflow, uniform heating, effective paint mist removal, and high-visibility lighting. With durable construction and turnkey configuration, it delivers long-term operational reliability and cost-effective performance for professional finishing environments.
FAQ
1. What industries typically use a Spray paint room?
Automotive workshops, industrial coating plants, furniture manufacturers, and OEM production facilities widely use Spray paint rooms.
2. What are the benefits of diesel heating in a Spray paint room?
Diesel heating provides rapid temperature rise, high thermal efficiency, and stable performance for large-scale coating operations.
3. How does the filtration system improve air quality?
The multi-stage filtration system (EU5, G4, fiberglass cotton, activated carbon) captures paint mist and contaminants, ensuring cleaner air and improved finish quality.
4. Is this Spray paint room delivered as a complete system?
Yes. It includes an intelligent control cabinet, installation accessories, and complimentary replacement filter materials and lighting tubes.
