Engineered Structure for Daily Industrial Use

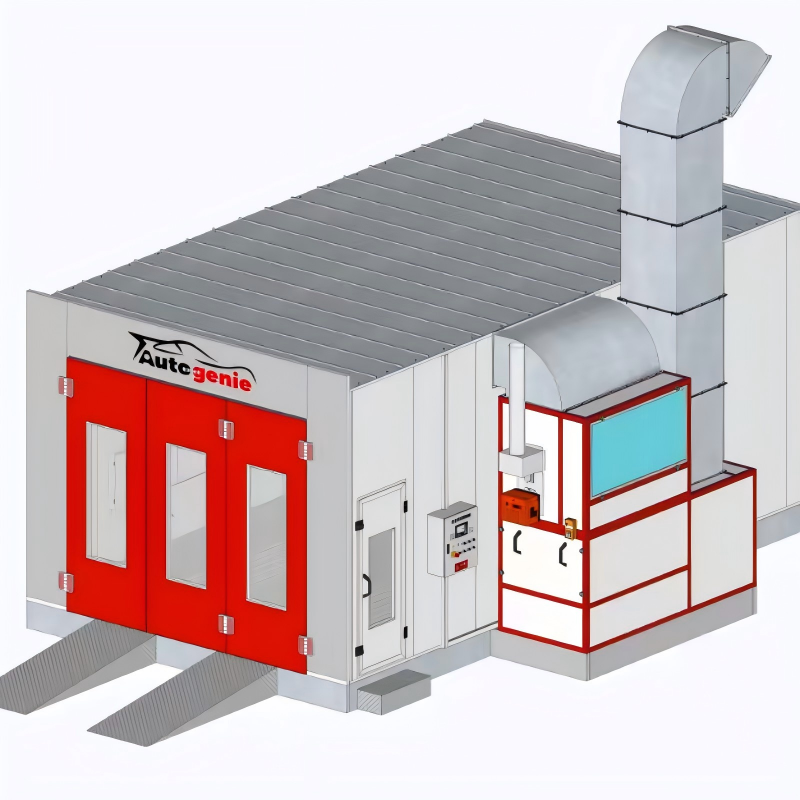

The Spray paint room D1 offers practical working dimensions suitable for passenger vehicles, light commercial vehicles, and medium industrial components.
Outer size: 7000 × 4000 × 3400mm (including side box)
Inner size: 6900 × 3900 × 2650mm
Voltage: 220V, 50HZ, 3PH
Color scheme: Red (customizable options available)
The booth structure combines durability and insulation performance:
-

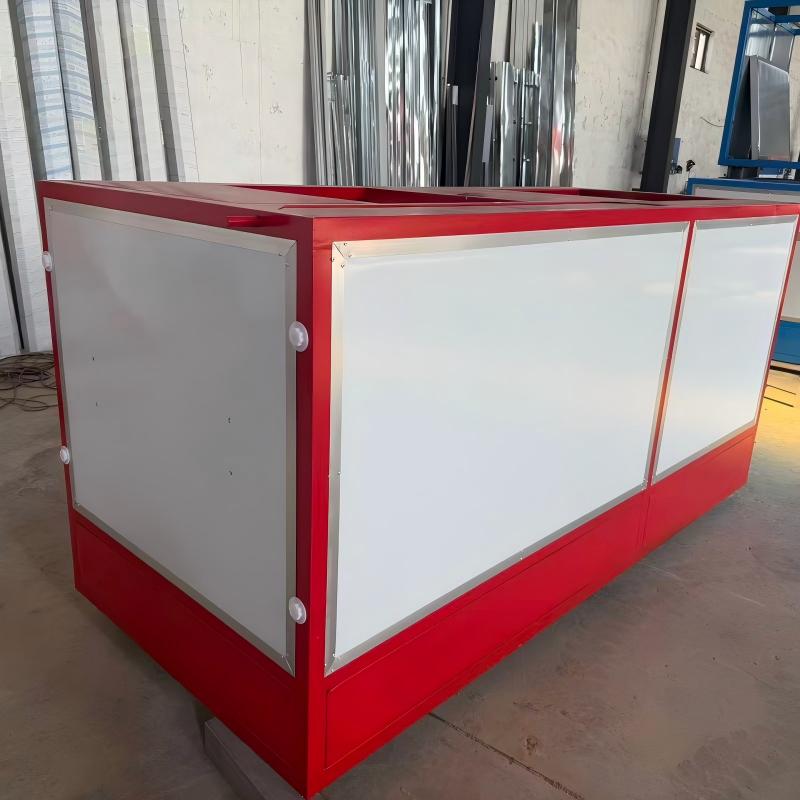

45mm plug-in EPS flame-retardant wall panels
-
0.42mm color steel plate outer layer
-
0.8mm high-quality galvanized bent iron roof
This configuration provides thermal stability, structural strength, and fire resistance—critical in high-temperature baking cycles.
Additional structural components include:
-
3 aluminum alloy edge-wrapped main doors
-
1 installation work door
-
2 steel grilles
-
3 patterned plates
-
2 ramps
These elements ensure smooth vehicle access and balanced airflow distribution across the working chamber.
Dual Heating System with 100,000 Kcal/h Capacity
Consistent curing is essential for achieving durable, high-gloss finishes. The Spray paint room D1 integrates a dual heating system with 8 sets of double-door electric heating units (LiaRoad G10), delivering:
-
Heating capacity: 100,000 Kcal/h
-
Rapid temperature rise
-
Stable baking performance
-
Even heat distribution across the booth
High-capacity heating reduces cycle time, improves paint adhesion, and minimizes rework. For high-volume automotive body shops and industrial coating facilities, this translates into measurable productivity gains.
High-Airflow Ventilation for Clean Finishing
Air management determines finish quality. The Spray paint room D1 adopts an upward air supply and downward exhaust design, ensuring vertical airflow control.
Ventilation configuration:
-
2 × 3kW centrifugal fans per set
-
Total air supply volume: 22,000 m³/h
-
-
1 × 5.5kW exhaust fan
-
Exhaust volume: 16,000 m³/h
-
This balanced system provides:
-
Uniform airflow across the spray zone
-
Efficient overspray extraction
-
Reduced dust contamination
-
Stable internal pressure control
For automotive refinishing and OEM production lines, proper airflow reduces paint defects such as orange peel and surface contamination.
Three-Stage Filtration for Environmental Control
Regulatory compliance and operator safety are increasingly important across industries. The Spray paint room D1 features a multi-stage filtration system:
-
EU5 high-efficiency top filtration
-
G3-grade inlet filter cotton
-
Multi-layer fiberglass bottom filtration
-
Activated carbon cotton for paint mist filtration
This setup improves air purity, reduces VOC concentration, and supports a cleaner working environment. The booth is CE marked, confirming compliance with European safety standards.
Explosion-proof lighting further enhances operational safety during solvent-based painting processes.
Professional LED Lighting for Accurate Color Matching
Lighting quality directly affects finish inspection. The booth includes:
-
High-efficiency LED top lighting
-
8 sets of LED side lights
This configuration delivers:
-
Bright, shadow-free illumination
-
Consistent light distribution
-
Accurate color matching
-
Reduced energy consumption
Well-designed lighting reduces operator fatigue and improves painting precision, especially in metallic and pearlescent finishes.
Intelligent Control System for Practical Operation
The Spray paint room D1 uses a knob-type intelligent electronic control system, allowing operators to easily manage:
-
Heating cycles
-
Ventilation performance
-
Lighting systems
-
Safety functions
The booth includes one complete set of installation auxiliary materials, enabling streamlined setup for engineering contractors and workshop integrators.
Industry Applications
The Spray paint room D1 is suitable for multiple B2B sectors:
Automotive & Aftermarket
-
Auto repair workshops
-
Auto body shops
-
Authorized dealership service centers
-
Insurance-affiliated repair facilities
-
Automotive training institutions
Industrial & Manufacturing
-
Industrial coating plants
-
OEM/ODM surface finishing facilities
-
Metal fabrication companies
-
Home appliance manufacturers
-
Machinery production enterprises
Construction & Materials Processing
-
Steel structure manufacturers
-
Aluminum profile coating lines
-
Building materials processing plants
Its airflow volume and high heating capacity make it ideal for facilities handling continuous refinishing operations.
Compliance, Safety & Customization
The Spray paint room D1 is:
-
CE marked
-
Equipped with explosion-proof lighting
-
Built with flame-retardant insulation panels
-
Customizable in color and configuration
Designed by experienced engineering personnel, it offers a professional, turnkey spray booth solution that balances performance and cost-effectiveness.
The Spray paint room D1 combines 22,000 m³/h airflow, 100,000 Kcal/h heating capacity, and CE-certified safety design in a robust 7-meter-class booth system.
With dual heating, advanced filtration, intelligent controls, and high-efficiency LED lighting, it supports automotive refinishing, industrial coating, and OEM manufacturing environments requiring reliable, high-volume performance.
For B2B buyers seeking a professional spray booth solution, Spray paint room D1 delivers consistent finish quality, operational efficiency, and long-term durability.
