What Makes a 4T Ultra Thin Scissor Car Lift Reliable?

A professional vehicle lift needs more than enough rated capacity. Stable synchronization, dependable safety locks, accurate hydraulic components, durable structural parts, and flexible vehicle access all affect daily workshop performance. This 4T ultra-thin scissor car lift combines a 110–1200mm lifting range with four cylinders and a compact platform for tire service, brake work, inspection, and routine maintenance.

A 4T Ultra Thin Scissor Lift for Compact Workshop Service

An ultra-thin scissor car lift is designed for workshops that need useful lifting height without installing a large full-rise machine.

This model provides a rated lifting capacity of 4 tons and a lifting range from 110mm to 1200mm. The low minimum height helps vehicles approach the lift more easily, while the 1200mm maximum height gives technicians convenient access for many wheel, brake, suspension, and lower-body service operations.

The platform length can be adjusted from 1590mm to 2140mm, and the table width is 530mm. This adjustable platform structure improves compatibility with vehicles of different wheelbases.

The lift uses a 2.2kW power unit configured for 220V, 50Hz, single-phase supply. Four hydraulic cylinders are used in the lifting system to support stable operation and load distribution.

The main specifications include:

• Rated lifting capacity: 4T
• Lifting height: 110–1200mm
• Platform length: 1590–2140mm
• Platform width: 530mm
• Power unit: 2.2kW
• Power supply: 220V, 50Hz, single-phase
• Hydraulic structure: four oil cylinders
• Safety control circuit: 24V

For tire shops, quick-service garages, independent repair centers, and workshops with limited floor space, this configuration provides a practical balance between compact installation and daily service capability.

High-Strength Booster Arms Improve Load Support

The lifting arm structure is one of the key areas affecting stability when a vehicle is raised.

This ultra-thin scissor car lift uses a new high-strength alloy booster arm designed to improve structural support under load. The reinforced structure helps the lift maintain controlled movement even when operating close to its rated capacity.

A stable descent is especially important because uncontrolled or uneven lowering can increase stress on the vehicle and lifting structure.

The X-frame uses a solid steel structure with an integrated non-slotted bottom plate. This design helps improve rigidity and reduces unnecessary weak points in the lower frame.

For professional workshops, strong structural components matter because lifting equipment may complete many cycles every week. Repeated loading, lowering, vibration, and vehicle repositioning all place stress on the frame.

A durable structural design helps maintain more consistent performance over the equipment’s working life.

Four Hydraulic Cylinders Support Stable Lifting

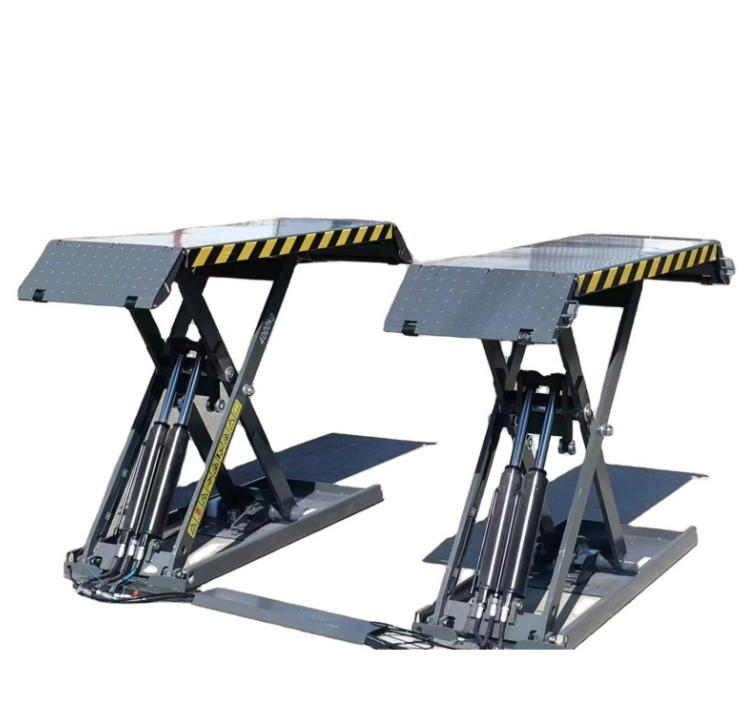

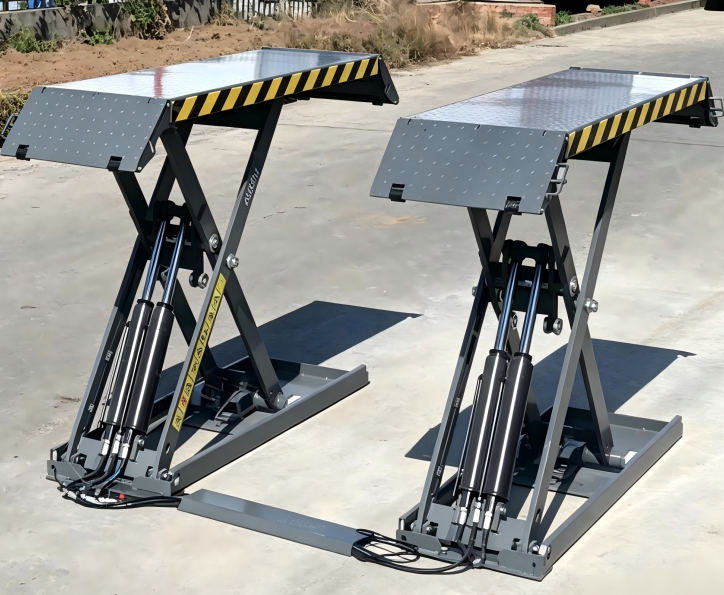

This model uses four hydraulic cylinders rather than relying on a single lifting point or simple hydraulic circuit.

The four-cylinder structure supports more balanced force distribution during lifting and lowering. Combined with hydraulic synchronization, this helps the platforms move more evenly when the vehicle weight changes from one application to another.

The hydraulic system uses a dual hydraulic structure together with a hydraulic lock and mechanical safety system.

This layered approach provides several levels of protection rather than depending on hydraulic pressure alone.

During normal lifting, hydraulic synchronization helps keep both sides moving at a similar rate. When the lift reaches the working position, the safety system provides additional support.

When lowering begins, the system is designed to unlock automatically so technicians can operate the machine without repeatedly adjusting separate mechanical components.

For a workshop handling different vehicle sizes, synchronized lifting can make daily operation more predictable and reduce the risk of noticeable platform imbalance.

Triple Safety Protection Adds Operational Confidence

Automotive lifting equipment must remain secure when technicians work around or below the vehicle.

This model combines hydraulic synchronization, hydraulic locking, and mechanical locking to create a triple safety structure.

The solid steel X-frame is equipped with a pneumatic mechanical safety lock. The hydraulic system also includes an explosion-proof safety device designed to provide additional protection if abnormal pressure conditions occur.

A 24V safety control circuit is used for machine control, which reduces the voltage used in the operator control system compared with direct high-voltage control circuits.

These safety features support professional operation, but they do not replace correct workshop procedures.

Before maintenance begins, technicians should confirm that the vehicle is positioned correctly, the rated capacity is not exceeded, the safety lock is engaged, and the platforms remain level.

Regular inspection of locking teeth, pneumatic components, hydraulic valves, hoses, electrical controls, and moving joints is also necessary to maintain reliable operation.

CNC-Machined Hydraulic Components Improve Cylinder Accuracy

Hydraulic cylinder quality directly affects smoothness, synchronization, leakage control, and long-term maintenance requirements.

The oil-cylinder components in this model are processed using a high-speed fully automatic CNC lathe. This machining process is intended to improve dimensional consistency, concentricity, and surface accuracy.

Good concentricity is important because cylinder rods and internal components must move smoothly through repeated lifting cycles. Poor machining tolerance can increase seal wear and affect hydraulic performance over time.

The cylinder barrel also receives a mirror-surface treatment to improve internal smoothness.

A smoother cylinder surface reduces unnecessary friction between moving components and seals, helping the hydraulic system maintain more consistent operation.

For workshops using the lift frequently, manufacturing precision in the cylinder system can have a direct effect on maintenance frequency and service life.

Imported Seals and Hydraulic Protection Reduce Leakage Risk

Hydraulic leakage is one of the most common maintenance concerns with vehicle lifting equipment.

This lift uses imported seals and ball valves together with hydraulic explosion-proof protection devices.

The seals help maintain hydraulic pressure and reduce oil leakage around the cylinder and connection points. Reliable ball valves support controlled oil flow throughout the hydraulic system.

The explosion-proof hydraulic protection is designed to reduce the risk of uncontrolled movement if a hydraulic line or pressure component develops an abnormal condition.

These components are particularly important in equipment that may operate repeatedly throughout the working day.

Even with higher-quality hydraulic components, routine inspection remains necessary. Workshops should regularly check hoses, fittings, valves, seals, oil level, and cylinder surfaces.

Small leaks should be repaired early rather than allowing hydraulic pressure loss to develop into a larger operating problem.

Adjustable Platforms Support Long-Wheelbase Vehicles

Vehicle dimensions vary considerably between compact cars, sedans, crossovers, SUVs, and longer-wheelbase models.

The platform on this ultra-thin scissor lift can extend from 1590mm to 2140mm, allowing you to adapt the support area according to the vehicle being serviced.

The approach bridge can also function as an extension plate. This increases the usable supporting length and makes the lift more practical for vehicles with longer wheelbases.

This flexible structure helps workshops handle a wider vehicle mix without requiring separate lifting equipment for every body size.

Correct positioning remains important. Before lifting, technicians should confirm that the vehicle support areas match the platform arrangement and that the vehicle remains within the rated 4-ton capacity.

The extension function should be used according to the manufacturer’s operating instructions so that load distribution remains within the approved range.

Precision Laser Cutting Improves Structural Fit

The accuracy of structural parts affects both assembly quality and long-term lifting consistency.

This model uses precision laser cutting technology for structural steel components. Laser cutting helps achieve more consistent dimensions, smoother cut edges, and cleaner finishing compared with less controlled manual cutting processes.

Accurate parts fit together more reliably during assembly.

For a scissor lifting structure, alignment between arms, pivot points, shafts, platforms, and lower-frame components is particularly important. Small dimensional errors can affect movement, increase wear, or create uneven loading during repeated operation.

All shafts are also equipped with wear-resistant bearings.

These bearings help reduce friction at rotating points and support smoother movement through frequent lifting cycles.

For professional repair workshops, better machining and bearing support can reduce unnecessary looseness and help the lift maintain more consistent operation over time.

Shot Blasting and High-Temperature Coating Improve Durability

Vehicle lifts operate in environments where oil, dirt, water, brake dust, tools, and repeated vehicle movement can affect exposed surfaces.

Before finishing, this lift undergoes shot blasting surface treatment. Shot blasting helps clean the steel surface and prepare it for coating.

The structure then receives high-temperature spraying treatment to create a more durable protective finish.

This treatment helps improve resistance to normal workshop wear and reduces the risk of premature surface corrosion.

Protective coating is especially valuable around lower structural parts because these areas are more likely to come into contact with dirt and moisture.

However, surface treatment should still be supported by regular cleaning. Damaged coating areas should be repaired promptly to prevent exposed steel from remaining unprotected.

The 110–1200mm Range Fits Common Service Work

The lifting range determines what kind of repair work technicians can perform comfortably.

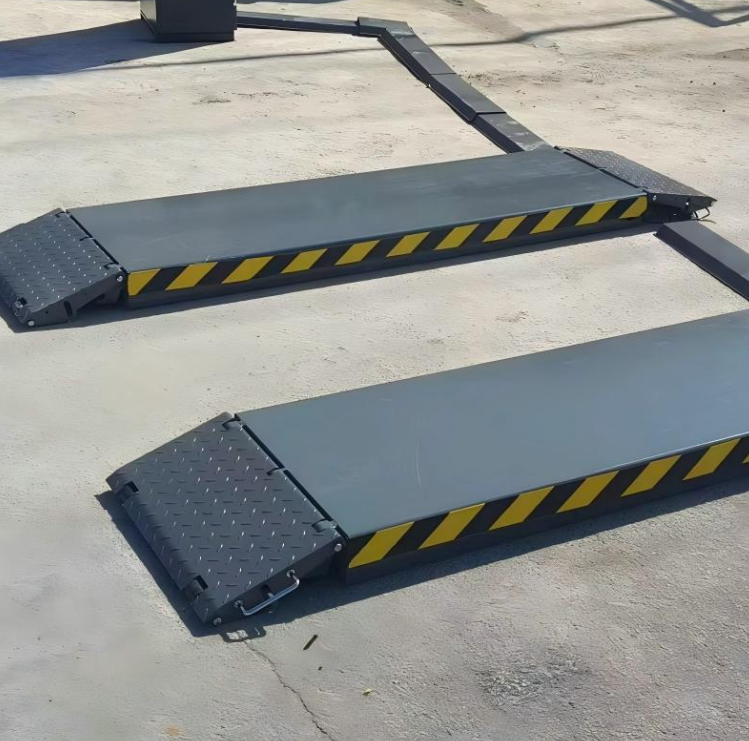

At the lowest position, the lift sits at approximately 110mm, providing practical access for many lower-clearance passenger vehicles.

At maximum height, the platform reaches 1200mm.

This makes the lift particularly suitable for tire replacement, brake servicing, suspension inspection, wheel removal, lower-body inspection, detailing, and routine maintenance.

It is not intended to provide the same full-standing underbody access as a 1800mm full-rise lift.

For workshops focused mainly on wheel and chassis-side service, however, the lower structure can be an advantage because it combines easier vehicle access with a smaller installation footprint.

Choosing between a 1200mm mid-rise model and a full-rise lift should depend on your actual service mix rather than simply selecting the tallest available machine.

How This Lift Fits Different Workshop Applications

A 4T ultra-thin scissor car lift is useful when you need one compact machine to handle several common maintenance operations.

It can support tire replacement, brake inspection, suspension servicing, wheel work, oil service, lower-body inspection, and routine mechanical maintenance.

The adjustable platforms and extendable approach bridge make it suitable for workshops handling different vehicle lengths.

The low-profile design also makes it practical for service bays where permanent posts or large above-ground structures would restrict technician movement.

Independent garages, tire centers, quick-maintenance workshops, dealership service bays, and automotive repair facilities can all benefit from this type of lifting structure.

Before ordering, you should still match the lift to your heaviest target vehicle, workshop bay dimensions, electrical supply, floor condition, and daily service requirements.

What Should You Check Before Ordering?

Selecting a vehicle lift should involve more than checking the rated load.

You should compare the platform length with your target wheelbases and confirm whether the 1590–2140mm adjustment range covers the vehicles commonly serviced in your workshop.

The 110mm minimum height should also be compared with vehicle ground clearance and the approach angle created by the installation.

Your electrical supply needs to support the 2.2kW, 220V, 50Hz, single-phase power unit.

You should also request the final installation drawing, hydraulic circuit, electrical diagram, safety-lock description, operation manual, maintenance schedule, load test information, and spare-parts list before purchase.

No specific certification information was included in the supplied product data, so certification should not be assumed. If your market requires specific automotive lift, electrical, machinery, or workplace safety standards, confirm the applicable certificates and model coverage with the supplier before ordering.

Frequently Asked Questions

What vehicles can a 4T ultra thin scissor car lift support?

The lift can support many passenger cars, crossovers, SUVs, and other vehicles within the rated 4-ton capacity. Actual compatibility depends on vehicle weight, wheelbase, ground clearance, and correct platform positioning.

Why does this lift use four hydraulic cylinders?

The four-cylinder structure helps distribute lifting force and supports more balanced platform movement. Combined with hydraulic synchronization and safety locks, it helps improve stability during lifting and lowering.

Can the approach bridge be used for longer vehicles?

Yes. The supportable approach bridge can also function as an extension plate, increasing the usable platform length for vehicles with longer wheelbases when used according to the manufacturer’s instructions.

What maintenance does the hydraulic system require?

Technicians should regularly inspect hydraulic oil, cylinders, seals, hoses, valves, synchronization performance, safety locks, and connection points. Correct maintenance helps reduce leakage risk and maintain stable lifting performance.

Conclusion

This 4T ultra-thin scissor car lift combines a 110–1200mm lifting range, adjustable 1590–2140mm platforms, four hydraulic cylinders, hydraulic synchronization, triple safety protection, and a 24V control circuit for professional workshop applications. CNC-machined cylinder components, imported seals, wear-resistant bearings, precision laser cutting, shot blasting, and high-temperature coating further support long-term operation.

For tire shops, independent garages, and service centers that need compact lifting equipment for passenger cars, SUVs, and longer-wheelbase vehicles, this model provides a practical balance between load capacity, platform flexibility, safety, and workshop space efficiency. By confirming vehicle dimensions, electrical requirements, installation conditions, applicable standards, and maintenance support before purchase, you can select a lift that better matches your daily service workload.
