Why Choose a 4000kg Ultra Thin Scissor Car Lift for Workshops?

Professional automotive workshops need lifting equipment that combines strong load capacity, space efficiency, and safe operation. A 4000kg ultra thin scissor car lift provides a practical solution for tire shops, wheel alignment centers, and repair bays that require full-rise access, stable lifting performance, and flexible installation in limited workshop spaces.

An Ultra Thin Scissor Car Lift Designed for Professional Workshops

Workshop space is becoming increasingly valuable, especially for automotive service businesses that need to handle more vehicles without expanding their facilities. Traditional lifting equipment may require larger installation areas, while compact lifting solutions can help you improve service efficiency within the available workspace.

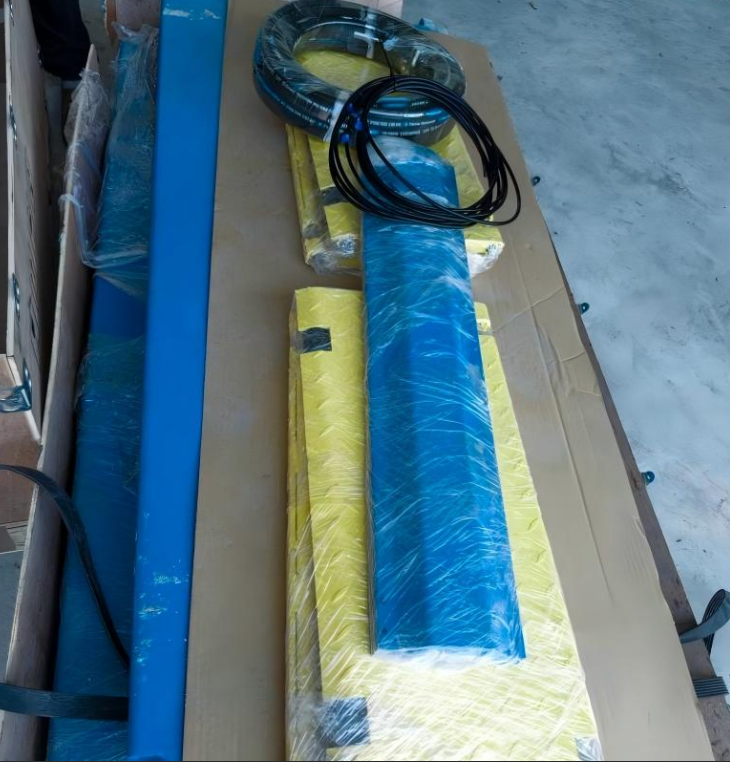

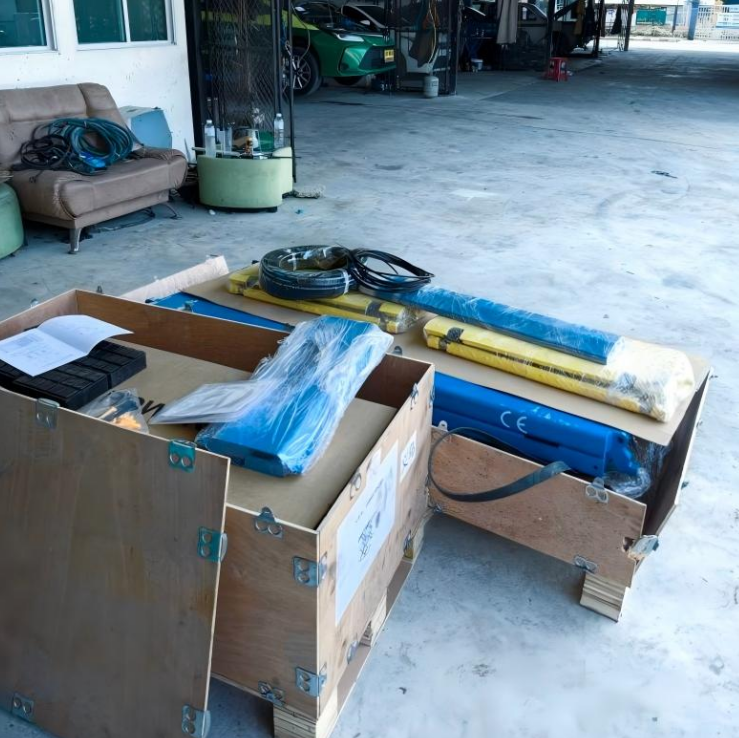

This ultra thin scissor car lift was exported to Thailand on March 28, 2026, and is designed for professional automotive maintenance applications. With a lifting capacity of 4000kg, this model can support many heavy SUVs, passenger vehicles, and large commercial vans within the rated load range.

The ultra thin scissor structure provides a space-saving installation solution while maintaining strong lifting performance. With a minimum height of only 110mm, the lift allows easier vehicle positioning, especially for vehicles with lower ground clearance.

The platform length can be adjusted from 1550mm to 2070mm, while the platform width reaches 645mm. This flexible platform design helps you adapt the equipment to different vehicle sizes and service requirements.

The main specifications include:

• Lifting capacity: 4000kg
• Maximum lifting height: 1800mm
• Minimum height: 110mm
• Platform length: 1550–2070mm
• Platform width: 645mm
• Motor power: 2.2kW
• Lifting time: 30–50 seconds
• Operating air pressure: 0.6–0.8MPa
• Voltage: 220V, 50Hz, single-phase (optional)

For professional workshops, this configuration provides a balance between heavy-duty lifting capability, compact installation, and daily operating efficiency.

4000kg Load Capacity Supports Heavy Vehicle Maintenance

Vehicle weight is one of the most important factors when selecting lifting equipment. A workshop that regularly handles SUVs, vans, or heavier passenger vehicles needs a lift that provides sufficient capacity and structural stability.

This 4000kg ultra thin scissor car lift is designed for heavy-duty automotive service applications. The four-ton lifting capacity allows you to handle a wider range of vehicles while maintaining a compact equipment footprint.

The reinforced steel structure provides strong load-bearing capability during lifting operations. This helps maintain stability when technicians perform maintenance tasks under vehicles or work around wheels and suspension components.

For professional tire shops, repair centers, and quick-service workshops, higher lifting capacity means greater flexibility when serving different customers.

However, safe operation still depends on correct vehicle positioning. Before lifting, technicians should confirm that the vehicle weight is within the rated capacity, the wheels are correctly positioned, and the approved lifting areas match the platform support points.

A high-capacity lift provides stronger capability, but proper operation procedures remain essential for long-term safety and equipment performance.

1800mm Full-Rise Height Improves Technician Working Comfort

One of the biggest advantages of this ultra thin scissor car lift is its 1800mm maximum lifting height.

Compared with low-rise lifting equipment, a full-rise scissor lift provides more working space under the vehicle. This allows technicians to perform more comfortable maintenance operations, including engine inspection, chassis repair, suspension service, and other under-vehicle tasks.

For workshops, working height directly affects technician efficiency. When mechanics have more available space, they can access repair areas more easily and reduce unnecessary movement during maintenance.

The minimum height of only 110mm also improves vehicle access. The low-profile design allows vehicles with lower chassis clearance to drive onto the platform more conveniently.

This combination of low installation height and high lifting height makes the equipment suitable for workshops that need both easy vehicle loading and comfortable repair access.

Precision Hydraulic Synchronization Ensures Stable Lifting

Stable lifting performance is essential when handling vehicles close to the maximum load capacity.

This ultra thin scissor car lift uses dual high-pressure hydraulic cylinders with a master-slave synchronization system. The synchronized hydraulic structure helps maintain balanced movement between both sides of the lifting platform.

Compared with systems without effective synchronization control, this design helps reduce uneven lifting and improves vehicle stability during operation.

The hydraulic system provides smooth lifting and controlled lowering, with a lifting time of approximately 30–50 seconds. This allows workshops to maintain efficient vehicle turnover while avoiding sudden movement during operation.

The 2.2kW motor provides sufficient power for daily service applications, while the hydraulic structure is designed for repeated lifting cycles in professional environments.

Regular inspection of hydraulic oil, cylinders, seals, pipelines, and synchronization components helps maintain reliable performance throughout the equipment’s service life.

Automatic Safety Locks Improve Operator Protection

Safety is a critical factor for any automotive lifting equipment.

This model is equipped with automatic pneumatic safety locks that engage at multiple lifting heights. The locking system provides additional support during maintenance operations and reduces dependence on hydraulic pressure alone.

When technicians work under a raised vehicle, mechanical safety locking is essential because it helps maintain the platform position even if unexpected hydraulic pressure changes occur.

The pneumatic release system allows operators to control the locking mechanism conveniently during daily use.

For professional workshops, safety performance depends on both equipment design and operating discipline. Technicians should confirm that safety locks are fully engaged before entering the working area and perform regular inspections of locking components.

Reliable safety systems help create a more secure working environment and support stable daily workshop operation.

Strong Steel Construction Supports Long-Term Workshop Use

Automotive lifting equipment operates under repeated mechanical stress every day. A durable structure is necessary to maintain performance over long periods of use.

This ultra thin scissor car lift uses reinforced steel construction designed for professional workshop environments. The strong frame structure helps improve stability when lifting heavy vehicles and supports continuous service operations.

The durable design is suitable for businesses that require reliable equipment for daily tire service, vehicle inspection, repair work, and maintenance operations.

Surface protection and regular maintenance also play important roles in extending equipment life. Keeping the lift clean, checking moving components, and inspecting hydraulic systems regularly can help reduce unexpected downtime.

For international buyers, choosing equipment with a strong structure and reliable factory support helps improve long-term ownership value.

Space-Saving Solution for Tire Shops and Alignment Centers

Workshop layout is a major consideration when selecting automotive lifting equipment.

The ultra thin scissor design provides a compact solution for businesses that need high lifting performance without occupying excessive floor space.

This lift is suitable for professional tire shops, wheel alignment centers, quick-lube service bays, and automotive repair workshops that require flexible equipment installation.

Its adjustable platform length, low minimum height, and full-rise lifting capability allow you to handle different service tasks within one working area.

For workshops operating in limited spaces, efficient equipment selection can help improve vehicle flow, increase service capacity, and maximize the value of each service bay.

Applications of a 4000kg Ultra Thin Scissor Car Lift

This type of lift is designed for professional automotive service environments where space efficiency and lifting performance are both important.

It can be used for tire replacement, wheel alignment preparation, brake inspection, suspension maintenance, chassis inspection, engine-related service, and general vehicle repair.

Typical users include independent garages, automotive service centers, tire maintenance businesses, and workshops that serve SUVs and larger vehicles.

Before ordering, you should confirm your target vehicle types, workshop dimensions, floor conditions, electrical requirements, and daily service needs. Proper selection helps ensure that the lift matches your actual working environment.

Frequently Asked Questions

What vehicles can a 4000kg ultra thin scissor car lift support?

A 4000kg ultra thin scissor car lift can support many SUVs, passenger vehicles, and commercial vans within the rated capacity. Vehicle weight, lifting points, and platform compatibility should be confirmed before operation.

Is an ultra thin scissor lift suitable for wheel alignment work?

Yes. This type of lift can be used in wheel alignment centers when the platform design and alignment equipment requirements are properly matched.

What is the advantage of a full-rise 1800mm lifting height?

The 1800mm lifting height provides more working space under the vehicle, making it easier for technicians to perform maintenance and inspection tasks compared with lower lifting systems.

How does hydraulic synchronization improve safety?

The dual-cylinder master-slave synchronization system helps maintain balanced lifting movement, reducing uneven platform movement and improving vehicle stability during operation.

Conclusion

The 4000kg ultra thin scissor car lift exported to Thailand provides a practical heavy-duty lifting solution for professional automotive workshops. With a four-ton load capacity, 1800mm full-rise height, adjustable platform design, dual-cylinder hydraulic synchronization, automatic pneumatic safety locks, and reinforced steel construction, this lift helps you improve service efficiency while saving valuable workshop space.

For tire shops, wheel alignment centers, and repair businesses handling SUVs, passenger vehicles, and commercial vans, selecting a reliable ultra thin scissor car lift can provide safer operation, better workflow organization, and stronger long-term equipment value. By confirming vehicle requirements, installation conditions, and service applications before purchase, you can achieve more stable performance and higher workshop productivity.
