Why Choose the AX-4000AU Inground Scissor Car Lift?

A professional workshop needs lifting equipment that supports vehicle access, underbody service, wheel alignment, and efficient use of floor space. The AX-4000AU inground ultra-thin scissor car lift combines a 4000kg load capacity, 1800mm lifting height, long platforms, and secondary lifting for repair shops that need a clean and practical service bay.

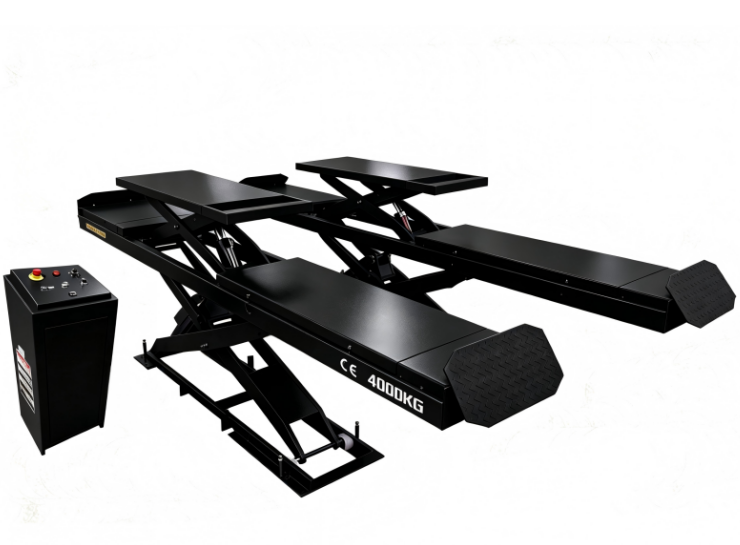

AX-4000AU Inground Scissor Lift for Professional Workshops

The AX-4000AU is an underground ultra-thin scissor car lift designed for professional automotive repair and wheel alignment applications.

Its main advantage is the combination of a full-length platform and an inground installation structure. When the lift is fully lowered, the main mechanism remains largely below floor level, creating a cleaner service area with fewer obstacles around the vehicle.

The rated lifting capacity is 4000kg, allowing the lift to support many passenger cars, SUVs, and light commercial vehicles within the permitted load range.

A maximum lifting height of 1800mm gives technicians practical access to the underside of the vehicle, while the secondary lifting system provides an additional 470mm of movement for wheel-free service operations.

The main specifications include:

• Model: AX-4000AU
• Lifting capacity: 4000kg
• Platform length: 4500mm
• Platform width: 600mm
• Maximum lifting height: 1800mm
• Secondary lifting: 470mm
• Minimum height: 200mm
• Lifting time: 50–60 seconds
• Motor power: 2.2kW
• Power supply: 220V, 50Hz, single-phase optional

For workshops that want one service bay to support wheel alignment, chassis inspection, tire service, and general maintenance, this configuration provides useful flexibility.

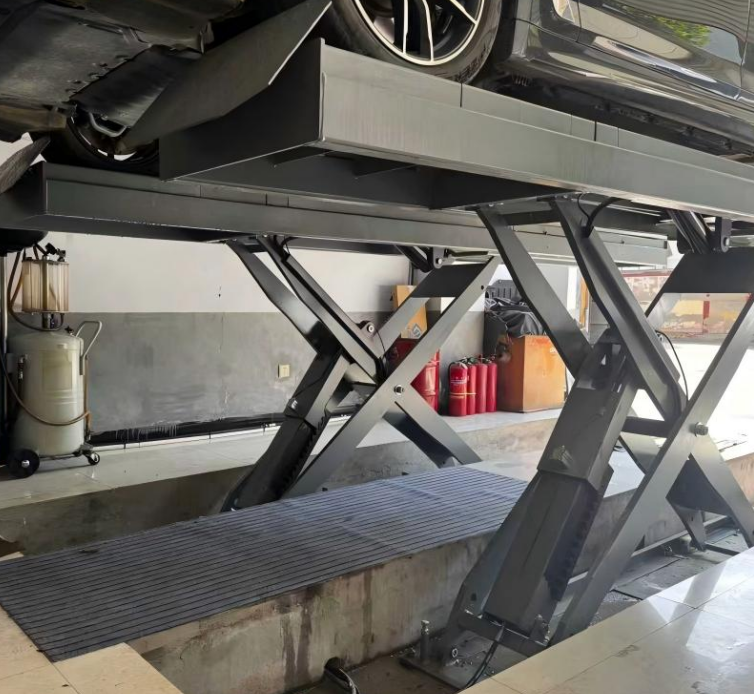

Inground Installation Creates a Cleaner Workshop Floor

One of the main reasons to choose an inground scissor car lift is the cleaner floor layout.

With a traditional surface-mounted lift, platforms, ramps, and lifting structures remain visible above the floor even when the machine is not being used.

The AX-4000AU uses an underground installation structure that allows the lifting mechanism to be recessed into the workshop floor. When lowered, the working area becomes much flatter and easier to move through.

This is especially valuable in workshops where the same service bay is used for several different tasks.

Technicians can move tools, wheel alignment equipment, inspection devices, and service carts around the bay without navigating around large permanent structures.

Vehicle movement also becomes easier because the workshop floor remains more open.

For businesses that place importance on workshop appearance, a hidden lifting mechanism also creates a more professional and organized visual environment.

The trade-off is that in-ground installation requires more preparation than a basic surface-mounted lift. Before installation, the workshop needs to confirm pit dimensions, concrete structure, drainage conditions, foundation strength, and the final installation drawing.

4500mm Long Platforms Support Wheel Alignment Work

The AX-4000AU uses full-length platforms measuring 4500mm long and 600mm wide.

This type of long platform is particularly useful for wheel alignment and inspection applications because the vehicle remains supported by its wheels on a stable drive-on surface.

For wheel alignment work, consistent vehicle positioning is important. A long platform gives you more room to accommodate vehicles with different wheelbases and provides a stable base for alignment-related operations.

Compared with smaller lifting platforms designed mainly for tire service, the 4500mm deck gives workshops more flexibility when handling sedans, SUVs, and selected light commercial vehicles.

The long platform also makes vehicle positioning more straightforward because the driver can enter the bay and place the vehicle directly on the lift.

If wheel alignment is one of your main workshop services, you should still confirm the final platform configuration before ordering.

Different alignment systems may require front turntables, rear slip plates, level compensation, or dedicated mounting positions.

Providing your alignment equipment model and vehicle range to the lift supplier before production can help ensure the platform configuration matches your actual workflow.

A 4000kg Capacity Supports Daily Repair Shop Work

The rated load capacity of the AX-4000AU is 4000kg.

That gives the lift enough capacity for many passenger cars, SUVs, crossovers, and some light commercial vehicles within the specified limit.

For an independent repair shop, a 4-ton capacity offers useful flexibility because the same bay can handle a wider range of customer vehicles.

However, maximum load capacity should not be treated as the only factor when determining vehicle compatibility.

You should also consider wheelbase, track width, vehicle length, center of gravity, weight distribution, tire position, and the way the vehicle sits on the platforms.

A vehicle below 4000kg may still require special attention if it has an unusual weight distribution or dimensions that do not match the usable platform area.

Before lifting, technicians should confirm that the vehicle is correctly positioned and that its actual weight remains within the rated capacity.

Good operating practice is just as important as the lift's structural capability.

1800mm Lifting Height Gives Better Underbody Access

The AX-4000AU reaches a maximum lifting height of 1800mm.

This full-rise capability provides technicians with practical access to the chassis and underside of the vehicle for inspection and repair.

It can support work such as chassis inspection, exhaust servicing, suspension checks, oil changes, underbody repair, and other routine mechanical maintenance.

For technicians who regularly spend time below vehicles, sufficient working height can improve both comfort and efficiency.

A higher working position reduces repeated bending and helps technicians see components more clearly.

This can be particularly useful when diagnosing suspension problems, checking underbody damage, or performing longer repair procedures.

The lifting cycle takes approximately 50–60 seconds, providing controlled movement suitable for normal workshop use.

Actual lifting time may vary slightly depending on vehicle weight, hydraulic condition, ambient temperature, and power supply.

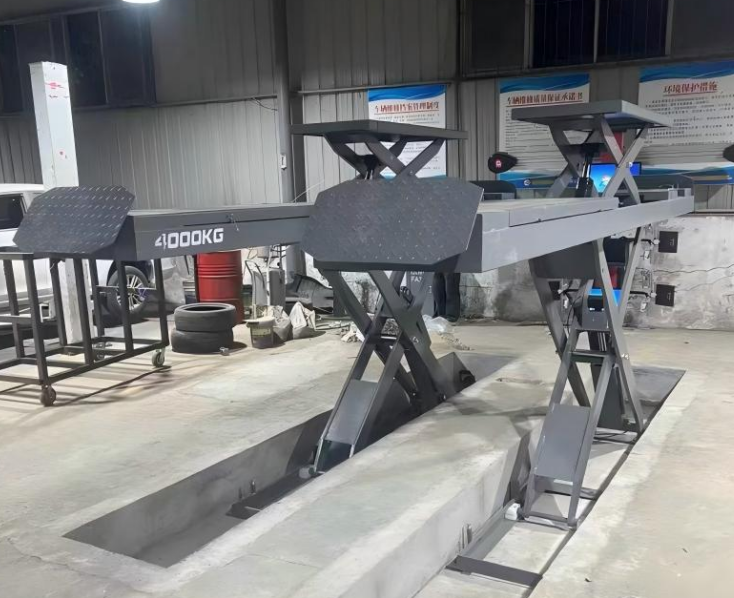

Secondary Lifting Helps Free the Wheels for Service

A full-length drive-on platform is useful for wheel alignment, but many maintenance operations require the wheels to be unloaded.

The AX-4000AU includes a secondary lifting system with 470mm of additional lift.

This allows the vehicle body to be raised relative to the main platforms so the wheels can become free.

That makes the lift more versatile for tire replacement, brake service, wheel inspection, suspension work, and related maintenance.

For a wheel alignment center, this can improve workflow because the vehicle can remain on the same main platform while technicians switch between alignment preparation and wheel-free service operations.

There is less need to move the vehicle to another lift just to remove the wheels.

This can save time and reduce unnecessary vehicle movement between service bays.

The secondary lifting points should always be positioned according to the vehicle manufacturer's recommended support areas and the lift manufacturer's operating instructions.

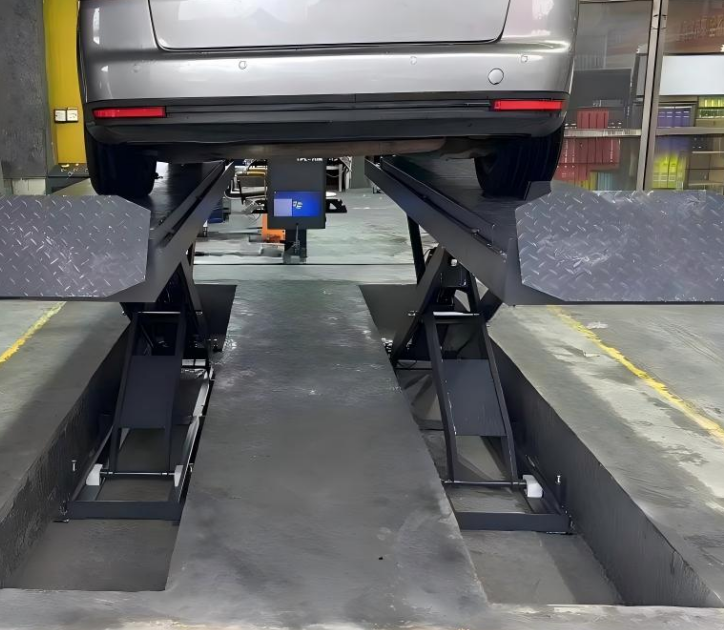

Low-Profile Entry Makes Vehicle Positioning Easier

The minimum height of the AX-4000AU is 200mm.

Combined with the in-ground installation layout, the lift can create a relatively low and straightforward vehicle entry path.

This is useful for workshops servicing a mixture of standard passenger cars, SUVs, and vehicles with lower ground clearance.

A lower entry profile reduces the difficulty of positioning a vehicle on the platforms and can make daily operation more convenient for technicians.

For busy service centers, easier vehicle entry can improve bay turnover because less time is spent repeatedly adjusting the approach position.

Even with a low-profile design, you should check vehicle ground clearance before use.

Low body panels, side skirts, underbody covers, battery housings, and aerodynamic components should remain clear during vehicle entry.

Correct vehicle positioning is still essential before lifting begins.

A Hidden Mechanism Improves Workshop Organization

Workshop efficiency is influenced by more than lifting speed.

How easily technicians can move around the service bay also affects daily productivity.

Because the AX-4000AU uses an underground structure, much of the lifting mechanism remains hidden below floor level when the machine is lowered.

This creates a cleaner working area and reduces the number of permanent obstacles around the bay.

For workshops with several technicians working close together, this can make it easier to move tools, equipment, and parts between service areas.

It can also make the workshop look more organized when customers can see the service floor.

A clean layout is particularly useful for wheel alignment centers, dealership workshops, and higher-volume service businesses where vehicle movement needs to remain predictable.

The inground design therefore provides both functional and visual benefits.

The 2.2kW Power Unit Supports Routine Operation

The lift uses a 2.2kW motor and can be configured for 220V, 50Hz, single-phase power.

This electrical configuration can be practical for workshops where suitable single-phase power is available.

Before installation, however, you should confirm more than voltage alone.

The electrical circuit should be checked for breaker capacity, cable size, grounding, starting current, and connection requirements.

A qualified electrician should compare the actual workshop power conditions with the final motor nameplate and wiring diagram.

Incorrect electrical supply can affect motor starting performance, lifting speed, and long-term reliability.

For export orders, confirming voltage, frequency, and phase before production is especially important because electrical standards differ between markets.

How the AX-4000AU Fits a Wheel Alignment Workflow

The AX-4000AU is particularly well suited to workshops that combine alignment work with general vehicle maintenance.

A vehicle can first be driven onto the long platform for inspection and alignment preparation.

The full-length deck keeps all four wheels supported while technicians check vehicle position and alignment-related conditions.

When wheel-free access is needed, the secondary lifting system can raise the vehicle body while leaving the main platform in place.

After tire, brake, or suspension work is completed, the vehicle can return to the main platform position for further alignment or inspection.

This reduces unnecessary movement between different machines.

For workshops trying to improve throughput, a multi-function lift can help one bay perform several stages of vehicle service.

The exact workflow will still depend on your alignment equipment, accessories, workshop layout, and the vehicles you commonly handle.

What Should You Confirm Before Installing an Inground Lift?

An inground lift requires more planning than simply placing a machine on an existing floor.

Before installation, you should obtain the final pit and foundation drawings for the AX-4000AU.

The workshop should confirm pit length, width, depth, drainage, concrete strength, floor levelness, water protection, hydraulic routing, electrical supply, and enough surrounding space for vehicle movement.

The installation area must also accommodate the 4500mm platform length and the vehicle approach distance.

Because this is a 4000kg lifting system, the foundation must be prepared according to the manufacturer's structural requirements.

The supplied product information does not specify any particular certification, so certification should not be assumed.

If your market requires specific automotive lift, machinery, electrical, or workplace safety standards, confirm the relevant documentation for the exact AX-4000AU configuration before ordering.

You should also request the installation drawing, hydraulic diagram, electrical schematic, operating manual, safety information, maintenance schedule, load-test records, spare-parts list, and technical support information.

Frequently Asked Questions

Is the AX-4000AU suitable for wheel alignment?

Yes. Its 4500mm full-length platforms provide a stable drive-on surface suitable for wheel alignment-related work. The exact turntable, slip-plate, and alignment accessory configuration should be confirmed according to your alignment system.

What vehicles can a 4000kg inground scissor lift handle?

The lift can support many passenger cars, SUVs, crossovers, and selected light commercial vehicles within the rated 4000kg capacity. Actual compatibility depends on vehicle weight, dimensions, wheelbase, and weight distribution.

What is the purpose of the 470mm secondary lift?

The secondary lifting system raises the vehicle body relative to the main platform, allowing the wheels to become unloaded for tire replacement, brake service, suspension work, and related maintenance.

Does an inground scissor lift require special foundation work?

Yes. A recessed lift requires a properly prepared pit and foundation. Pit dimensions, concrete strength, drainage, floor levelness, hydraulic routing, and electrical requirements should be confirmed from the final installation drawings before construction.

Conclusion

The AX-4000AU underground ultra-thin scissor car lift combines a 4000kg lifting capacity, 4500mm full-length platforms, 1800mm maximum lifting height, 470mm secondary lifting system, 200mm minimum height, and 2.2kW hydraulic power unit. Its in-ground flush-floor installation keeps the lifting mechanism largely hidden and creates a cleaner service bay for wheel alignment, chassis inspection, tire work, and general maintenance.

For wheel alignment centers, independent repair shops, and automotive service businesses that want to combine a clean workshop layout with multi-purpose lifting capability, the AX-4000AU provides a practical solution. By confirming vehicle range, alignment accessories, pit construction, foundation requirements, electrical supply, safety documentation, and maintenance support before installation, you can build a more efficient and organized service workflow.
