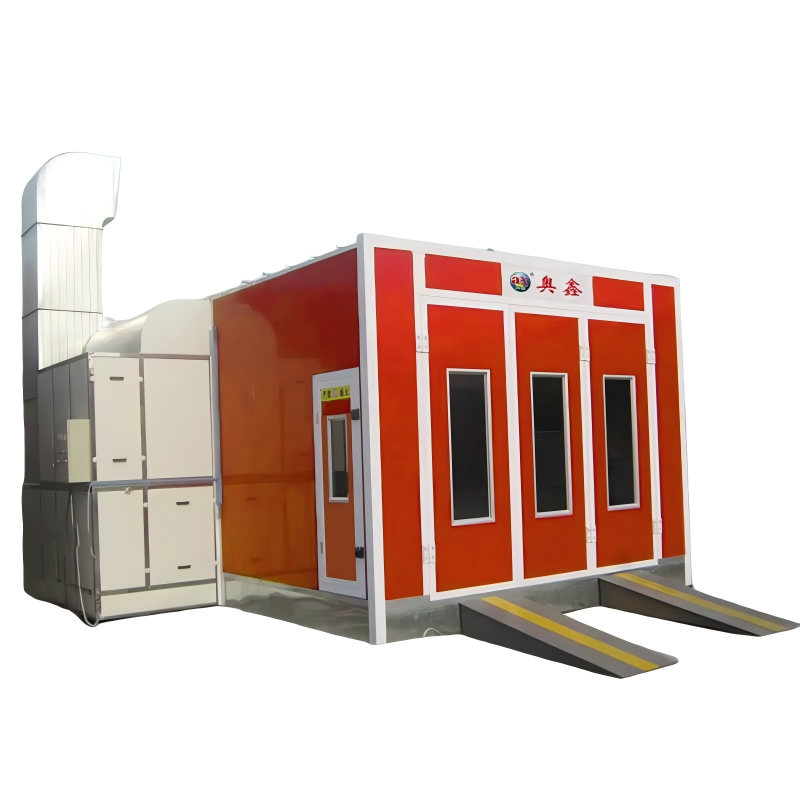

High-Performance Car Spray Booth for Automotive Finishing (2).png

High-Performance Car Spray Booth for Automotive Finishing (3).png

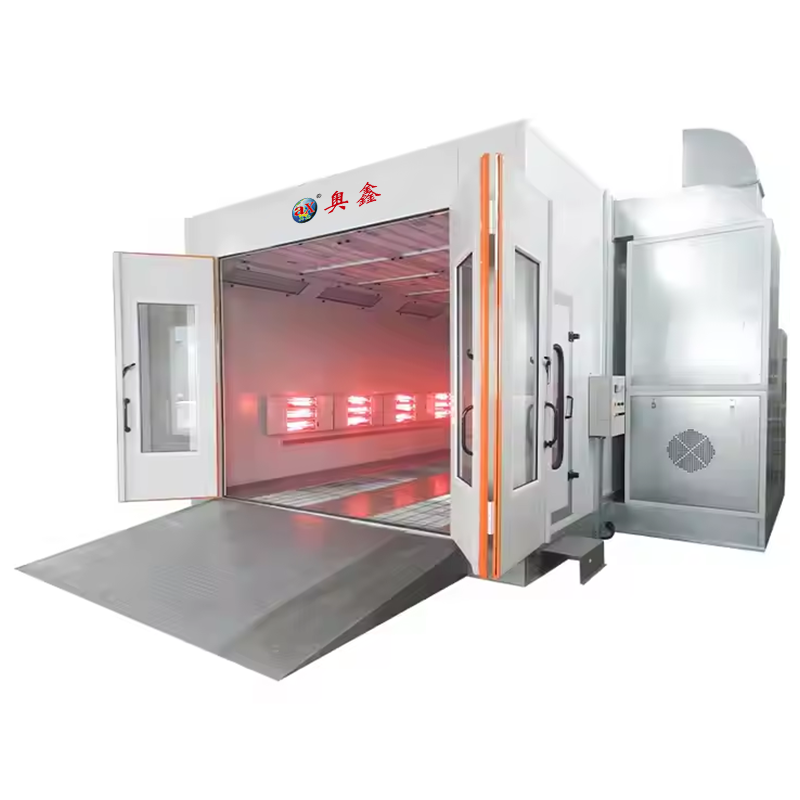

High-Performance Car Spray Booth for Automotive Finishing (4).png

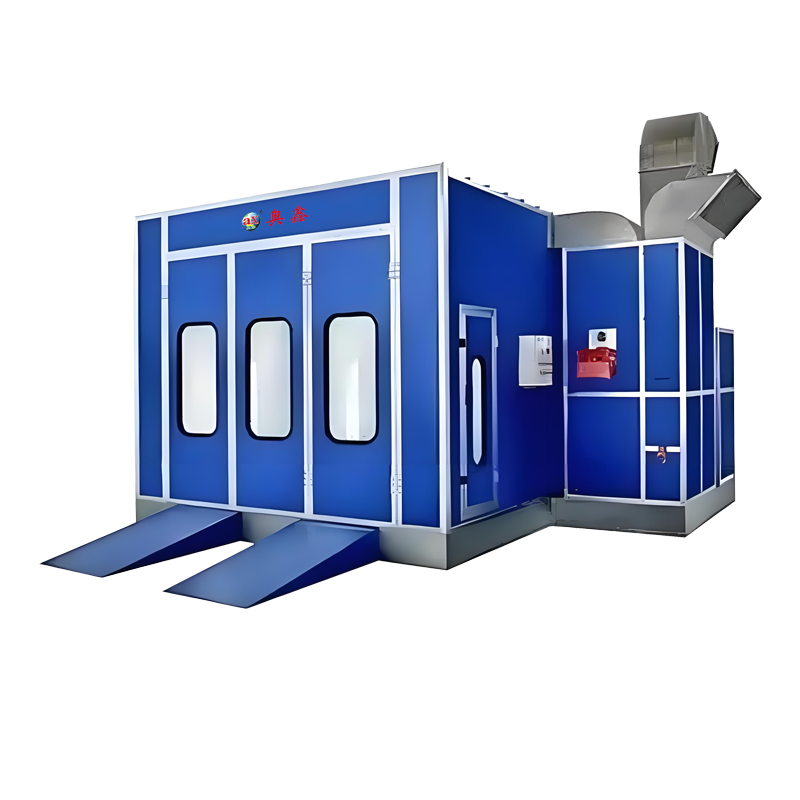

High-Performance Car Spray Booth for Automotive Finishing (6).png

Professional Automotive Spray Booth for Precision Car Painting

Achieving a flawless vehicle finish requires more than skill—it demands the right environment. Our professional automotive spray booth is designed to provide a controlled, safe, and efficient space for painting cars, SUVs, vans, and light trucks. With a focus on airflow management, temperature control, and high-efficiency filtration, this spray booth ensures consistent results for automotive repair shops, dealerships, and custom painting centers.

+86 139 6400 6968 xinaoxingongsi@163.com Contact Us

Product Features and Specifications

Insulated Wall Panels	High-quality EPS double-layer insulation panels with colorful steel skin. Panel thickness: 50mm. Galvanized steel roof ensures fire safety and effective heat insulation.
Ventilation System	Inlet: Two sets of double-intake centrifugal fans, each 5.5kW, providing 16,000 m³/h airflow per set. Outlet: Two sets of double-intake centrifugal fans, each 7.5kW, providing 20,000 m³/h airflow per set. Air velocity: 0.4 m/s, with a ventilation rate of 320 times per hour for a dust-free painting environment.
Heating & Curing	Diesel burner with 200,000 kcal/h capacity, featuring electric or pneumatic dampers. Operating temperature: 80°C, ideal for uniform paint curing and faster drying.
Lighting	48 units of 36W LED ceiling lights with powder-coated lightboxes deliver consistent illumination of 850–900 lux.
Filtration System	Primary filter removes particles larger than 10µm with 83% efficiency. Ceiling filter captures particles larger than 4µm at 98% efficiency, ensuring a clean, smooth finish.
Control System	Intelligent PLC system for controlling lighting, spraying, heat spraying, baking, temperature adjustment, time settings, and emergency stop for safe operation.
Structure	Powder-coated steel frame with reinforced beams and high-quality galvanized steel ducts for long-term durability and stability.

Applications and Industry Uses

● Auto Body Repair Shops: Restore vehicles to their original finish after collisions.

● Automotive Dealerships: Maintain fleets with touch-ups and repainting.

● Custom Car Paint Shops: Perfect for specialty paint jobs and detailing.

● Industrial Vehicle Painting: Suitable for trucks, vans, and light commercial vehicles.

Why Choose Us?

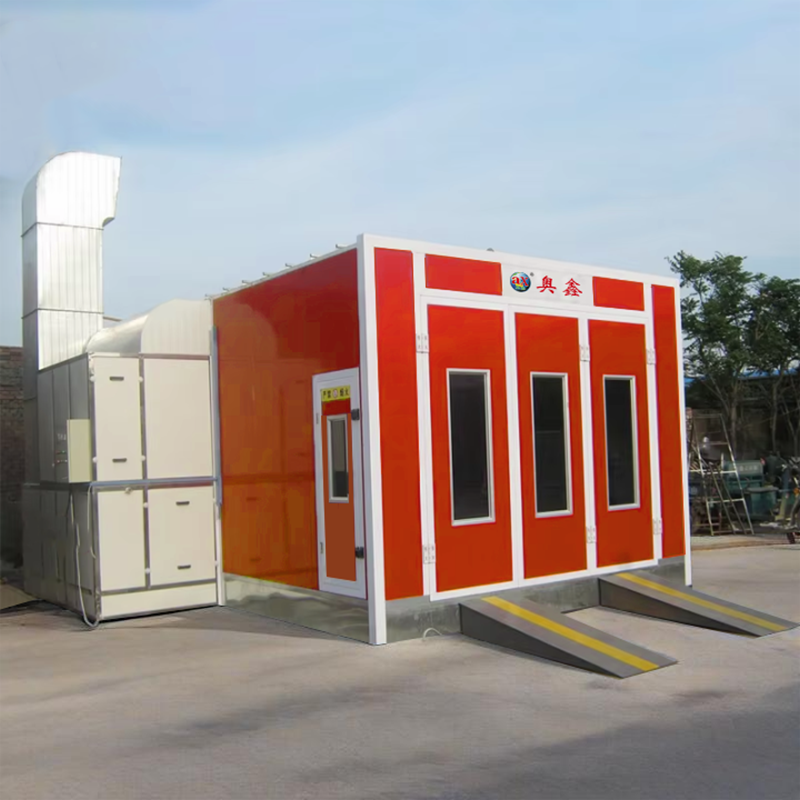

High-Performance Car Spray Booth for Automotive Finishing (22)

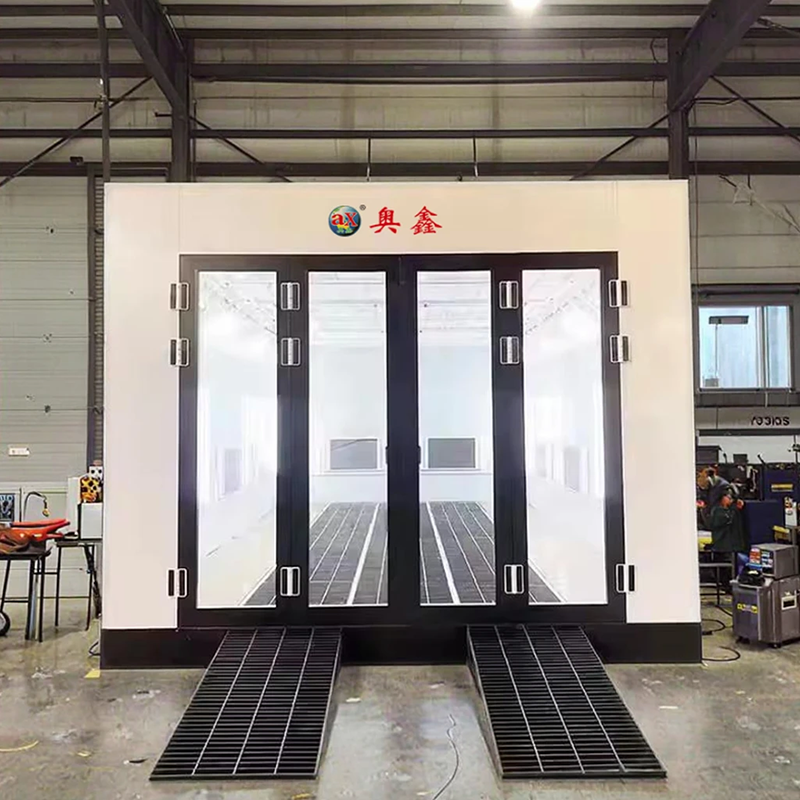

High-Performance Car Spray Booth for Automotive Finishing (23)

High-Performance Car Spray Booth for Automotive Finishing (1)

High-Performance Car Spray Booth for Automotive Finishing (2)

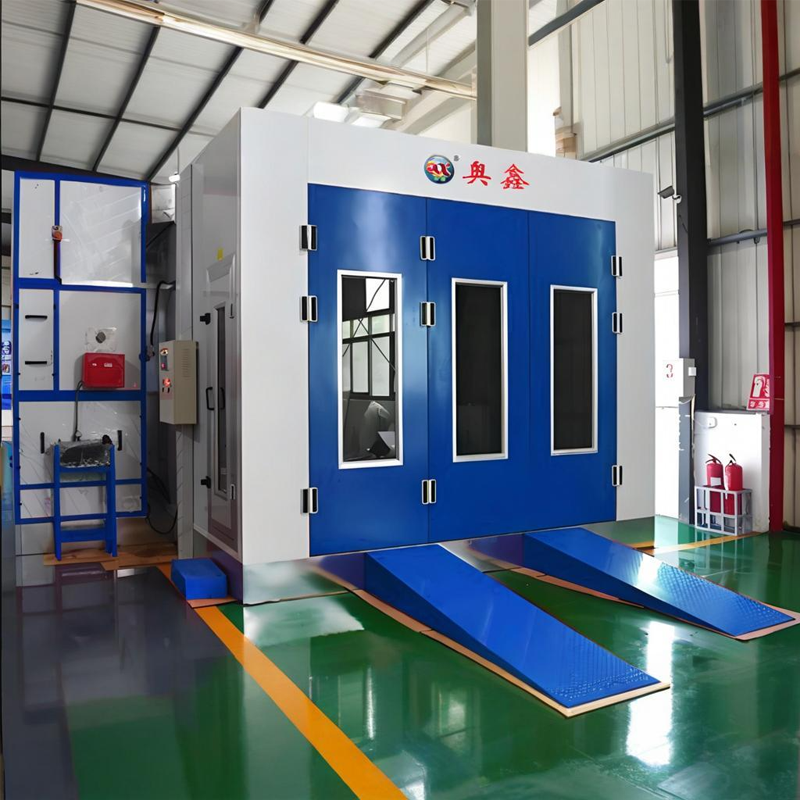

High-Performance Car Spray Booth for Automotive Finishing (9)

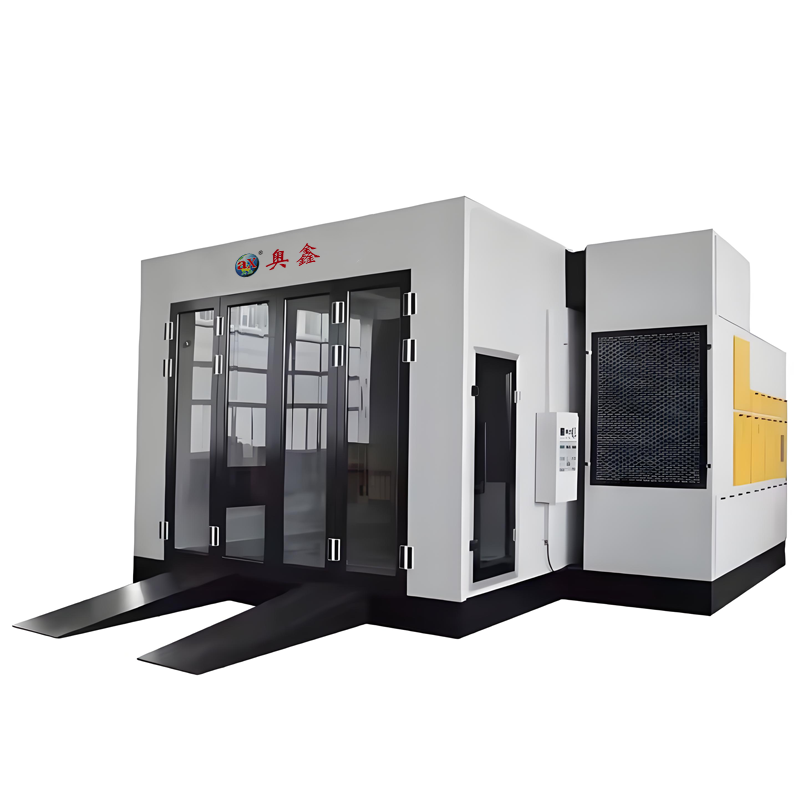

High-Performance Car Spray Booth for Automotive Finishing (3)

High-Performance Car Spray Booth for Automotive Finishing (4)

High-Performance Car Spray Booth for Automotive Finishing (6)

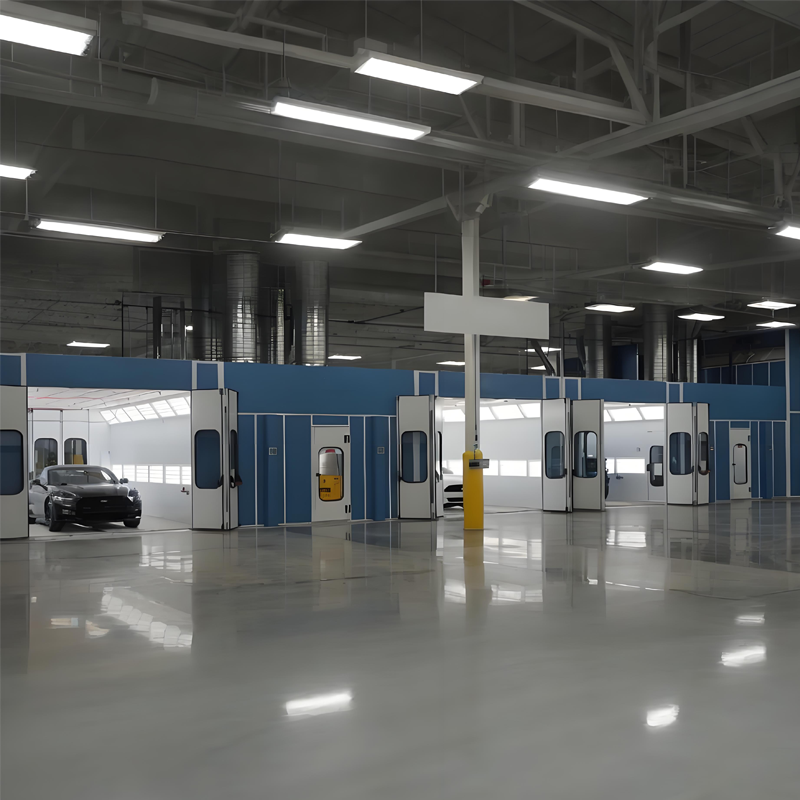

High-Performance Car Spray Booth for Automotive Finishing (13)

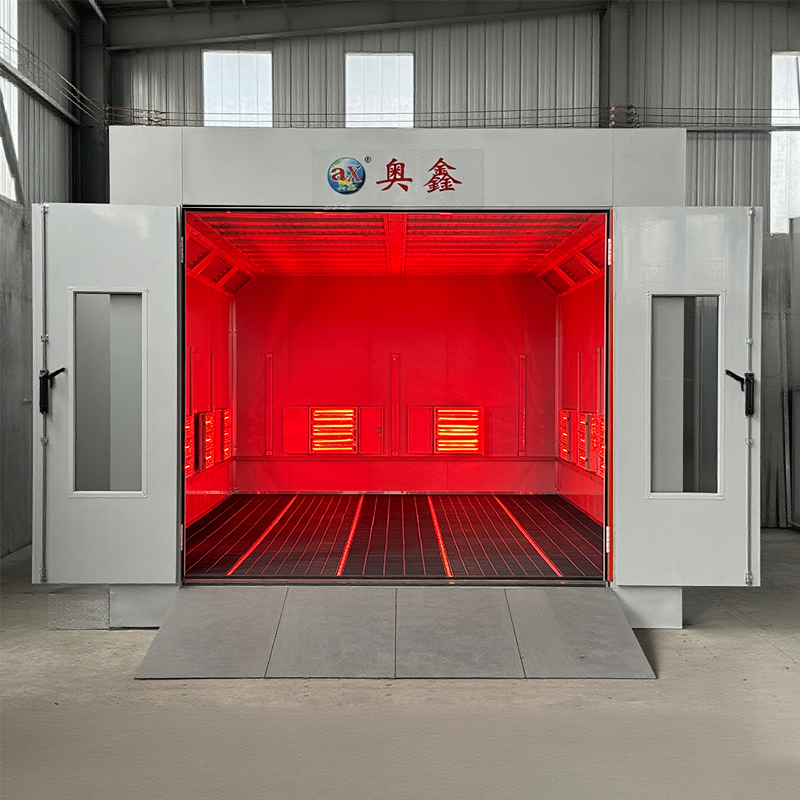

High-Performance Car Spray Booth for Automotive Finishing (14)

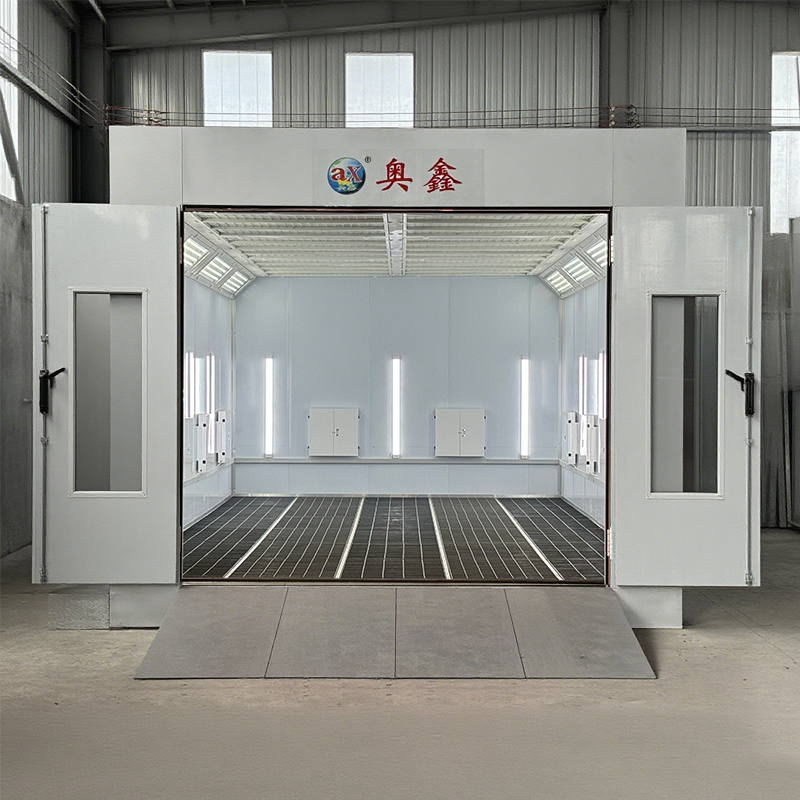

High-Performance Car Spray Booth for Automotive Finishing (15)

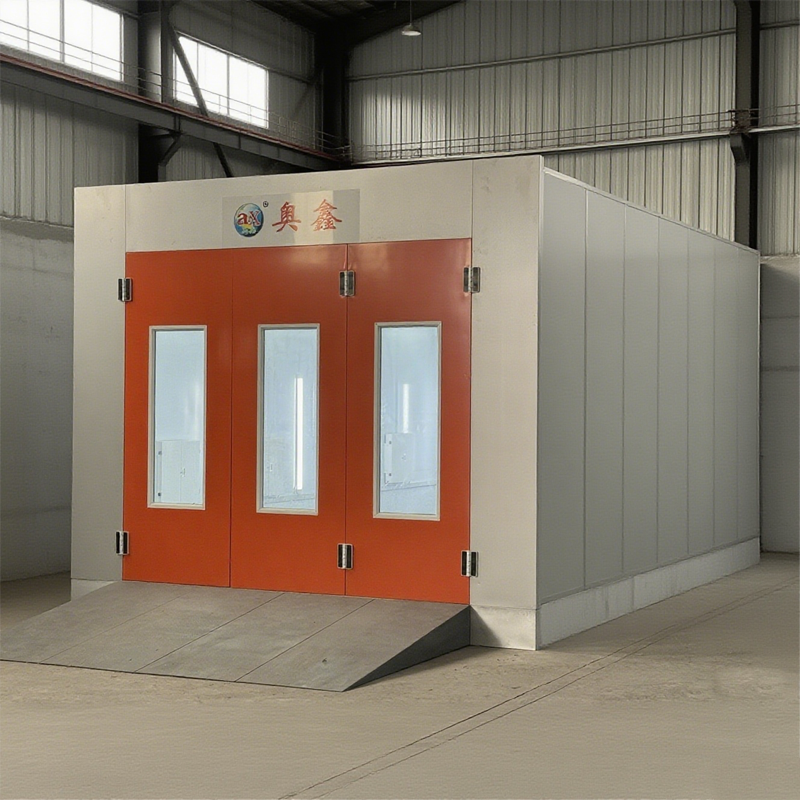

High-Performance Car Spray Booth for Automotive Finishing (16)

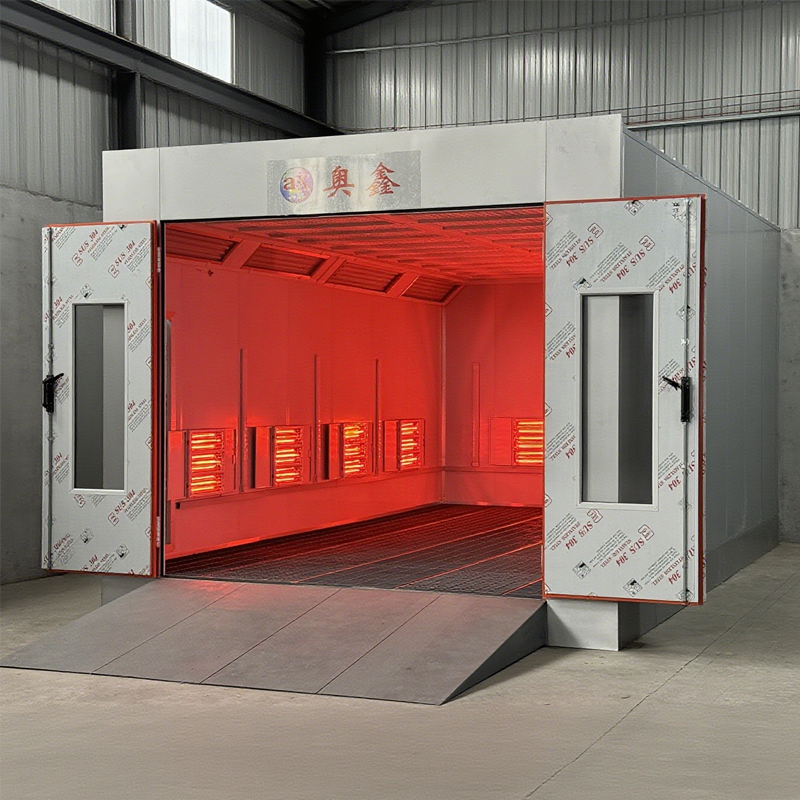

High-Performance Car Spray Booth for Automotive Finishing (17)

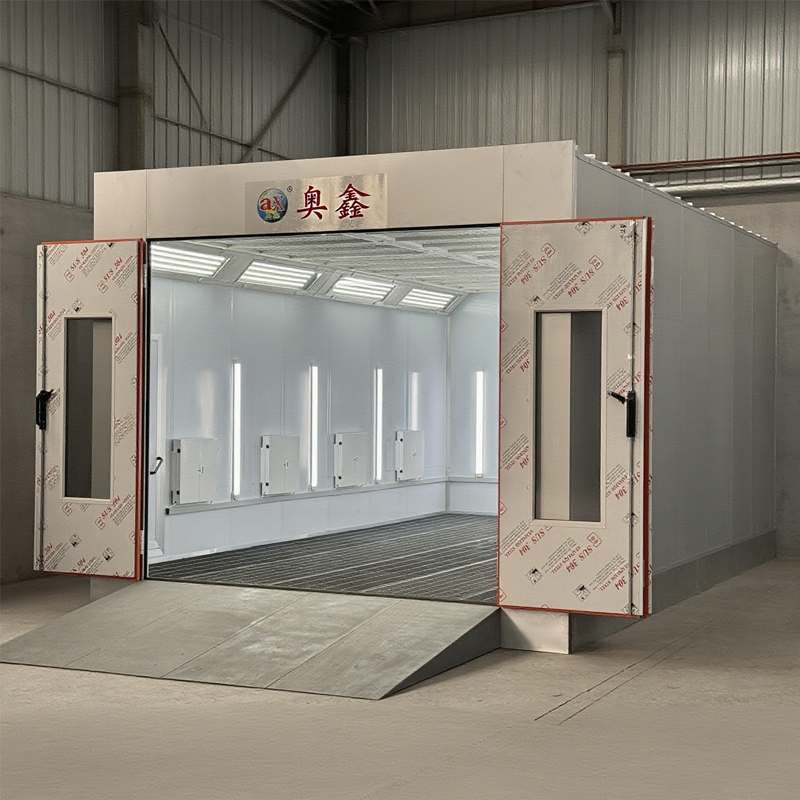

High-Performance Car Spray Booth for Automotive Finishing (18)

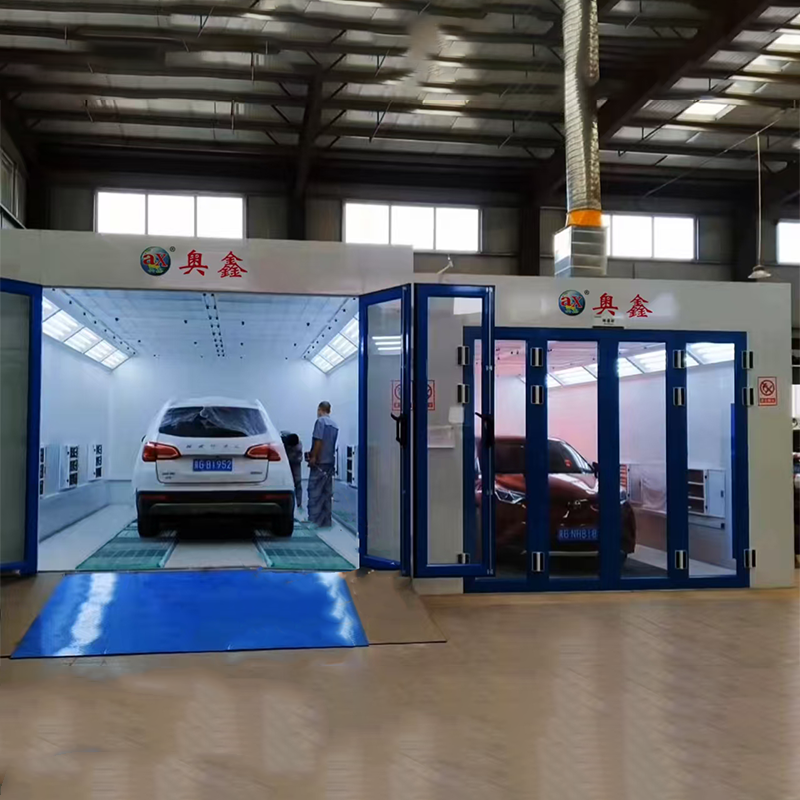

High-Performance Car Spray Booth for Automotive Finishing (20)

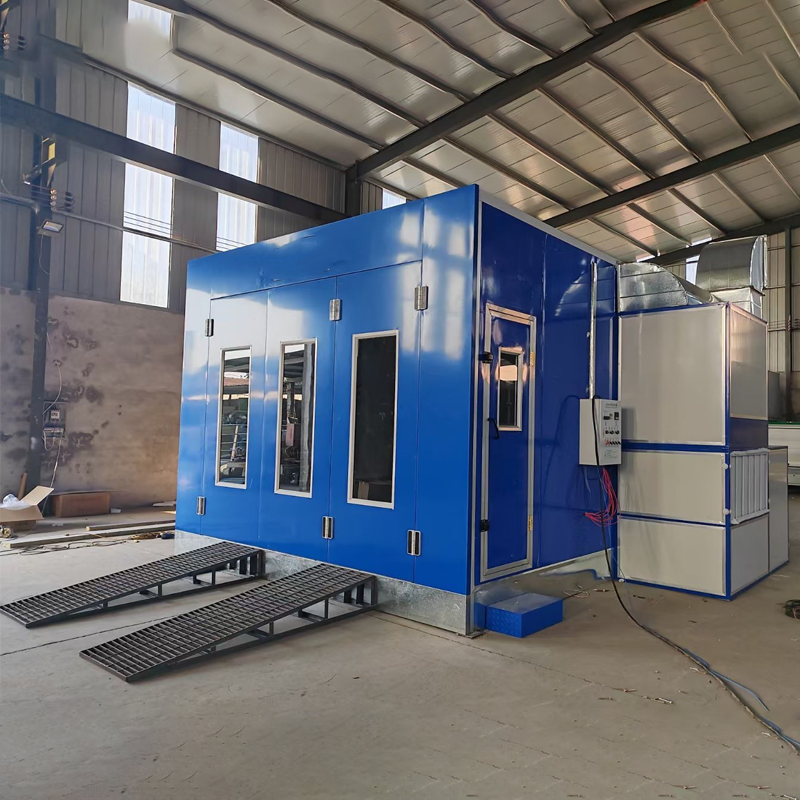

High-Performance Car Spray Booth for Automotive Finishing (21)

0102030405060708091011121314151617181920212223

Product Case

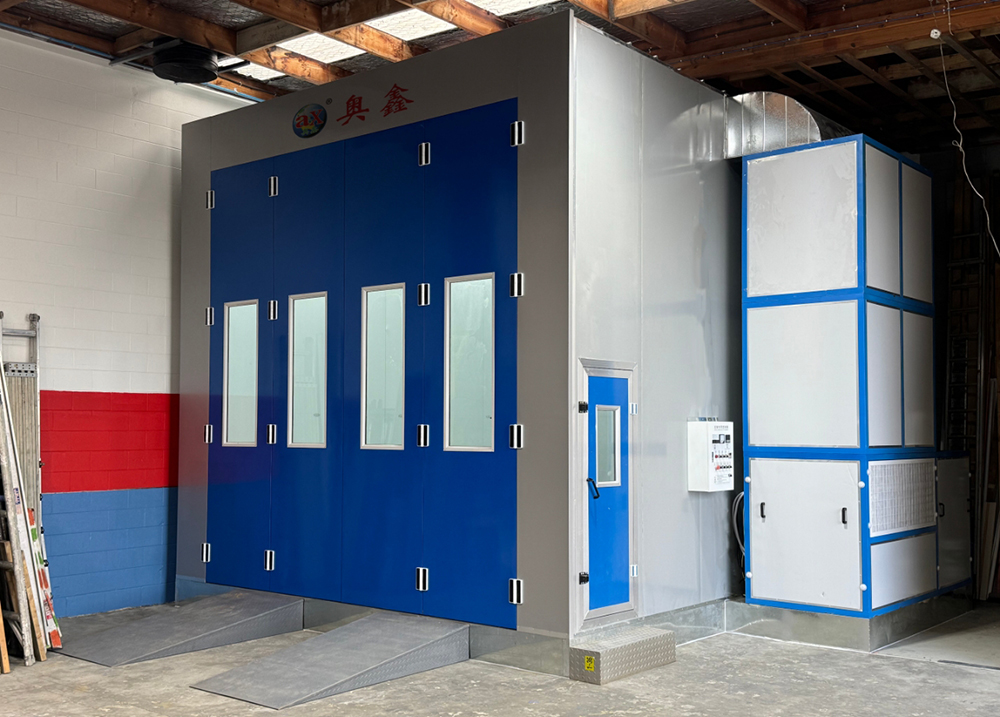

Customized version for New Zealand customers

Engineering case

01020304050607080910111213141516171819202122232425262728

Workshop Showcase

Production Equipment

Workshop

Production Equipment

Workshop

010203040506070809101112131415161718192021222324

Certificate

ISO9001 （2028）

ISO14001

ISO45001

Frequently Asked Questions (FAQ)

Q1: What types of vehicles are compatible with this spray booth?

A1: The booth can handle cars, SUVs, vans, and light trucks with ease.
Q2: Can the temperature be adjusted for different paint types?

A2: Yes, the booth allows precise temperature settings for water-based, solvent-based, and high-temperature paints.
Q3: How does this booth ensure a dust-free environment?

A3: Its high-capacity fans, ceiling and primary filters, and optimized airflow system maintain a contaminant-free painting area.
Q4: Is it suitable for large-scale workshops?

A4: Absolutely. With robust ventilation, heating, and control systems, it is ideal for both small shops and high-volume painting operations.

This automotive spray booth delivers consistent, professional results, maximizes energy efficiency, and creates a safe environment for painting operations. Its advanced design makes it the perfect solution for any modern automotive workshop seeking quality and reliability.
