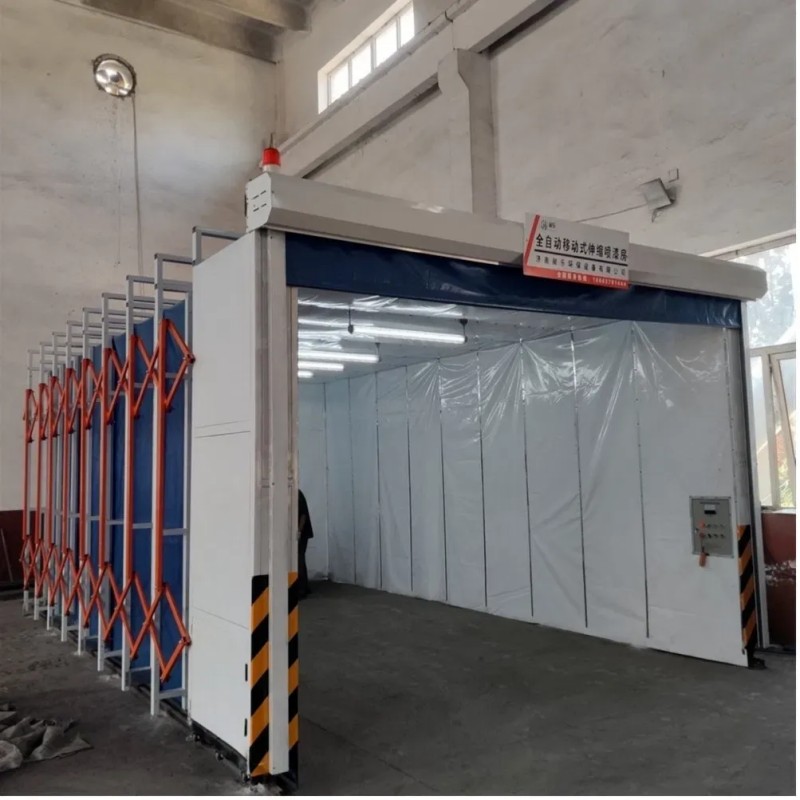

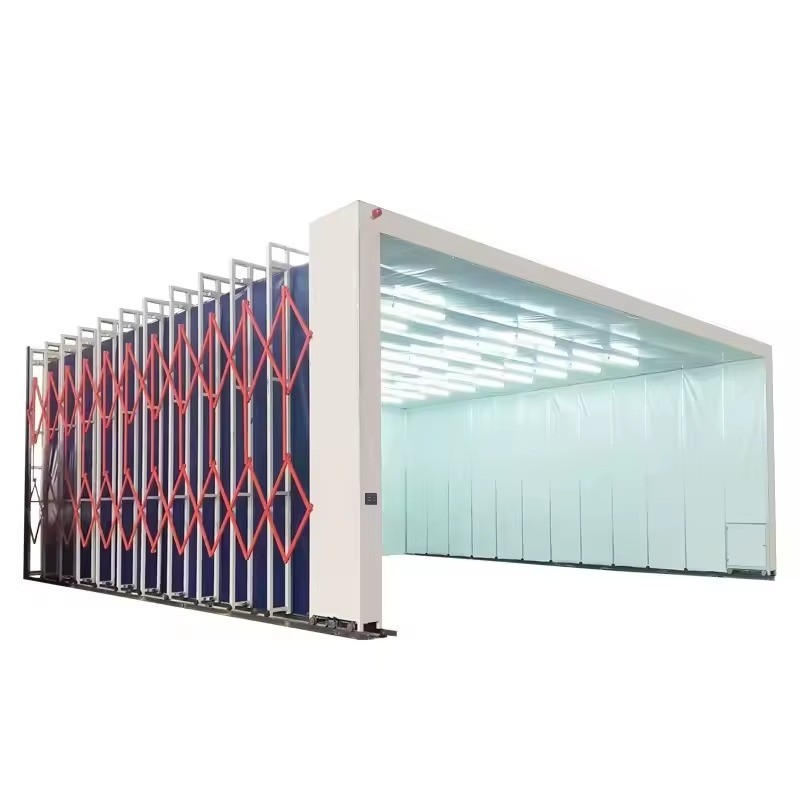

Space-Saving Retractable Paint Booth for Automotive and Industrial Use

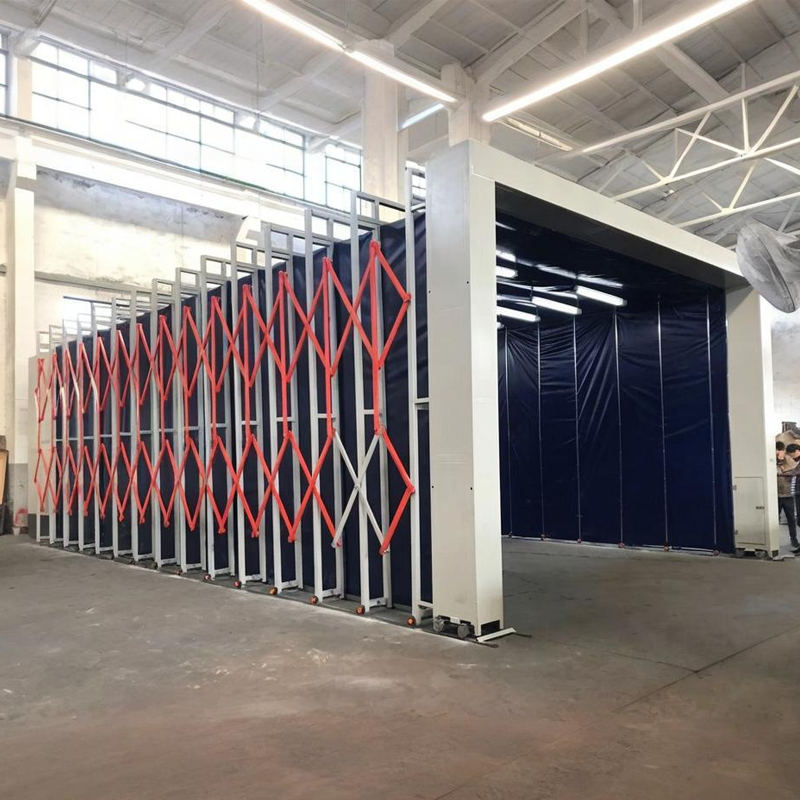

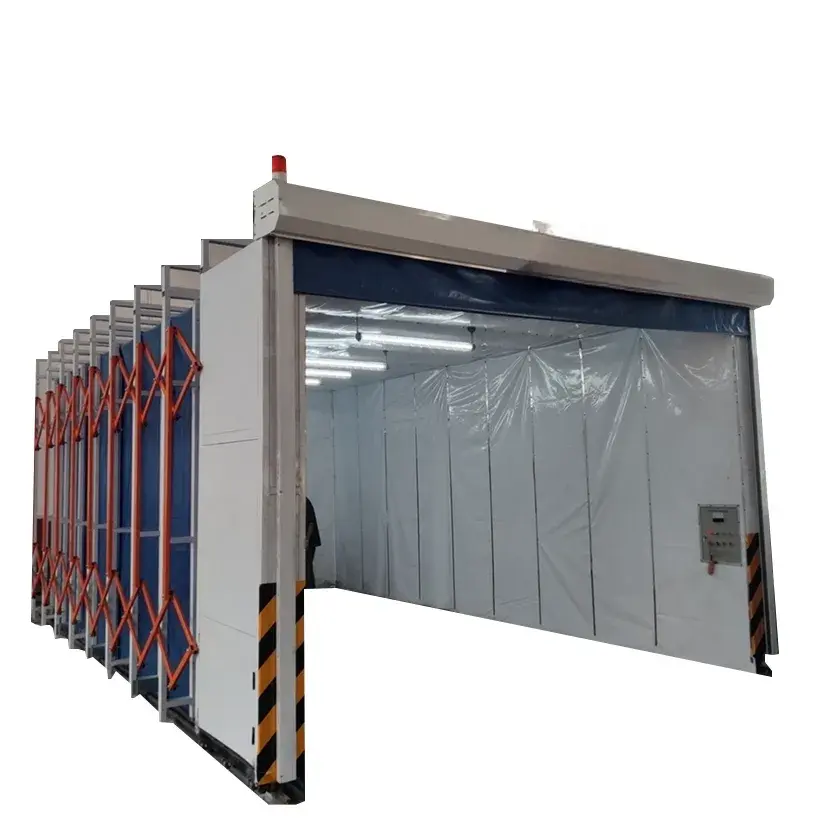

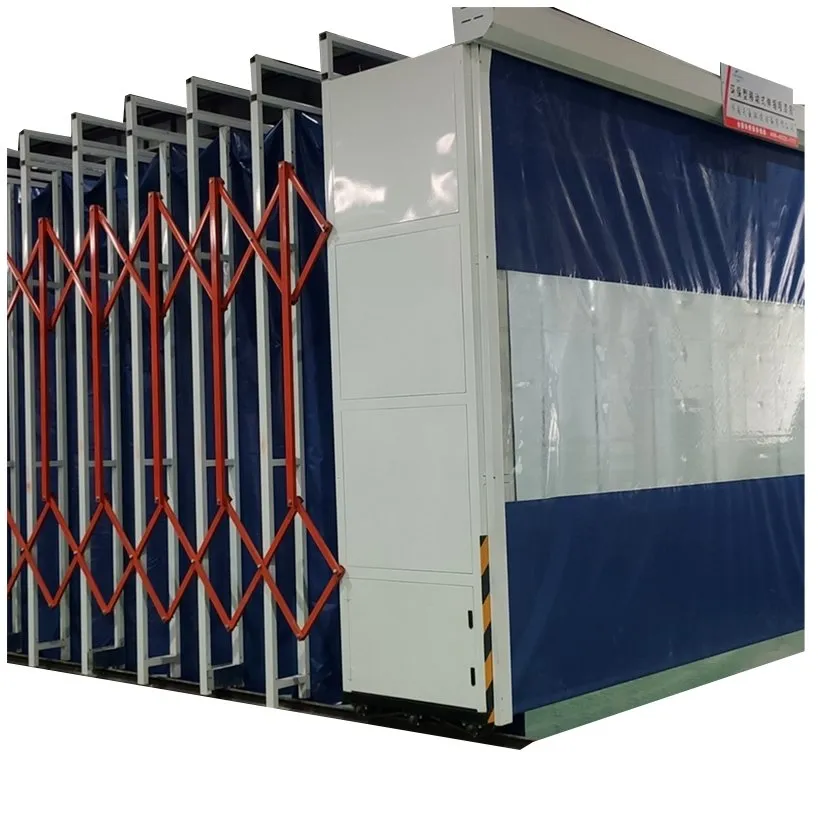

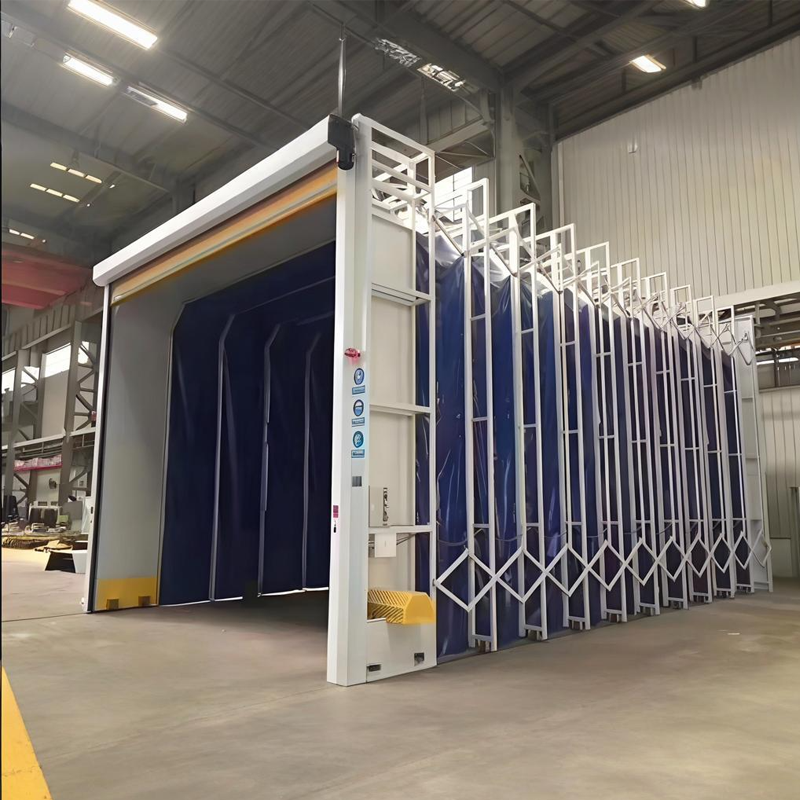

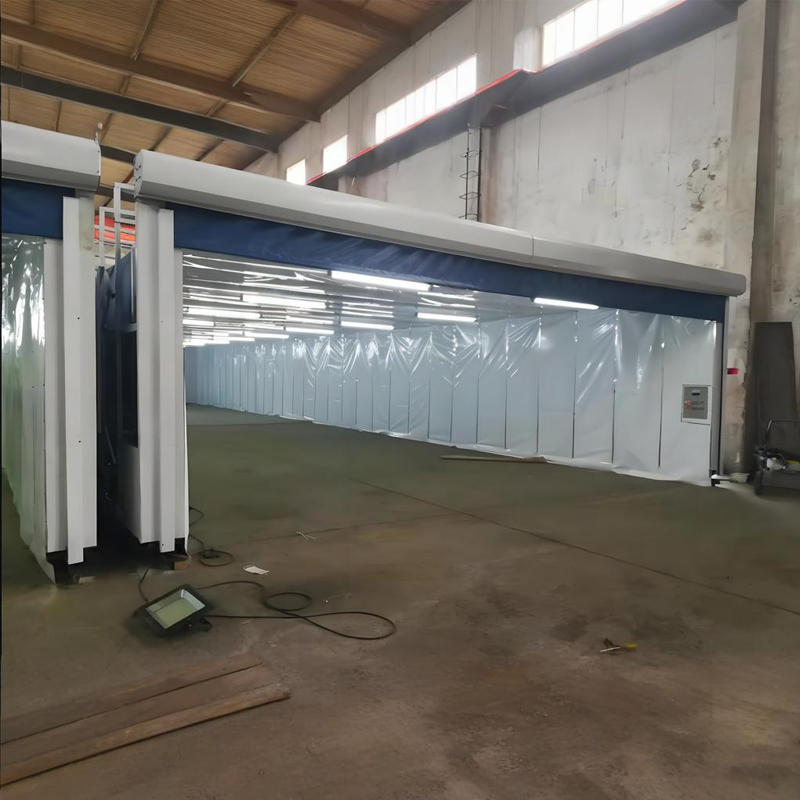

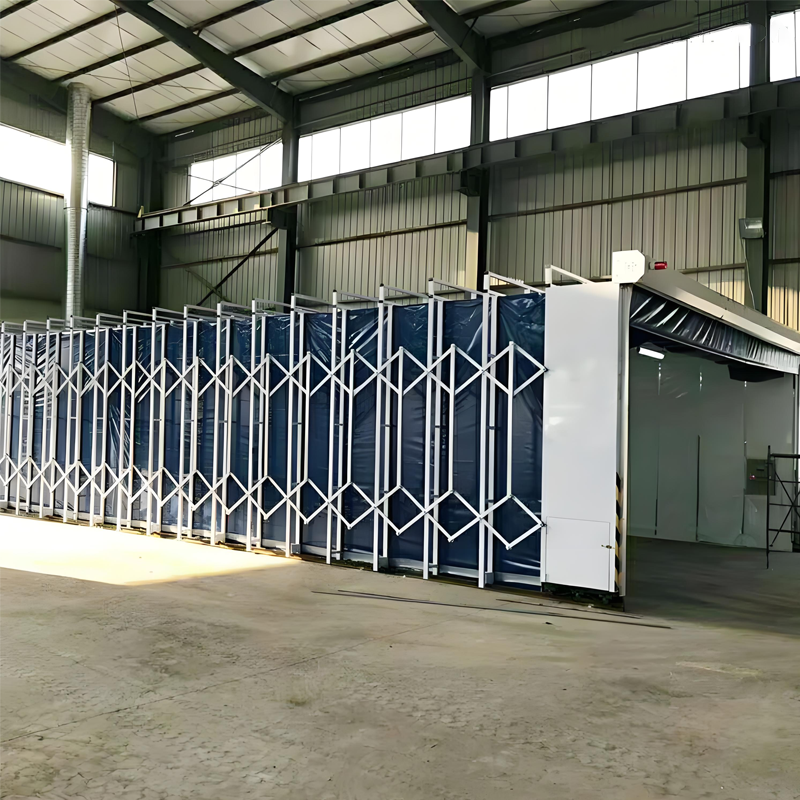

For workshops looking to optimize space without compromising painting quality, the retractable paint booth offers a flexible and reliable solution. Its innovative design allows the booth to extend when in use and retract when not needed, creating more room for vehicle maneuvering or additional equipment. Built for automotive repair centers, industrial part painting, and custom finishing workshops, this booth combines precision, safety, and efficiency in one compact system.

    +86 139 6400 6968 xinaoxingongsi@163.com Contact Us

    Key Product Features and Specifications

    Robust Gantry Frame Made of 40×60×1.5mm galvanized square tubes, providing a solid structure for long-term durability.
    Drive and Reducer System Equipped with two WPOA-70 type reducers (1:60 ratio) and dual 1.5KW copper-core motors to ensure smooth, consistent operation of the retractable mechanism.
    Light Rail & Press Plate Customizable 30mm light rail ensures proper alignment, while the 0.8mm galvanized press plate provides stability during painting.
    Telescopic Drive & Control Rod Includes a 50×30×1.5mm rectangular tube control connecting rod, shaft sleeve, start trolley, and gearbox for precise movement and safe handling.
    Sealing System Flame-retardant, high-temperature-resistant sealing cloth (2 meters wide) prevents overspray and maintains consistent airflow and temperature.
    Pulley & Shaft Assembly Constructed from A45 steel for reliable trolley motion.
    Lighting Industrial explosion-proof LED lamps (20W per unit) mounted for clear, uniform illumination across the work area.

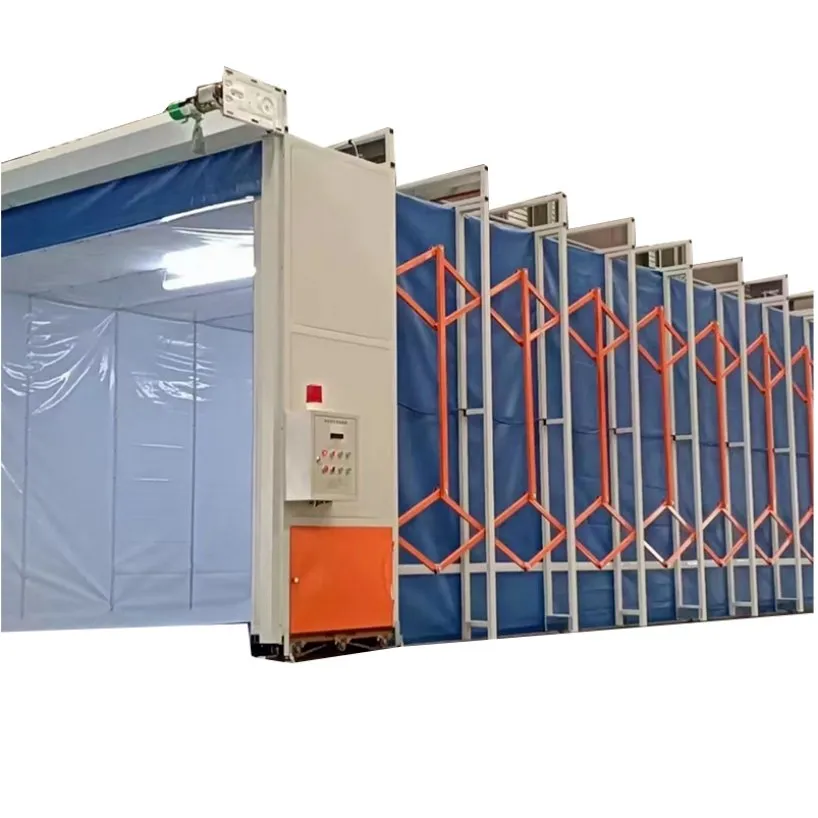

    Electric Control System Features a Delixi-equipped control box, electric rolling shutter door, and spray-molding for automated, safe operation.
    Filtration & Purification Tail-end dry absorption and filtration system captures overspray effectively, keeping the work environment clean and compliant with safety standards.

    Applications and Industries

    Automotive Repair Shops: Suitable for painting cars, trucks, and vans.

    Industrial Equipment: Ideal for machinery, metal frames, and custom parts.

    Custom Vehicle Workshops: Perfect for specialty paint finishes and detailed work.

    Fleet Maintenance Centers: Enables efficient painting of multiple vehicles with minimal workspace usage.

    Why Choose Us?

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use (3)

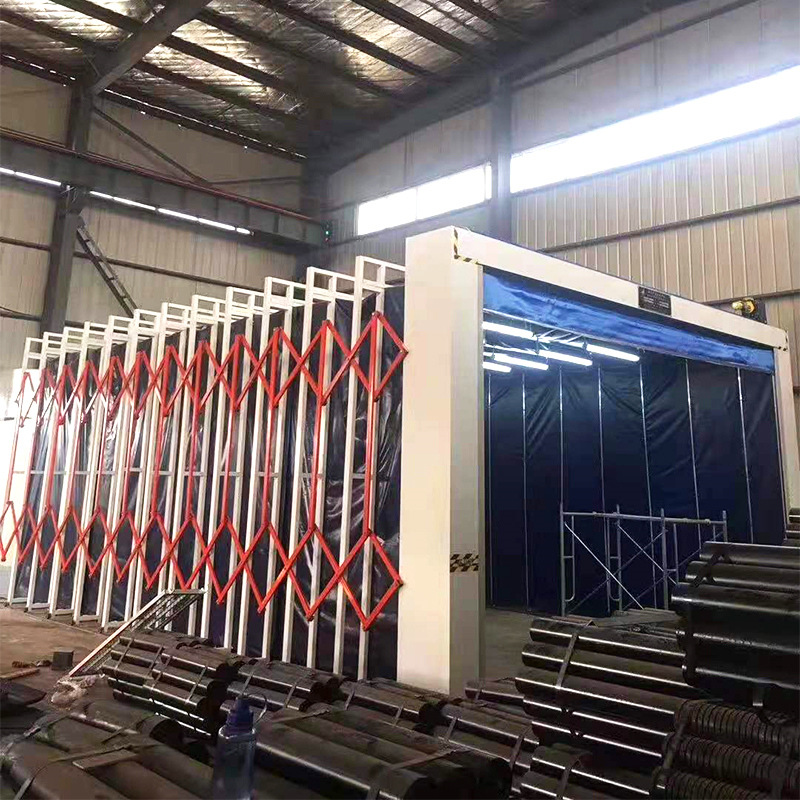

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (1)

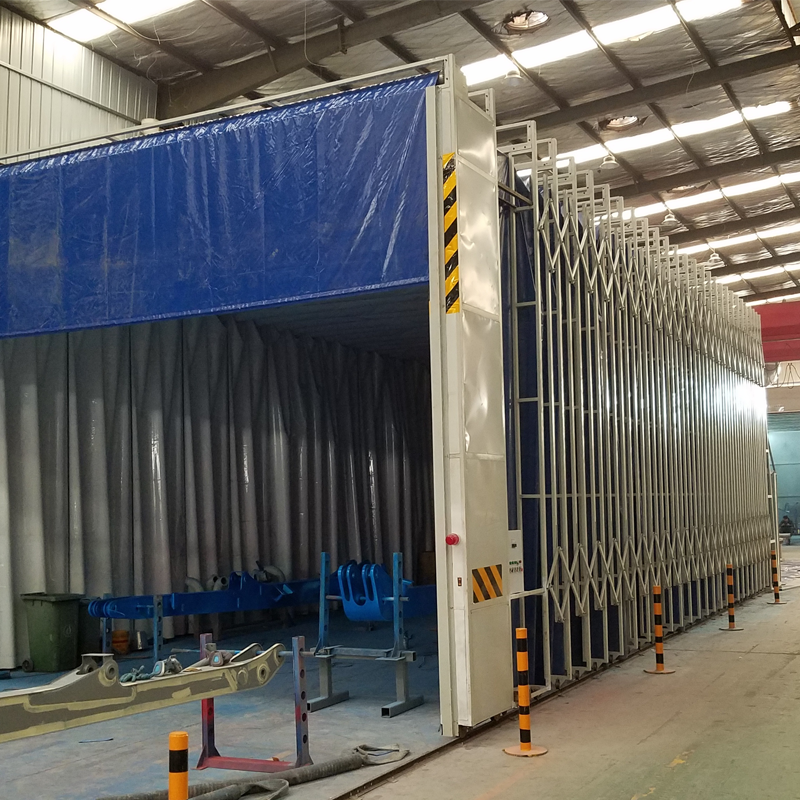

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (2)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use (2)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use (3)

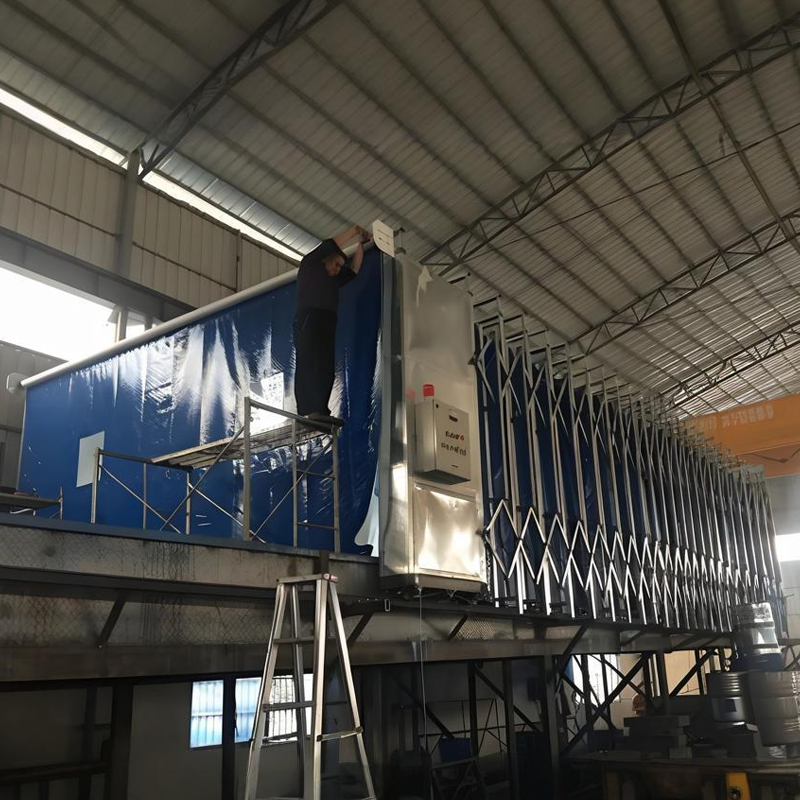

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (5)

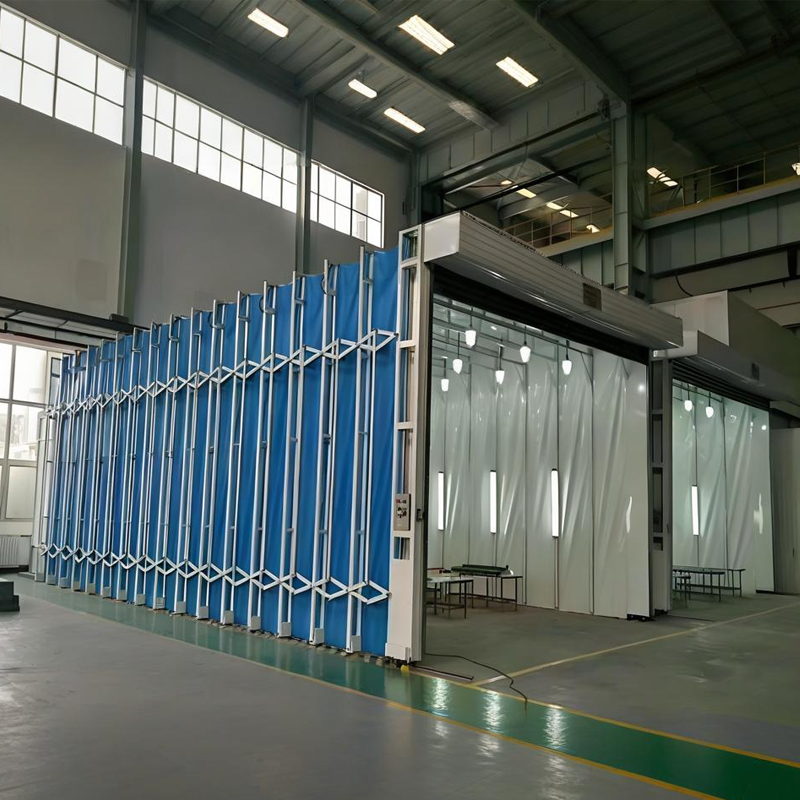

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (6)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (7)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (8)

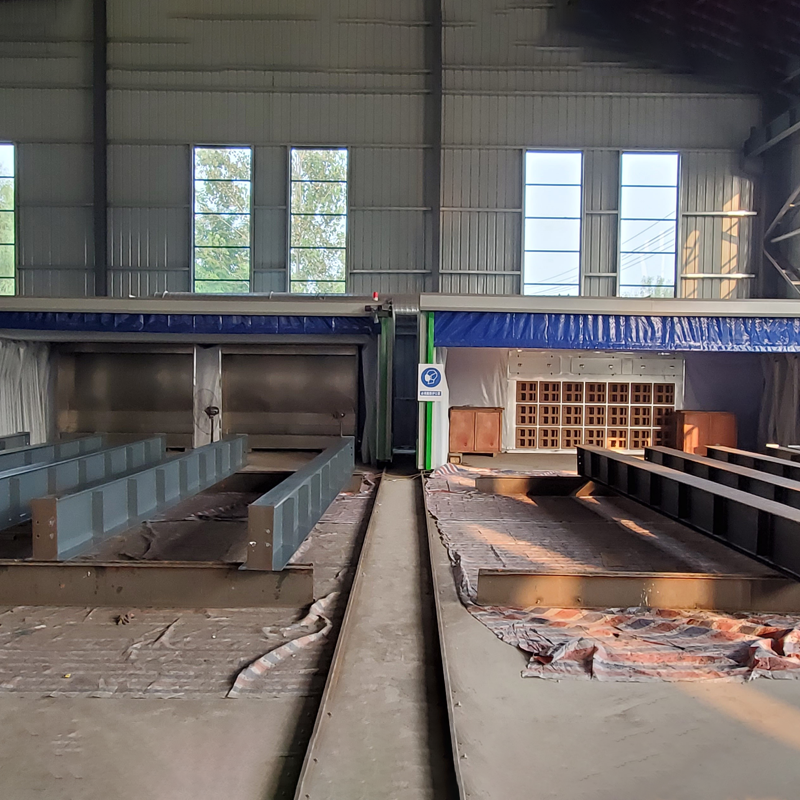

    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (9)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (1)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (2)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use-1 (3)
    Space-Saving Retractable Paint Booth for Automotive and Industrial Use (1)
    0102030405060708091011121314

    Product Case

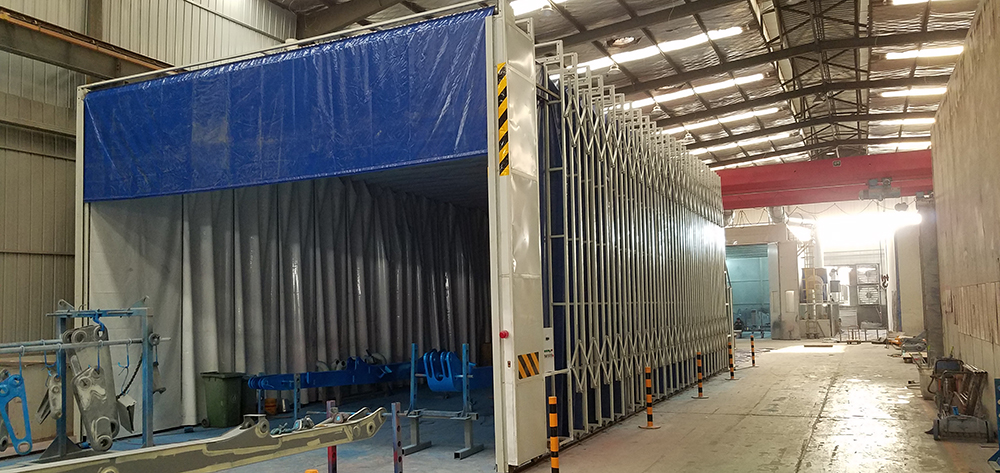

    Retractable Room (1)

    Jimo - Jiuhe Heavy Industry

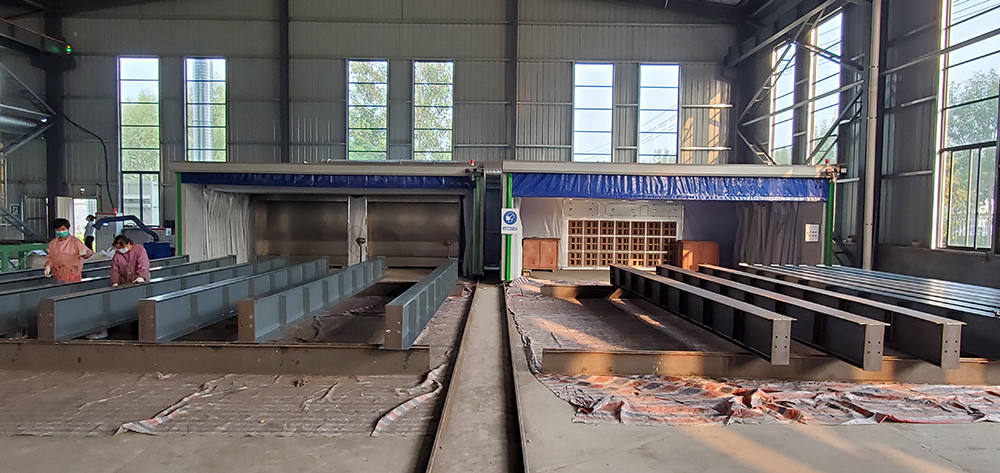

    Retractable Room (2)

    Jining - Steel Structure painting

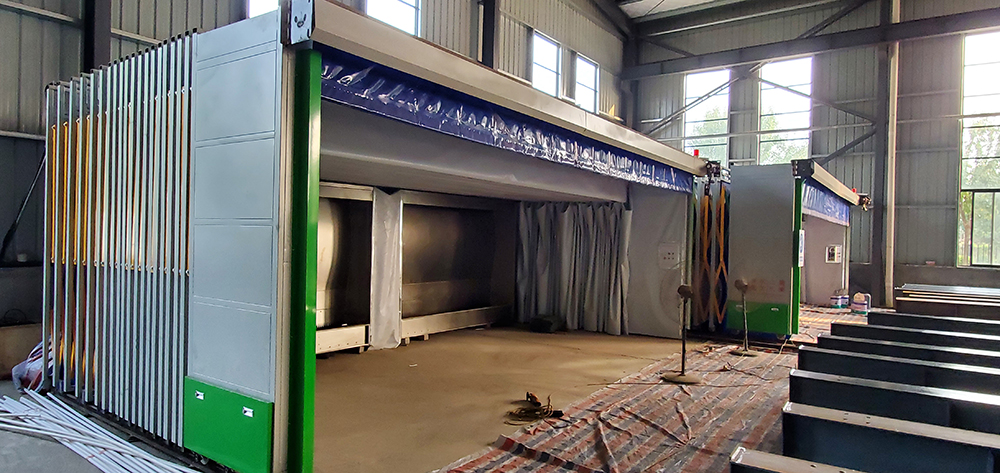

    Retractable Room (3)

    Jining - Steel Structure painting

    Engineering case

    Engineering case (1)
    Engineering case (2)
    Engineering case (3)
    Engineering case (8)
    Engineering case (9)
    Engineering case (10)
    Engineering case (1)
    Engineering case (2)
    Engineering case (3)
    Engineering case (4)
    Engineering case (5)
    Engineering case (6)
    Engineering case (7)
    Engineering case (8)
    Engineering case (9)
    Engineering case (10)
    Engineering case (1)
    Engineering case (2)
    Engineering case (3)
    Engineering case (8)
    Engineering case (9)
    Engineering case (10)
    01020304050607080910111213141516171819202122

    Workshop Showcase

    Production Equipment (6)

    Production Equipment

    Production Equipment (7)

    Production Equipment

    Production Equipment (8)

    Production Equipment

    Production Equipment (9)

    Production Equipment

    Workshop (1)

    Workshop

    Workshop (2)

    Workshop

    Workshop (3)

    Workshop

    Workshop (4)

    Workshop

    Workshop (5)

    Workshop

    Workshop (6)

    Workshop

    Workshop (7)

    Workshop

    Production Equipment (1)

    Production Equipment

    Production Equipment (2)

    Production Equipment

    Production Equipment (3)

    Production Equipment

    Production Equipment (4)

    Production Equipment

    Production Equipment (5)

    Production Equipment

    Production Equipment (6)

    Production Equipment

    Production Equipment (7)

    Production Equipment

    Production Equipment (8)

    Production Equipment

    Production Equipment (9)

    Production Equipment

    Workshop (1)

    Workshop

    Workshop (2)

    Workshop

    Workshop (3)

    Workshop

    Workshop (4)

    Workshop

    010203040506070809101112131415161718192021222324

    Certificate

    ce

    ce

    ISO9001 （2028）

    ISO9001 （2028）

    ISO14001

    ISO14001

    ISO45001

    ISO45001

    Frequently Asked Questions (FAQ)

    • Q1: Can this retractable paint booth fit into smaller workshops?

      A1: Yes, its retractable design allows it to adapt to limited spaces, providing flexibility without sacrificing performance.

    • Q2: How is air quality managed in the booth?

    • Q3: Is this booth compatible with different types of paint?

    • Q4: How is the booth operated?
