Industrial Spray Booths for High-Efficiency Painting and Coating Applications

Industrial spray booths are essential equipment for modern manufacturing and automotive facilities, designed to provide a controlled environment for spraying, drying, and curing coatings. With superior insulation, advanced ventilation, and precise temperature control, these booths enhance coating quality, improve efficiency, and ensure operator safety.

    +86 139 6400 6968 xinaoxingongsi@163.com Contact Us

    Key Features and Specifications

    Wall Panels

    The booth walls are constructed with high-quality double-layer EPS insulation panels covered with colorful steel skin. Each panel has a thickness of 75mm with 0.45mm steel, ensuring excellent thermal insulation, anti-flame properties, and durability. The roof panel is galvanized steel, providing long-lasting performance under industrial conditions.
    Ventilation System
    Inlet Fans: 4 double-intake centrifugal fans (2 groups, 2 fans per group) with 5.5kW each, delivering an airflow capacity of 16,000 m³/h per set.
    Outlet Fans: 2 double-intake centrifugal fans, 7.5kW each, with an airflow capacity of 20,000 m³/h per set.
    Air Duct and Cabinet: Intake air is set from the side upper section using a powder-coated steel frame cabinet and high-quality galvanized steel exhaust ducts. Elbows and ducts are engineered to maintain an airflow speed of 0.4 m/s with a ventilation rate of 320 times per hour.
    Heating System: Equipped with two G10 diesel burners, each with a heating capacity of 200,000 kcal/h. Burners are controlled via 10N electric dampers or pneumatic systems, allowing the booth to maintain a stable working temperature of 80°C for efficient drying and curing.
    Lighting and Visibility: The booth features 48 high-efficiency LED lights (12 units x 4 pieces, 36W each) with a powder-coated light box, providing internal illumination of 850–900 lux for clear visibility during painting operations.
    Filtration System
    Primary Filter: Captures particles larger than 10µm with an efficiency of over 83%.
    Ceiling Filter: Captures particles larger than 4µm with a filtering rate exceeding 98%, ensuring a clean painting environment and flawless finish.
    Structural Components: The booth includes galvanized square pipe beams and plenum, powder-coated for durability. The roof filter support frame is also galvanized and powder-coated.
    Intelligent Control System: Fully integrated control system allows precise management of lighting, spraying, heating, baking, temperature control, and timing, with an emergency stop function for added safety.

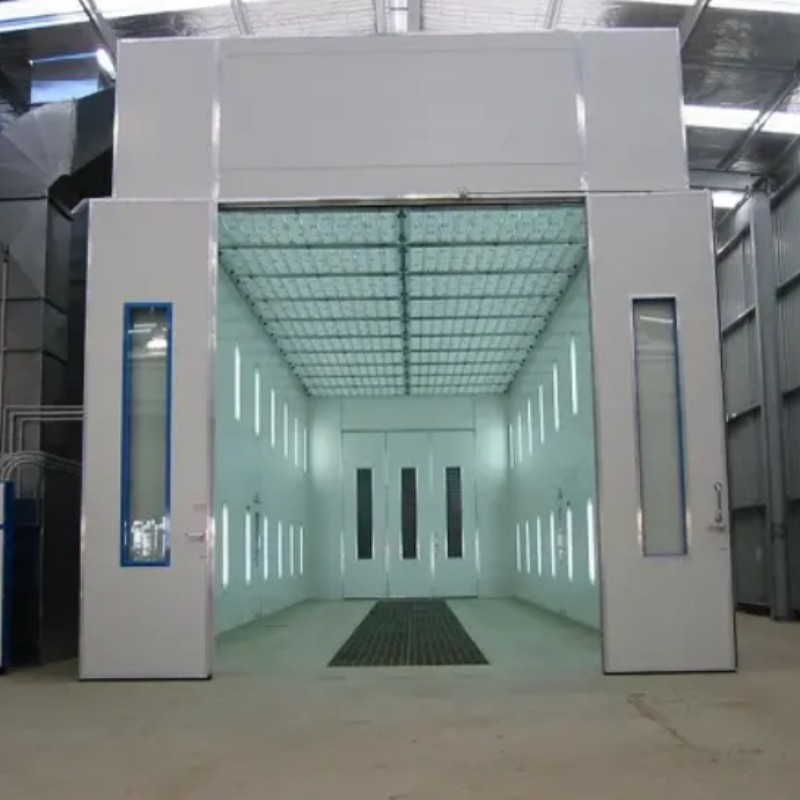

    High-Performance Industrial Spray Booth for Precision Coating Applications (12)

    Applications and Suitable Industries

    Industrial spray booths are widely used across automotive manufacturing, furniture production, metal fabrication, and other industrial coating applications. They are ideal for car body painting, machinery coating, and high-quality finishing in factories and workshops where consistent results and high throughput are essential.

    Why Choose Us?

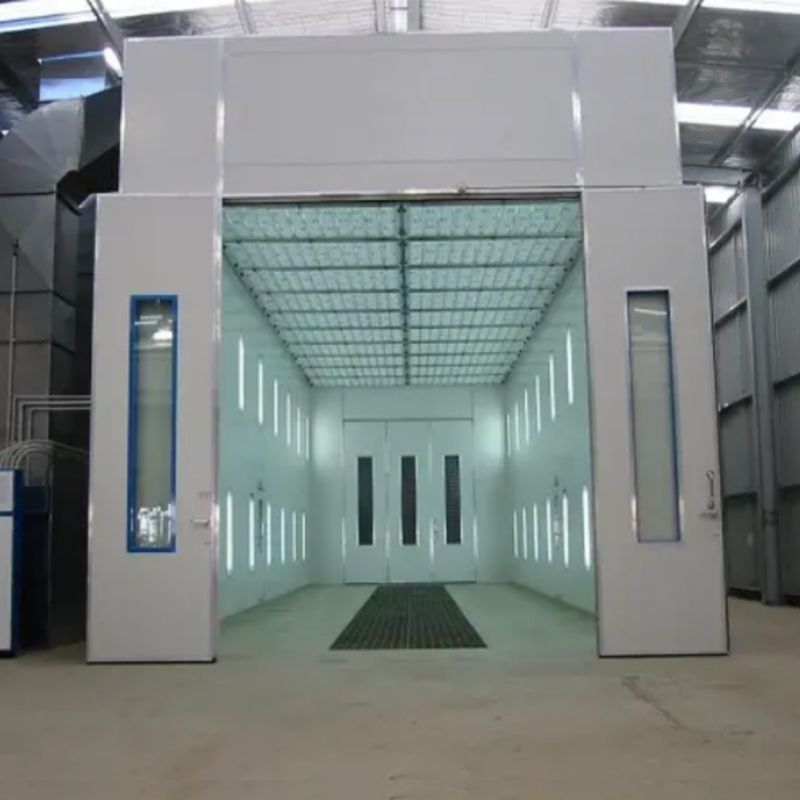

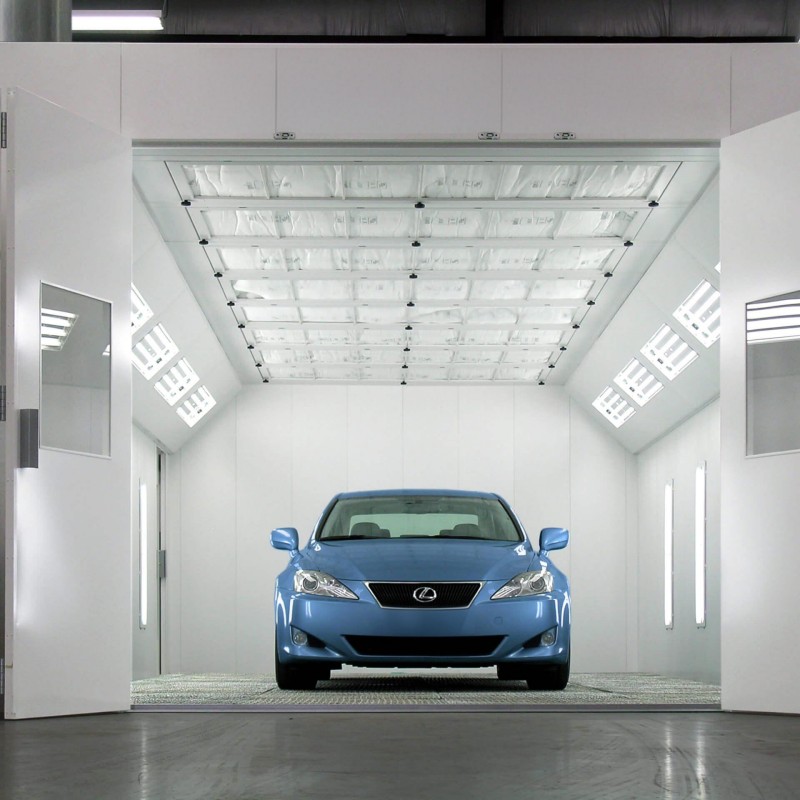

    High-Performance Industrial Spray Booth for Precision Coating Applications (7)

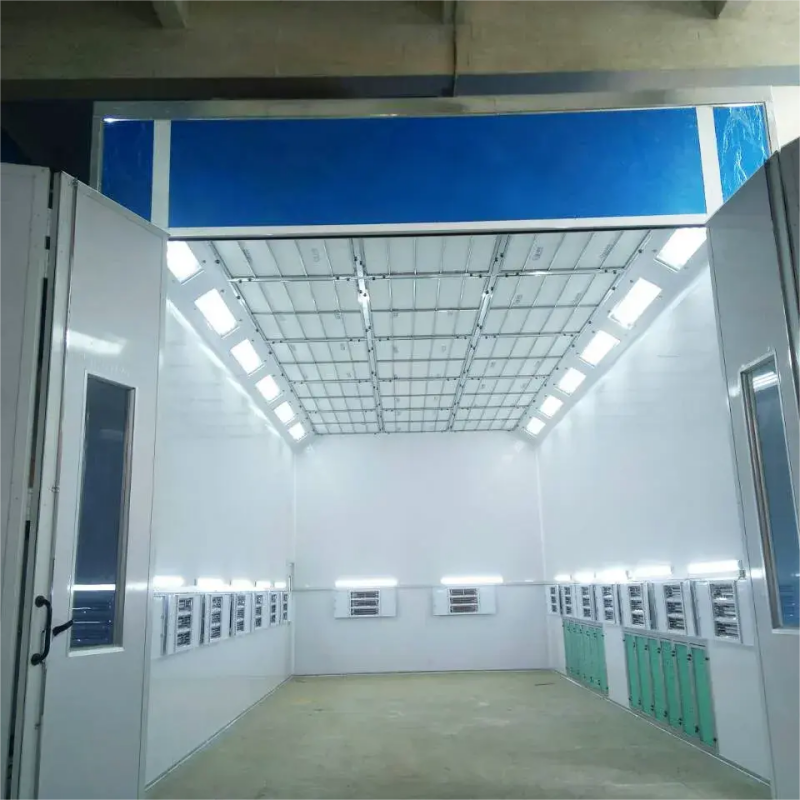

    High-Performance Industrial Spray Booth for Precision Coating Applications (1)
    High-Performance Industrial Spray Booth for Precision Coating Applications (1)

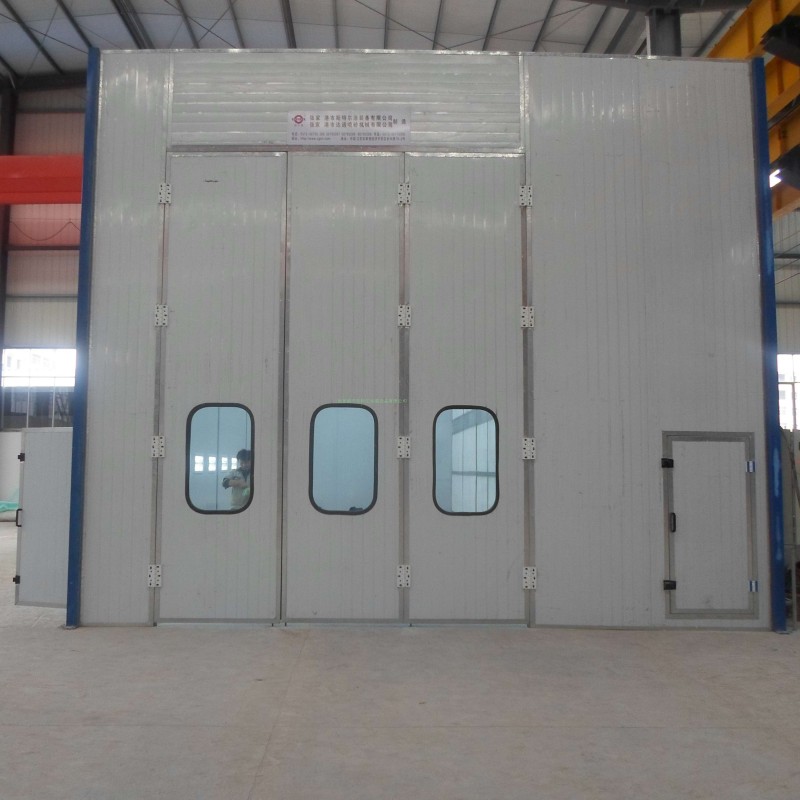

    High-Performance Industrial Spray Booth for Precision Coating Applications (9)

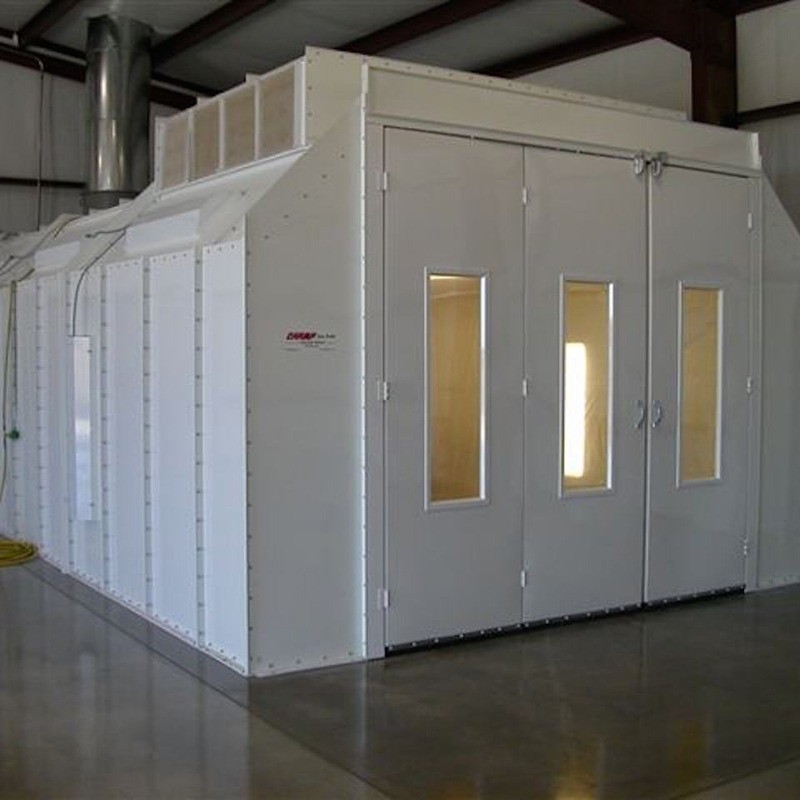

    High-Performance Industrial Spray Booth for Precision Coating Applications (2)

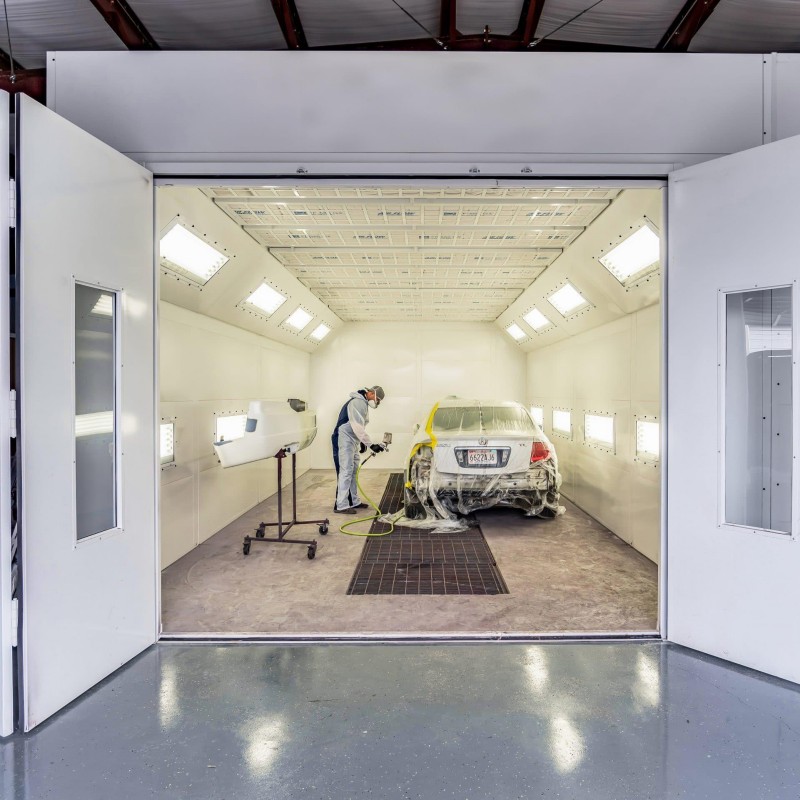

    High-Performance Industrial Spray Booth for Precision Coating Applications (11)
    High-Performance Industrial Spray Booth for Precision Coating Applications (12)

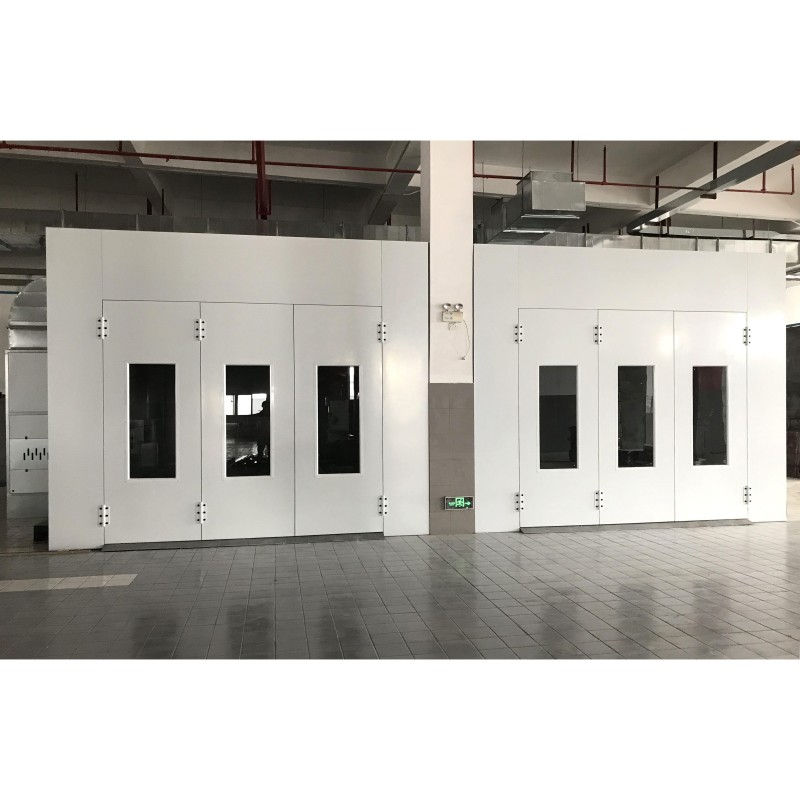

    High-Performance Industrial Spray Booth for Precision Coating Applications (13)

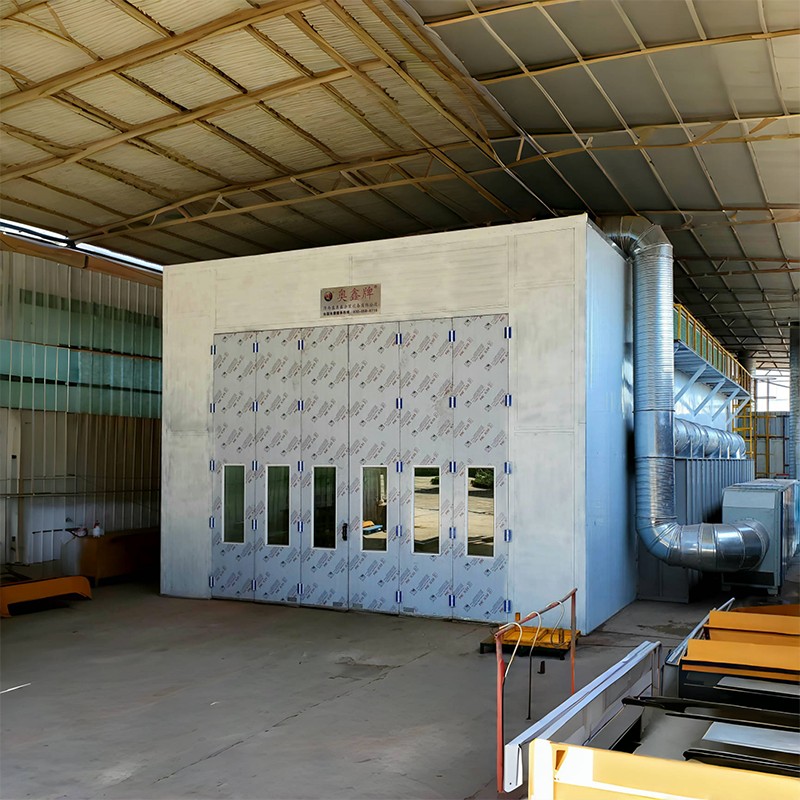

    High-Performance Industrial Spray Booth for Precision Coating Applications (4)

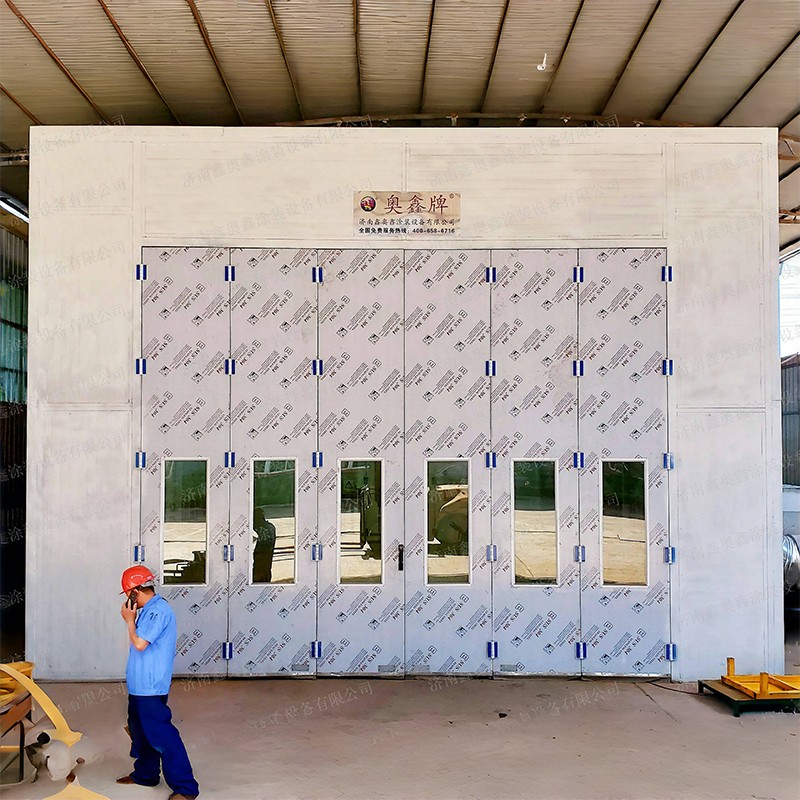

    High-Performance Industrial Spray Booth for Precision Coating Applications (5)

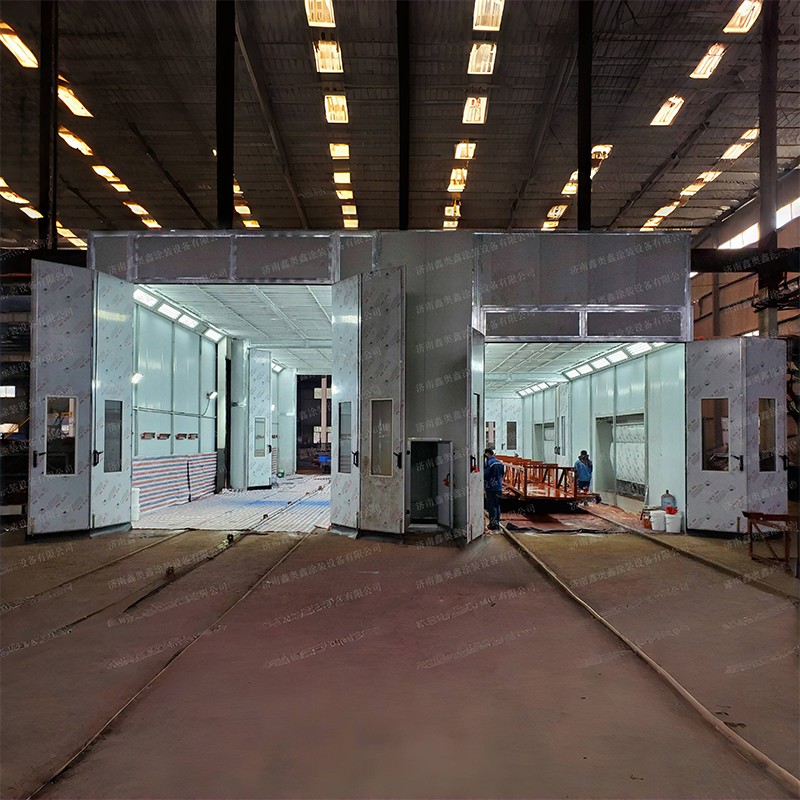

    High-Performance Industrial Spray Booth for Precision Coating Applications (6)
    0102030405060708091011

    Product Case

    Industrial Paint Baking Room (1)

    Jimo - Jiuhe Heavy Industry 1

    Industrial Paint Baking Room (2)

    Jimo - Jiuhe Heavy Industry 2

    Industrial Paint Baking Room (3)

    Qihe - Tianyu Machinery 1

    Qihe - Tianyu Machinery 2

    Qihe - Tianyu Machinery 2

    Industrial Paint Baking Room (5)

    Qingdao - Sol Automobile

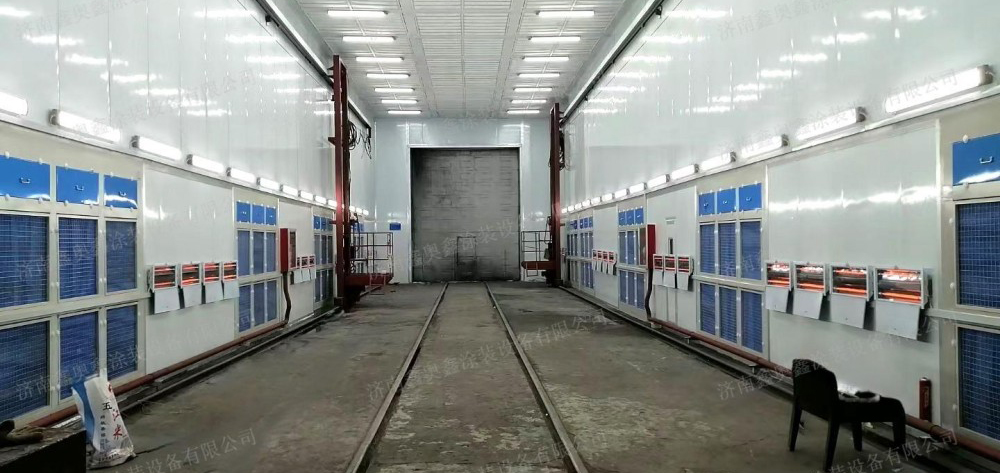

    Xinjiang - Urumqi Locomotive Depot
