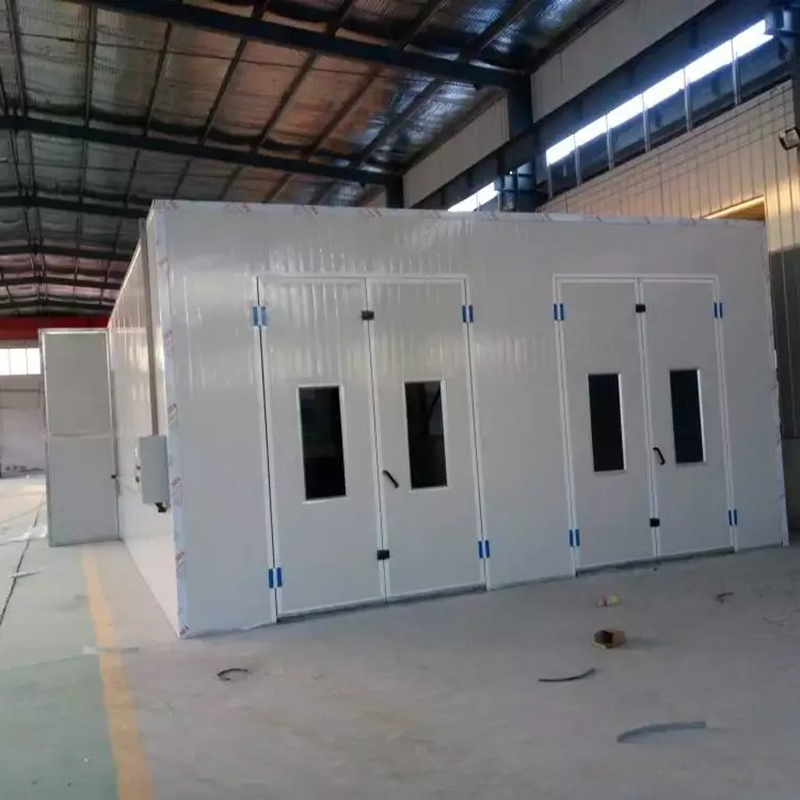

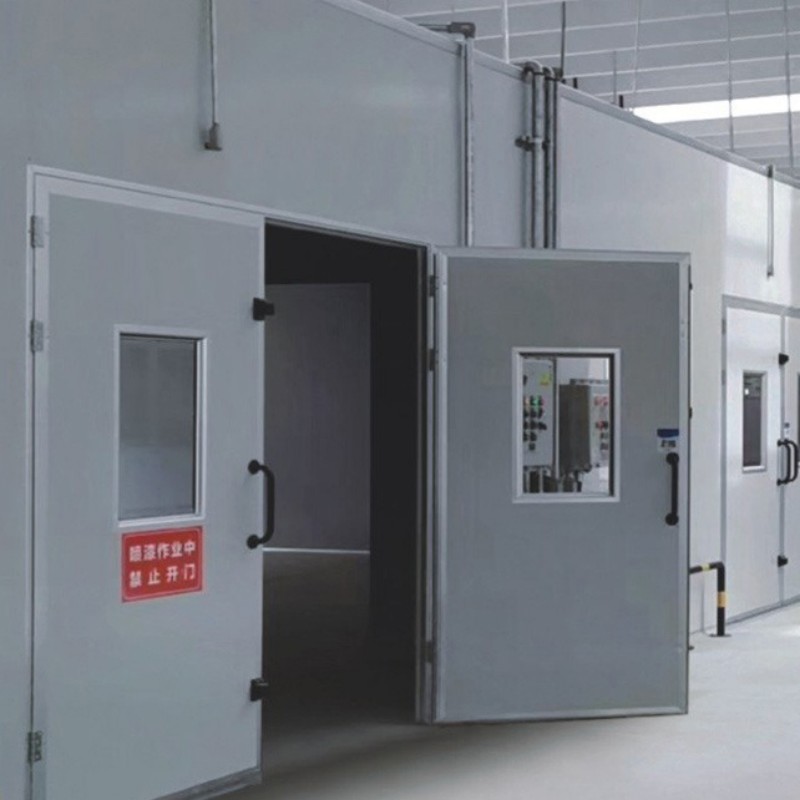

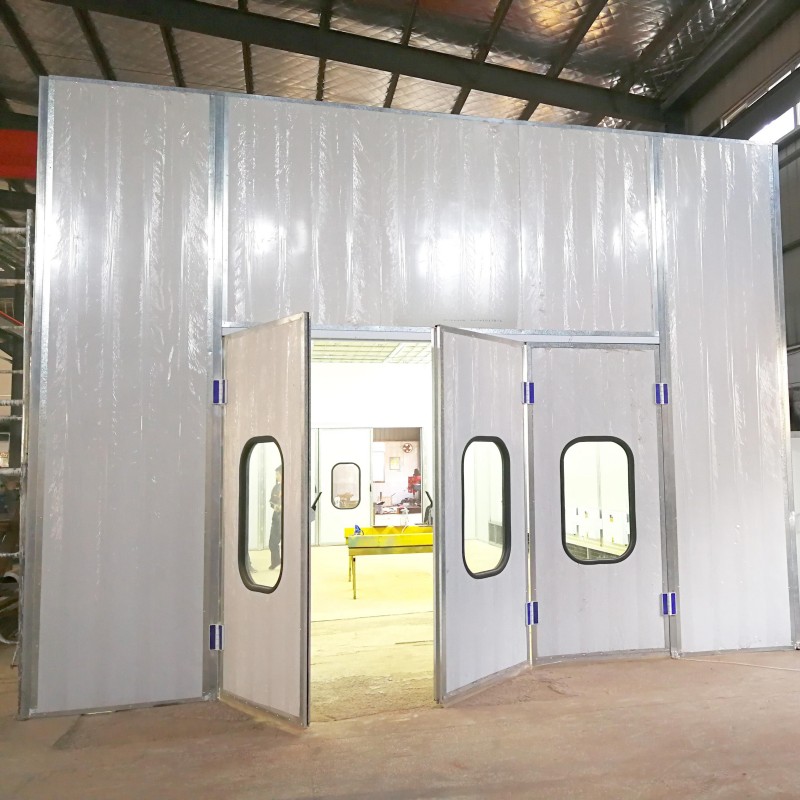

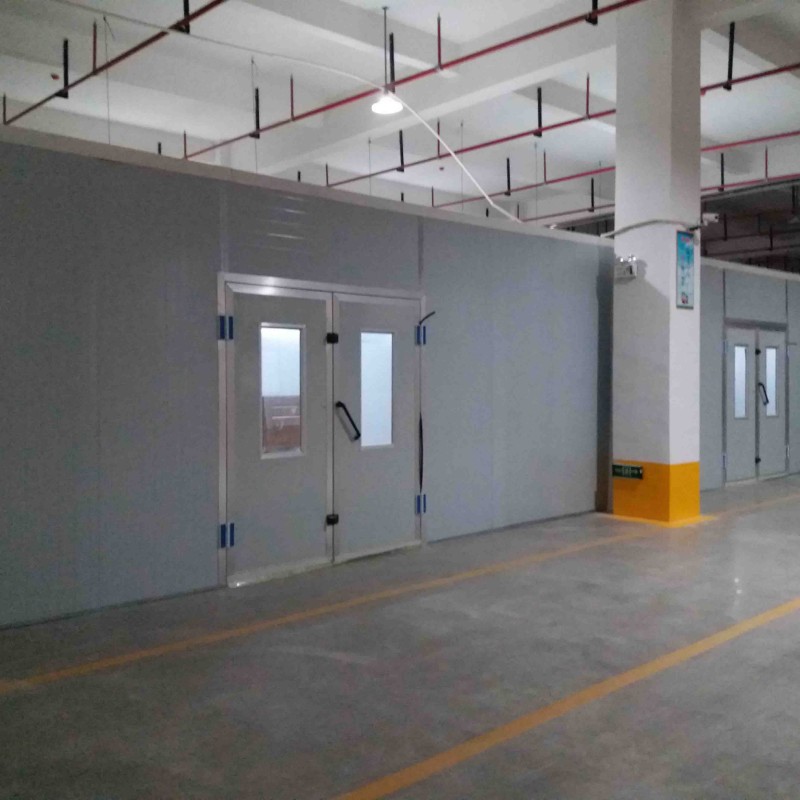

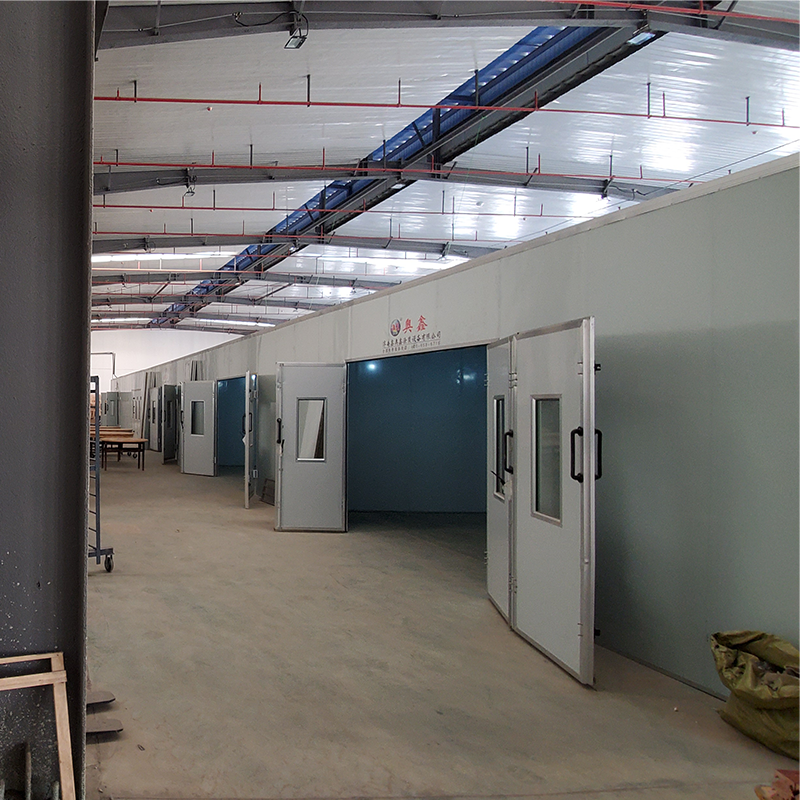

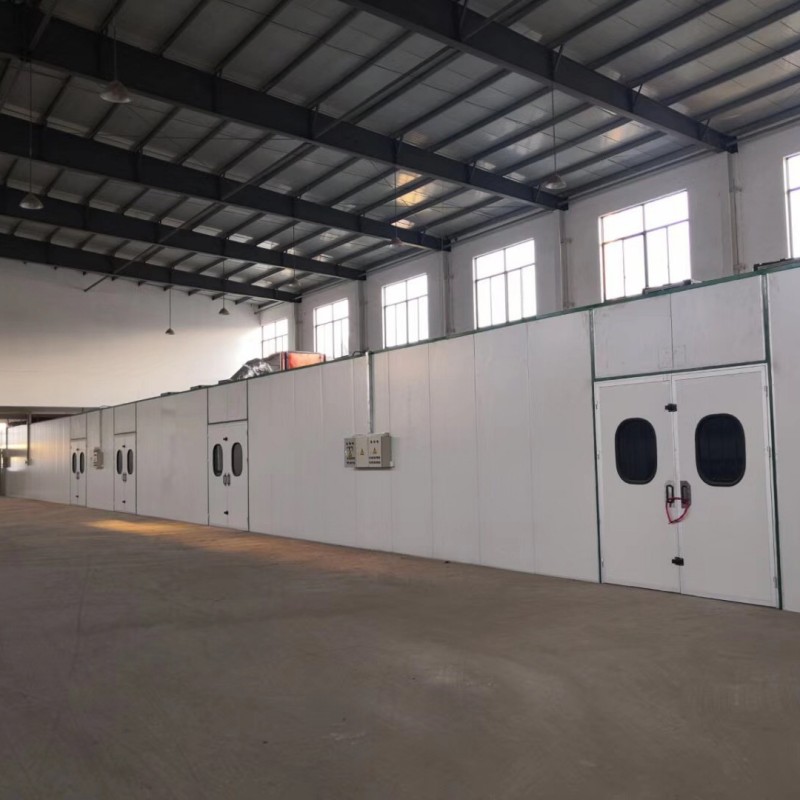

Precision Industrial Spray Booth for Superior Coating Performance

● Durable Wall and Roof Panels

Constructed with double-layer EPS insulation panels, 75mm thick with 0.45mm steel skin for superior heat retention and fire resistance.

Roof panels use galvanized steel for long-term structural integrity.

● Efficient Ventilation System

Intake: Four double-intake centrifugal fans (2 groups × 2 units, 5.5kW each) with 16,000 m³/h airflow per set.

Exhaust: Two double-intake centrifugal fans, 7.5kW each, providing 20,000 m³/h airflow per set.

Side-upper air intake with powder-coated steel ducts ensures stable airflow (0.4 m/s) and 320 air changes per hour.

● Advanced Heating System

Two G10 diesel burners, 200,000 kcal/h each, with electric/pneumatic dampers for precise temperature management.

Maintain stable drying and curing at 80°C.

● Illumination

48 high-efficiency LED lights (12 units × 4 pieces, 36W each), providing 850–900 lux for accurate painting work.

● Filtration System

Primary Filter: Captures particles >10µm, 83% efficiency.

Ceiling Filter: Captures particles >4µm, 98% efficiency, ensuring a clean workspace and superior finish.

● Intelligent Control System

Centralized control over lighting, heating, ventilation, spraying, baking, temperature monitoring, and emergency stops.

Ensures safety and precise operation.

● Automotive Industry: Vehicle refinishing, bodywork coating, and repair shops.

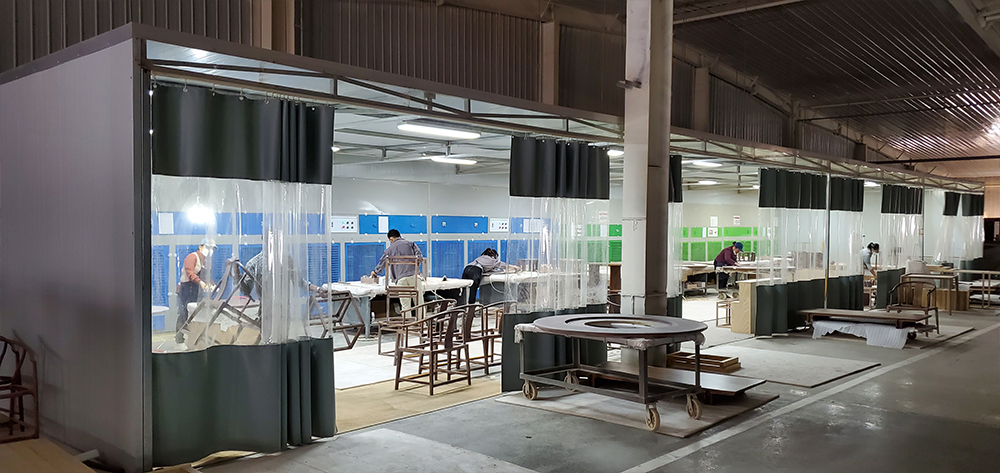

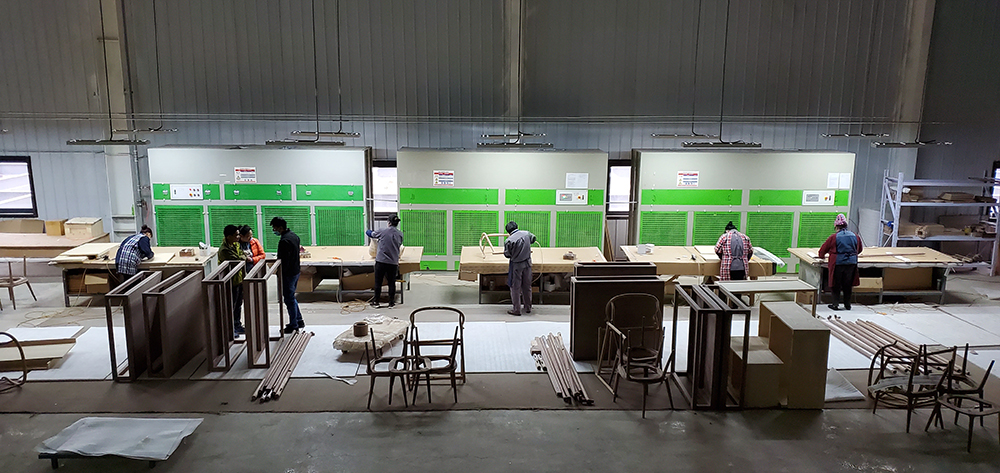

● Furniture Manufacturing: Precise surface coating for durability and aesthetics.

● Metal Fabrication: Protective and decorative coatings for industrial components.

● Large-Scale Production: Factories requiring consistent, high-quality finishes across multiple units.
